Panasonic PT-RZ770BU 7200-Lumen WUXGA DLP™ Projector

Availability: In stock

Panasonic PT-RZ770BU 7200-Lumen WUXGA DLP™ Projector with 1.7 to 2.4:1 Lens

Enjoy bright images in most settings with the black Panasonic PT-RZ770BU 7200-Lumen WUXGA DLP Projector. Its 7200 lumens of brightness and 10,000:1 dynamic contrast ratio will work together to overcome light in most rooms and provide detail in dark areas of the image. It sports a 1920 x 1200 WUXGA native resolution for viewing detailed video, pictures, or data. The 1.7 to 2.4:1 throw ratio offers a range of throw distances for focused images, and the projector supports a variety of optional interchangeable lenses to offer various throw ratio choices.

Share:

This product is currently out of stock and unavailable.

Compare

Panasonic PT-RZ770BU 7200-Lumen WUXGA DLP Projector with 1.7 to 2.4:1 Lens

Image result for PT-RZ770

Enjoy bright images in most settings with the black Panasonic PT-RZ770BU 7200-Lumen WUXGA DLP Projector. Its 7200 lumens of brightness and 10,000:1 dynamic contrast ratio will work together to overcome light in most rooms and provide detail in dark areas of the image. It sports a 1920 x 1200 WUXGA native resolution for viewing detailed video, pictures, or data. The 1.7 to 2.4:1 throw ratio offers a range of throw distances for focused images, and the projector supports a variety of optional interchangeable lenses to offer various throw ratio choices.

The PT-RZ770BU features HDMI, VGA, 3G-SDI, DVI-D, and HDBaseT inputs to connect to nearly any device. The projector is controllable via the included wireless/wired remote control, HDBaseT, or RS-232 with various control software options.

With Panasonic’s award-winning SOLID SHINE Laser drive at its heart, together with the latest DLP™ imaging technology, the PT-RZ770/660 Series is primed to deliver unfailingly brilliant pictures in a broad range of venues and applications. Set brightness according to ambient conditions and extend maintenance-free life further, with minimal degradation in picture brightness and realism, or exploit a raft of features that make rigging, rental, and staging easier and more cost effective. A lightweight heavy-hitter with stamina to last, it’s the logical choice for educated pro users.

Wide-Spectrum Color with Up to 7,200 lm (Center) Brightness

Wide-Spectrum Color with Up to 7,200 lm (Center)* Brightness

With next-generation DLP™ technology delivering high-resolution detail and dual laser modules outputting up to 7,200 lm (Center) of brightness, Quartet Color Harmonizer to reduce energy loss from the light source, and robust heat-resistant phosphor wheel, Panasonic PT-RZ770/RZ660 Series’ SOLID SHINE Laser system produces scintillating images with unfailing reliability.

Outstanding White Balance and Color Reproduction

Outstanding White Balance and Color Reproduction

The Quartet Color Harmonizer wheel mechanism captures a wider color space than comparable projectors, which allows white to be reproduced realistically on screen. Some conventional projectors can’t achieve an accurate white balance, so images can appear with a distracting greenish tint. Not the case with the Panasonic PT-RZ770/RZ660 Series SOLID SHINE Laser projectors.

Maintain Image Quality for Longer

Maintain Image Quality for Longer

Thanks to the long-lasting dual solid-state laser modules, there are no lamps to replace, and image color/brightness degrades very gradually in consistent, linear fashion. As well as reducing maintenance hassle, out-of-the-box picture quality is preserved longer.

Dependable 24/7 Operation with Failover Protection

Dependable 24/7 Operation with Failover Protection

Dual Drive Laser Optical Engine groups laser diodes into two discrete modules. A failsafe redundancy circuit works to minimize brightness- and color-uniformity loss should a laser diode fail, making PT-RZ770/RZ660 Series ideal for mission-critical applications. Further, brightness decreases more gradually and consistently than lamp-based projectors over a 20,000-hour* maintenance-free projection period.

Stable Operation in High Temperatures

The PT-RZ770/RZ660 Series has a unique liquid-cooling system for the light source that suppresses temperature rises, enhancing projection stability in ambient temperatures of up to 45°C (113°F). This cooling system also contributes to the reduction of operational noise to just 35 dB for distraction-free presentations, and is hermetically sealed, so there’s no need to periodically replenish the coolant.

Laser Protection for Peace of Mind

Panasonic laser light is no more harmful to eyesight than a regular lamp-based projector, as a diffusing lens reduces beam energy concentration. Accidental direct exposure will not result in damage to eyesight.

Dynamic Contrast Function Delivers Better Contrast

Dynamic Contrast Function Delivers Better Contrast

The PT-RZ770/RZ660 Series directly modulates laser power output to achieve high contrast with low power consumption. Digitally controlled frame-by-frame scene-linking modulation ensures highly precise output adjustment, while accurate 10,000:1 contrast is delivered even when bright and dark scenes frequently interchange.

Vivid Images in Bright Environments

Vivid Images in Bright Environments

Panasonic’s premium System Daylight View 3 prevents images from washing out in well-lit environments and enhances brightness perception in multi-projector mapping applications by adjusting sharpness and gamma curves and correcting colors. The result is greater visual impact even in challenging conditions.

Dust-Resistant Airtight Optical Block

Guidelines for Dust Resistance

PT-RZ770/RZ660 Series’ optical block is airtight, ensuring consistent, long-lasting image quality for up to 20,000 hours without maintenance. The optical block design passed stringent testing to assure utmost reliability in environments with up to 0.15 mg of particulate matter per cubic meter (based on American Society of Heating, Refrigerating, and Air-Conditioning Engineers [ASHRAE] and Japanese Building Maintenance Association guidelines). The structure prevents brightness degradation from dust intrusion.

Additional Features
  • Quiet Mode reduces operational noise
  • DICOM Simulation Mode offers X-ray photo reproduction for educational use
  • Rec. 709 Mode for HDTV projection for accurate colors
  • Waveform monitor for simplified calibration
  • Lens-centered design with a wide horizontal/vertical lens shift
  • Shutter effect with fade in/fade out (configurable in half-second intervals from 0.5 to 4 seconds, or to 5-, 7-, or 10-second intervals)
  • Image rotation function
  • On-screen menu rotatable in Portrait mode
  • Scheduling function
  • Long-range 98′ wireless remote control
  • Customizable start-up logo
  • ID assignment for up to 64 units
  • Built-in test pattern
  • RoHS Directive-compliant

Panasonic PT-RZ770BU Specs

Image Display
Display System 0.67″ DLP
Native Chip Resolution 1920 x 1200 (WUXGA)
Max Brightness 7200 Lumens
Uniformity 90%
Aspect Ratio Native: 16:10
Dynamic Contrast Ratio 10,000:1
Color Wheel 4-Segment (R, G, B, Y)
Scan Horizontal: 15 – 100 kHz
Vertical: 24 – 120 Hz
Lens
Focus Manual Powered
Lens f/1.7 – 1.9 (f = 25.6 – 35.7 mm)
Lens Shift Vertical: -16 to 50%
Horizontal: -10 to 30%
Optical Zoom 1.39x
Throw Distance 5.971 – 103.839′ / 1.82 – 31.65 m
Throw Ratio 1.7 – 2.4:1
Projection Size 50 – 600″ / 127.00 – 1524.00 cm
Features
Keystone Correction Vertical: ± 40°
Horizontal: ± 15°
Picture-in-Picture Yes
Ceiling Mountable Yes
Rear Screen Projection Yes
Projection Tilt Option Yes

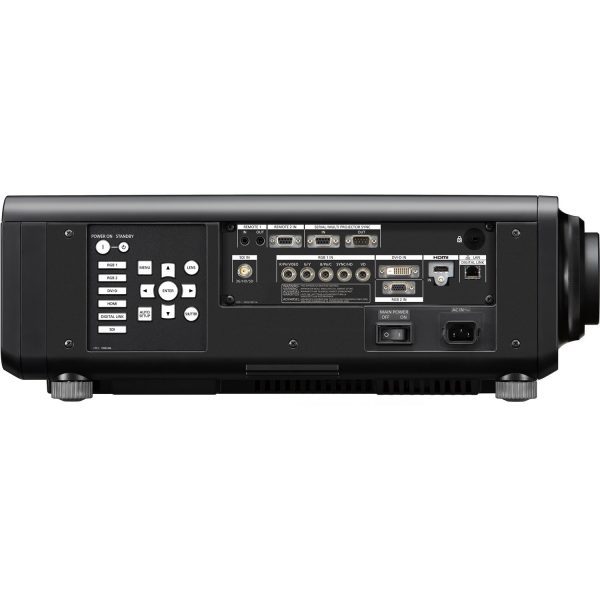

Input/Output Connectors
Inputs/Outputs 1 x HDBaseT (RJ45) Audio, Control, Data, LAN, Remote, Service, Video Input/Output
1 x 3G-SDI (BNC) Video Input
1 x HDMI (HDMI Type-A) Audio, Video Input
1 x DVI-D Video Input
1 x 5BNC Video Input
1 x VGA (DE-15) Video Input
1 x 1/8″ (3.5 mm) Mini Remote Input
1 x 1/8″ (3.5 mm) Mini Remote Output
1 x DE-9 Control Input
1 x DE-9 Control Output
1 x DE-9 Remote Input
Memory Card Slot None
General
Light Source Laser Phosphor
Expected Lamp Life Full Brightness: 20,000 Hours
Low Brightness: 24,000 Hours
Fan Noise Medium Brightness: 35 dB
Security Cable Lock Slot
Security Bar
Menu Languages English
French
German
Italian
Japanese
Korean
Portuguese
Russian
Simplified Chinese
Spanish
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 825 W
Medium Brightness: 593 W
Low Brightness: 508 W
Standby Mode (Lamp Off): 85 W
Operating Temperature 32 to 113°F / 0 to 45°C
Operating Humidity 10 – 80%
Dimensions (W x H x D) 19.6 x 7.9 x 22.9″ / 49.8 x 20.0 x 58.1 cm With included lens
Weight 51.15 lb / 23.2 kg With included lens
Packaging Info
Package Weight 65.0 lb
Box Dimensions (LxWxH) 30.5 x 26.0 x 14.5″
