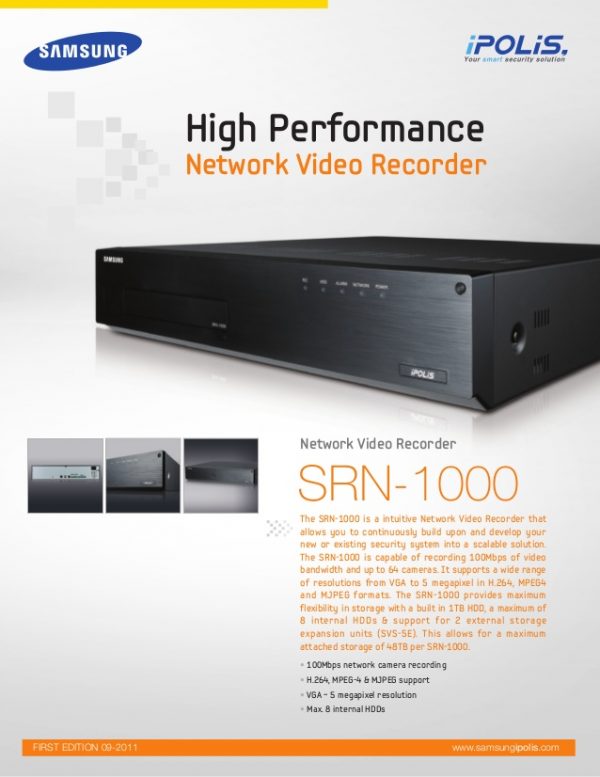

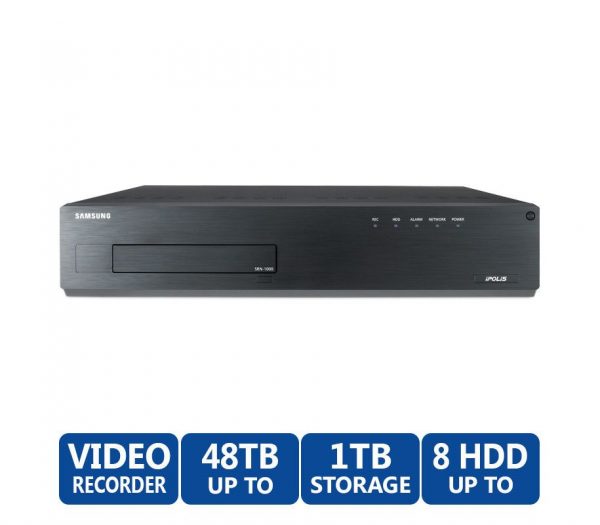

Samsung SRN-1000 NVR IP Network CCTV Video Recorder VGA USB DVD HDMI

Samsung’s intuitive Network Video Recorder allows you to continuously develop your new or existing security system into a scalable solution. The SRN-1000 is capable of recording 100Mbps of video bandwidth, it also supports a  wide range of resolutions from VGA to 5 megapixel in H.264, MPEG4 and MJPEG formats. The SRN-1000 provides maximum flexibility in storage (48TB) with a built-in 1TB HDD, a max of 8 internal HDDs & support for 2 external storage expansion units (SVS-5E).

Performance Operating

• Operating System Embedded : Linux

General

• Environmental Operating Temperature-Humidity : +0°C ~ +40°C (+32°F ~ +104°F)

• Operating Humidity : 20% ~ 85% RH

Display

• Video Inputs : Up to 64 Channel

• Video Resolution : VGA – 5MP

• Protocol : Onvif (Axis, Sony, Panasonic), Samsung

Performance Network

• Bandwidth : 64Mb/s

• Bandwidth Control : Automatic

• Max Remote Users : Search 3 / Live unicast 10 / Live multicast 20

• Protocol Support : TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP, PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, ONVIF

• Monitoring : NET-i Viewer, Webviewer, SST-8000 (SSM)

Performance Search and Playback

• Search Mode : Date/Time, Event

• Playback Speed : Dependent on record speed but up to real time

• Playback Function : Fast forward / Fast backward, Move one step up / Move one step down

Performance

• Maximum Capacity : 24TB internal + 24TB external (using SVS-5E)

Interface Alarm

• Alarm Inputs-Output : Terminal 16 inputs (NO/NC)

• Alarm Output : Terminal 4 outputs (Relay), Terminal 1 reset

• Remote Notification : Notification via e-mail

OTHER

• Other Transmission Speed : Up to 64Mbps

• Other Maximum Capacity : Up to 48TB

• Other Internal HDD : Up to 8 X 6TB SATA HDD’s

• Other eSATA : Two external ports

• Operating Temperature : +0°C ~ +40°C (+32°F ~ +104°F)

• Other Operating Humidity : 20% ~ 85% RH

• Input Voltage : 100 ~ 240V AC ±10%, 50/60Hz, 4 ~ 1.5A

• Dimensions WxHxD : 440.0 x 88.0 x 426.8mm (17.32″ x 3.46″ x 16.80″)

• Weight : Approx. 6.2Kg (13.67 lb) with one HDD

General Mechanical

• Dimension WxHxD : 440.0 x 88.0 x 426.8mm (17.32″ x 3.46″ x 16.80″)

• Weight with hard disk : Approx. 6.2Kg (13.67 lb)

Performance Storage

• Internal HDD : Up to 8 X 6TB SATA HDDs

• Ethernet : RJ-45, Gigabit Ethernet x 2

• External HDD : 2x eSATA ports supporting SVS-5E

• File Format Back up : JPEG, AVI, SEC

Interface Connections

• Interface Connections Ethernet : 2 RJ-45 10/100/1000 Base-T

• eSATA : 2 Ports

• Supported IP Camera : Onvif (Axis, Sony, Panasonic), Samsung

• Supported PTZ Camera : Onvif (Axis, Sony, Panasonic), Samsung

• Interface Connections Protocol Support : TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP, PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, ONVIF

Interface Audio

• Inputs-Output : N/A (Network audio support, up to 64CH)

• Interface Audio Compression : G.711, G.726

Performance Smart Phone

• Smart Phone : Android and iPhone supported with iPolis mobile application

• Smart Phone Transmission Speed : Up to 48Mbps, Unlimited (48M)/2 /1.5 /1Mbps / 800 / 600 / 500 / 400 / 300 / 200 /100 / 50kbps

General Electrical

• Input Voltage-Current : 100 ~ 240V AC ±10%, 50/60Hz, 4 ~ 1.5A

• Power Consumption : Max 45W (154 BTU with 1 HDD), Max 170W (580 BTU with 8 HDD)

Performance Security

• Password Protection : Yes

• Data Authentication : Digital water mark

Performance Recording

• Compression : H.264, MPEG-4, MJPEG

• Recording Bit Rate : 100 Mbps

• Mode : Manual, Schedule (Continuous / Event), Event (Pre / Post)

• Overwrite Modes : Continuous

• Pre-alarm : Up to 30 seconds

• Post-alarm : Up to 6 hours
