Satlink WS-6906 DVB-S FTA Digital Satellite Finder Meter

Rating
Availability: In stock

Special Features Include:

  • View All The Actual FTA Satellite Channels On The Meters Screen.
  • Auto Re-Calibration Due To The Unique Calibration System Built in to the Meter.
  • Each time the meter boots up it automatically calibrates for optimum performance so you can align each install with confidence.
  • All Transponders, Frequency, Symbol Rate, Polarity, and other settings can be modified by the user.
  • View All FTA Satellite Channels On Screen With Sound.
Compare

Satlink WS-6906 Digital Satellite Meter Sat Finder DVB-S FTA C&KU MPEG-2 Satellite Signal Finder

Satlink WS-6906 has a GREEN “LOCK” indicator light to positively ID the satellite you are looking for. WS-6906 Satlink Satellite Signal Meter is simple and convenient for setting and aligning a satellite dish. Using the parameters of satellite, you can set and align a satellite dish quickly. Satlink WS6906 can easily and accurately aim your dish (parabola),View the channel while aiming the dish. It includes high capacity Lithium Battery 3000mAh which works for more than 4 hours after fully charged.

Specification :

System capabilities
Fully DVB compliant
Yes
LNB/Tuner input
Connector
F type,male
Frequency range
950MHz-2150MHz
Signal lever
-65dBm~-25dBm
LNB supply
13/18V,max400mA
LNB switch control
22KHz
DiSEqC
Ver 1.0
Demodulator
Front end
QPSK
Symbol rate
2Mbps~45Mbps
SCPC and MCPC Capable
Yes
Spectral inversion
Auto conversion
System resource
Processor
32bit processor (200MHz)
SDRAM
16Mbyte
FLASH
2Mbyte
EEPROM
8Kbyte
Video decoder
MPEG 2
Main Proflie@Main Level
Data Rate
up to 15M bits/s
Resolution
720 x 576,720 x 480
Video format
PAL/NTSC/SECAM
MPEG Audio
MPEG 1 layer 1&2
Type
Mono
Sampling rates
32,44.1 and 48KHz
Serial data interface
Connector
USB type
Power supply
Li-oN Battery
1950 mA
Supply voltage
12.6Volt
charger
90-240V
Panel connectors
Digital tuner input
F type, male
Physical Specification
Size
9.5×15.5×4.5 (cm)

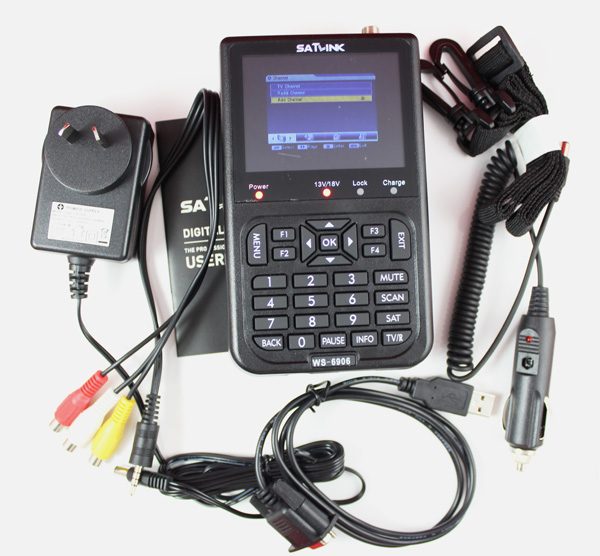

Package includeds :

1 x WS-6906 Satellite Finder
1 x Black Protective Bag
1 x USB Upgrade Cable
1 x Strap
1 x Car Charger
1 x Power Adapter
1 x AV Cable
1 x English User Manual

Details pictures :

Satlink WS-6906 Digital Satellite Meter Sat Finder DVB-S FTA C&KU MPEG-2 Satellite Signal Finder
Satlink WS-6906 Digital Satellite Meter Sat Finder DVB-S FTA C&KU MPEG-2 Satellite Signal Finder
Satlink WS-6906 Digital Satellite Meter Sat Finder DVB-S FTA C&KU MPEG-2 Satellite Signal Finder
Satlink WS-6906 Digital Satellite Meter Sat Finder DVB-S FTA C&KU MPEG-2 Satellite Signal Finder
Satlink WS-6906 Digital Satellite Meter Sat Finder DVB-S FTA C&KU MPEG-2 Satellite Signal Finder
Satlink WS-6906 Digital Satellite Meter Sat Finder DVB-S FTA C&KU MPEG-2 Satellite Signal Finder
Satlink WS-6906 Digital Satellite Meter Sat Finder DVB-S FTA C&KU MPEG-2 Satellite Signal Finder
Satlink WS-6906 Digital Satellite Meter Sat Finder DVB-S FTA C&KU MPEG-2 Satellite Signal Finder
Satlink WS-6906 Digital Satellite Meter Sat Finder DVB-S FTA C&KU MPEG-2 Satellite Signal Finder
Satlink WS-6906 Digital Satellite Meter Sat Finder DVB-S FTA C&KU MPEG-2 Satellite Signal Finder
