Sennheiser ew 135 G3 Wireless Handheld Microphone System
Availability:
In stock
PRODUCT HIGHLIGHTS
- Frequency A (516-558 MHz)
- EM 100 G3 Rackmount Receiver
- SKM 100 G3 With e 835 Capsule
- 1680 Tunable Frequencies Across 42 MHz
- Auto Frequency Scan Finds Open Bands
- 3 Level Squelch To Block Interference
- 20 Banks With 12 Channel Presets Each
- Compander for Clearer Sound
- Auto-Lock Prevents Accidental Adjustment
Sennheiser ew 135 G3 Wireless Handheld Microphone System with e 835 Mic – A (516-558 MHz)
Reliable, robust vocal set fit for every style of music: SKM 100-835 G3 cardioid vocal microphone, EM 100 G3 true diversity receiver with backlit graphic display, MZQ 1 microphone clip.
OVERVIEW
You can depend on a great performance with the ew 135 G3 vocal system. Handheld wireless system featuring the SKM 100 G3 equipped with the famed e835 cardioid dynamic capsule. Includes mic clip and EM100 rack-mountable True Diversity receiver with intuitive scan, and sync functions that ensure trouble-free operation.
FEATURES
- Sturdy metal housing (transmitter and receiver
- 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
- Enhanced frequency bank system with up to 12 compatible frequencies
- High-quality true diversity reception
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Automatic frequency scan feature searches for available frequencies
- Enhanced AF frequency range
- Increased range for audio sensitivity
- Wireless synchronization of transmitters via infrared interface
- User-friendly menu operation with more control options
- Illuminated graphic display (transmitter and receiver)
- Auto-Lock function avoids accidental changing of settings
- HDX compander for crystal-clear sound
- Transmitter feature battery indicatation in 4 steps, also shown on receiver display
- Handheld transmitter with easy-exchangeable microphone modules from evolution series
- Integrated Equalizer and Soundcheck mode
- Contacts for recharging BA 2015 accupack directly in the transmitter
- Wide range of accessories adapts the system to any requirement

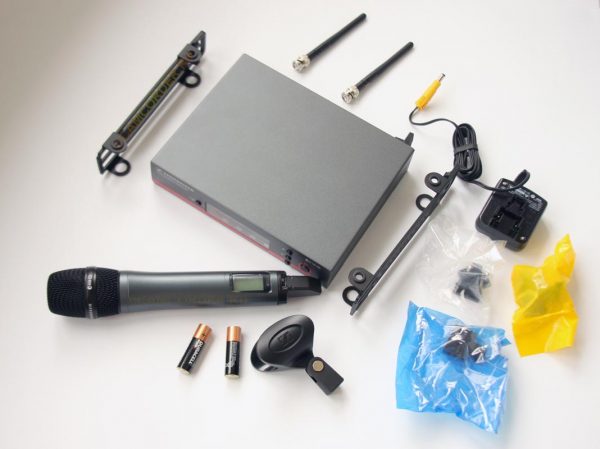

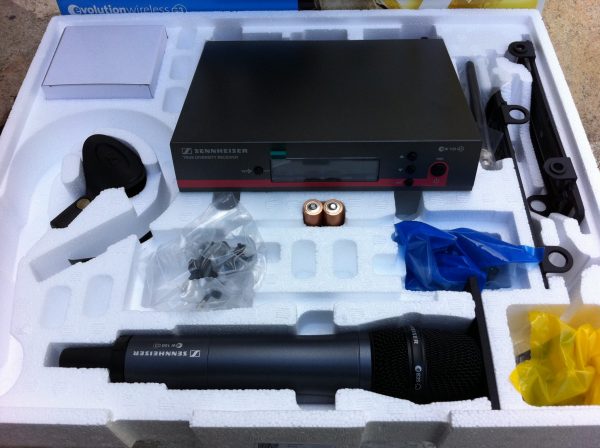

WHAT’S IN THE BOX?
- (1) EM 100 G3 rack-mount receiver
- (1) SKM 100-835 G3 handheld transmitter (dynamic, cardioid)
- (1) MZQ 1 microphone clip
- (1) NT 2 power supply unit
- (2) antennas
- (2) stacking elements
- (2) AA batteries
- Operating instructions
SHAPE THE FUTURE OF AUDIO
TECHNICAL DATA
-
- Frequency range
- 606…648 Mhz
925…937.5 MHz / Korea
823…865 MHz / Power supply unit UK
823…865 MHz / Power supply unit EU/Germany
823…865 MHz / Power supply unit EU
780…822 MHz / Power supply unit UK
780…822 MHz / Power supply unit EU/Germany
780…822 MHz / Power supply unit EU
734…776 MHz / Power supply unit UK
734…776 MHz / Power supply unit US
734…776 MHz / Power supply unit EU
626…668 MHz / Power supply unit UK
626…668 MHz / Power supply unit US
626…668 MHz / Power supply unit EU
566…608 MHz / Power supply unit UK
566…608 MHz / Power supply unit US
566…608 MHz / Power supply unit EU
516…558 MHz / Power supply unit US
516…558 MHz / Power supply unit EU
-
- Dimensions
- Receiver: 82 x 64 x 24 mm
-
- Dimensions
- Transmitter: Ø 50 x 265 mm
-
-
- Frequency response (microphone)
- 80 – 18000 Hz
-
- Compander
- HDX
-
- Audio-XLR connector
- 3,5 mm jack
-
- Presets
- 12
-
- Microphone
- dynamic
-
- Sound pressure level (SPL)
- 154 dB(SPL) max.
-
- THD, total harmonic distortion
- < 0,9 %
-
- Weight
- Receiver: ~ 160 g
-
- Weight
- Transmitter: 450 g
-
- AF sensitivity
- 2,1 mV/Pa
-
- Signal-to-noise ratio
- > 110 dB(A)
-
- RF frequency range
- 516…865 MHz
-
- RF output power
- 30 mW
-
- Transmission/receiving frequencies
- 1680
-
- Switching bandwidth
- 42 MHz
-
- Peak deviation
- +/- 48 kHz
-
- In compliance with
- ETS 300422, ETS 300445, CE, FCC
-
- Operating time
- Transmitter: > 8 h
-
- Antenna connector
- 2 BNC, 50 Ω
-
- Audio output level (balanced)
- XLR : +18 dBu max
-
- Audio output level (unbalanced)
- Jack : +10 dBu max
-
