SilverStone Milo Series ML02 Computer Case
Availability:
In stock
Features
- Designed for MoDT (mobile on desktop) systems
- Ultra-slim profile at 82mm tall
- Sturdy steel chassis suitable for silent operation
- Multilanguage LCD and remote control included (ML02MX only)
- Fanless PSU included
SilverStone Milo Series ML02 SST-ML02B-MXR Computer Case
Milo Series ML02
￭ Designed for MoDT (mobile on desktop) systems
￭ Ultra-slim profile at 82mm tall
￭ Sturdy steel chassis suitable for silent operation
￭ Multilanguage LCD and remote control included (ML02MX only)
￭ Fanless PSU included
|

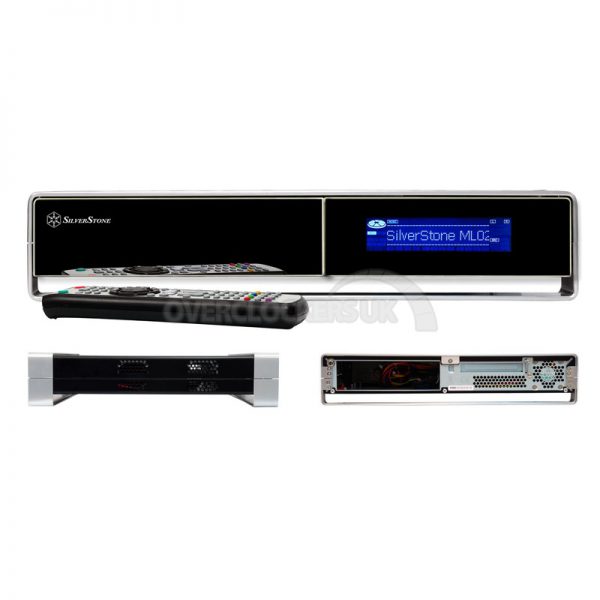

ML02 is what a multimedia MoDT (mobile on desktop) chassis is meant to be. With a height of only 82mm, it is the underlying characteristic of MoDT. ML02 has solid 4.0mm aluminum frames that wrap all around the sturdy SECC body structure. The elegant acrylic front panel with Multilanguage LCD (via remote control) gives a nice overall contrast. With the aid of an intelligent airflow layout design taken from the LC19, this slimming beauty can make a statement in any multimedia environments.
|
| Model No. | SST-ML02B-R (black + card reader) | |
| — | ||
| SST-ML02B-MXR (black + LCD/IR + multimedia + card reader) | ||
| — | ||
| Material | Acrylic front panel, 4.0mm aluminum frames, 0.8mm SECC body | |
| Motherboard | MoDT Micro-ATX, Mini-ITX, DTX | |
| Multimedia | Multimedia software, remote with on/off function, Multilanguage LCD/IR | |
| Drive bay | External | Slim optical x 1 |
| None | ||
| Internal | 3.5″ x 1 or 2.5″ x 1 (vibration dampening) | |
| Cooling system | Front | — |
| Rear | 1 x 50mm exhaust fan, 2200rpm, 19dBA | |
| Side | 3 x 50mm fan slots | |
| Top | Oversized venting holes | |
| Bottom | — | |
| Internal | — | |
| Expansion slot | 1 (includes 1 x PCI riser card and 1 x PCI-Ex16 riser card) | |
| Front I/O port | USB 2.0 x 2 IEEE1394 x 1 audio x 1 MIC x 1 52-in-1 card reader |
|
| Power supply | Fanless 120W DC/DC board & AC adapter | |
| Operating system support | Windows 2000, XP, Vista, 7 | |
| Expansion card | Compatible up to 6.8″ (172mm) long | |
| Limitation of CPU cooler | 37mm | |
| Limitation of PSU | external adapter | |
| Net weight | 3.75kg (ML02B-R) 4kg (ML02B-MXR) |
|
| Dimension | 397 mm (W) x 82 mm (H) x 375 mm (D), 12.2 liters 15.63″ (W) x 3.23″ (H) x 14.76″ (D), 12.2 liters |
|
|
Specifications of Power Supply
|
||||||
|
Max.DC Output
|
120W
|
|||||
|
Load Range
|
||||||
| +3.3V | +5V | +12V | +5VSB | -12V | -5V | |
| Max.(Amps) | 7A | 7A | 8A | 2A | 0.2A | / |
| Peak(Amps) | / | / | / | / | / | / |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A | / |
| Range(%) | ±5% | ±5% | ±5% | ±5% | ±5% | / |
| Remark |
|
＊ Get a SilverStone slim optical drive to complete your ML02 system build：
Slot loading DVD drive – SOD01 Tray loading Blu-ray drive-TOB02   ＊CPU cooler cannot exceed 37mm in height.
＊Equip your ML02 with NT07-PRO for support with MoDT motherboard.
 ＊Equip your ML02 with NT07-AM2 for support with socket AM2 motherboard.
 ＊Equip your ML02 with NT07-775 for support with LGA775 motherboard.
 ＊Card reader support
Smart Media –
SM, SSFDC, SM Ram, XD
Compact Flash –
CF I, CF II, Hitachi Microdrive, IBM Microdrive, Magicstor, HS-CF, Extreme CF, Extreme III CF, Ultra CF, Ultra II CF, Ultra-X CF
Secure Digital-
SD, HS SD, Extreme SD, Extreme III SD, Ultra SD, Ultra II SD, Ultra II SD plus, SD Elite Pro, *Mini-SD, *Micro SD, *T Flash, *C-Flash, SDHC card
Multimedia –
MMCI, MMCII, HS MMC, DV-RS-MMC, *MMC Mobile, *RS MMC, *RS MMC Mobile, *HS RS MMC
Memodery Stick –
MS, MS Magic Gate, MS Pro, MS Pro(MG), Extreme MS Pro, Extreme III MS Pro, HS MS Pro, HS MS MG Pro, MS Select, MS Pro Ultra II, *MS Duo, *MS Duo(MG), *MS Pro Duo, *MS Pro Duo(MG), *HS MS Pro Duo, * HS MS MG Pro Duo, *MS Pro Duo Ultra II, * MS Rom
|
How To Buy
| brands | Silverstone |
|---|---|
| color | Black, Silver |
| Condition |
