Tamron SP 24-70mm F2.8 DI VC USD Lens
Features
- 24-70mm focal length, Minimum focus distance – 0.38m/14.96 inch
- 36-105mm equivalent focal length on APS-C cameras, 38.4-112mm equivalent focal length on Canon APS-C cameras
- F2.8 constant maximum aperture; F22 minimum, Ultrasonic-type AF motor with full-time manual focusing
- Image stabilization, VC (Vibration Compensation), 82mm filters
- Available in Canon EF, Nikon F (FX), Nikon F (DX), Sony Alpha mounts
Tamron SP 24-70mm F2.8 DI VC USD Lens For DSLR Cameras
The world’s first* F/2.8 high-speed standard zoom lens with image stabilization. An all new VC (Vibration Compensation).
This F/2.8 high-speed lens is equipped with a VC (Vibration Compensation) system that provides a stable image that seems virtually pasted onto the viewfinder. Even under low-light conditions, handheld shooting without concern for camera shake is made possible. Tamron’s VC is a three-coil system, whereby three driving coils activate the shake-compensating VC lens group electromagnetically via three ceramic balls. The VC lens elements are held in place only by contact with the ceramic balls, achieving smooth movement with little friction. This provides a stable viewfinder image with excellent tracking performance. Tamron’s o riginal VC image stabilization mechanism utilized a moving magnet system whereby a heavy magnet was positioned near the moving VC lens element. In the new VC unit the positions of the magnet and the coil are reversed, because of this the VC optical lens element is attached to the coil. The new VC mechanism employs a moving coil mechanism with a lightweight coil, and the lighter coil reduces the load on the drive system. Thus, the lighter, more compact new VC unit contr ibutes to the lens’s overall light weight and compact size.
* For high-speed standard zoom lens compatible with full frame size SLR cameras. Current as of April 2012. (Source: Tamron).
All Tamron lenses have high autofocus precision and are designed to capture subjects easily in almost any situation, yet sometimes a photographer wants to fine tune and make adjustments on the fly. The integration of full time manual focus offers just that: instead of fumbling with switches, photographers can switch from autofocus to manual focus by simply adjusting the focus ring. This feature helps the lens produce impressive results even in telephoto situations where the depth of field is narrow.
In the ultrasonic motor, a piezoelectric element arranged in a ring formation generates ultrasonic vibrations in a metallic ring stator, and the vibration energy is used to rotate a metallic ring rotor that is attached to the stator. The rotation energy is in turn transferred from the metallic ring rotor to operate the focus lens. The result is a lens featuring low noise and high-torque, highly responsive, speedy focusing.
Moisture-resistant construction is added to help keep water from penetrating the lens. It’s ideal for outdoor photography.
High-speed lenses are bright, highly sensitive lenses that are able to take in a large amount of light. The high-speed Model A007 makes use of such brightness to deliver a number of different artistic advantages.
As high-speed lenses produce an extensive blurred effect in the areas outside of the focused field, the photographer can greatly blur the foreground and background and thus highlight the main subject in focus, to create an image with realistic depth. In developing this lens, attention was also paid to the shape of the diaphragm blades, which affects the form of the blur. The diaphragm blades maintain a near-perfect circular shape up to two stops down from the fully open state, the position frequently used for creating the blurred effect, adopted the rounded diaphragm to enable exquisite blurred-effect images.
Compared with slower-speed lenses, when high-speed lenses are used images may be taken at shutter speeds that are 1-2 stops faster. Moreover, Tamron’s proprietary VC (Vibration Compensation) mechanism delivers anti-shake benefits of up to 4 shutter speed stops*. The combination of VC with the benefits of the high-speed lens enables hand-held photography even in cases where it normally would not have been possible without using a tripod.
* The compensating effects of VC will vary depending on photographer and photographic conditions.
The SP 24-70mm F/2.8 Di VC USD is one of Tamron’s Di (Digitally Integrated) designs. The Di Series is the mark of Tamron lenses that are format-versatile since they can be used on digital APS-C, full-frame and 35mm SLR cameras.

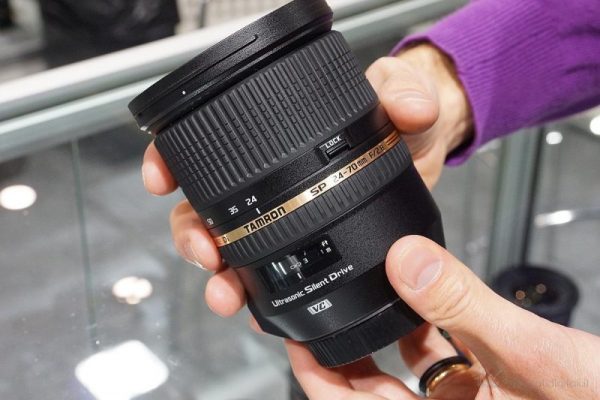

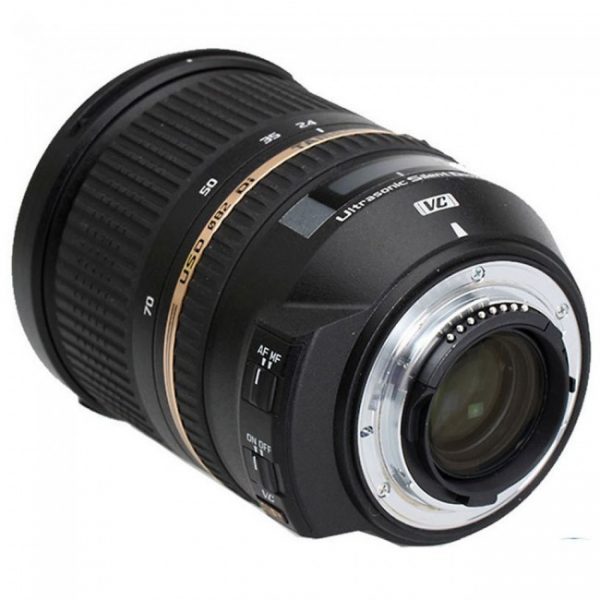

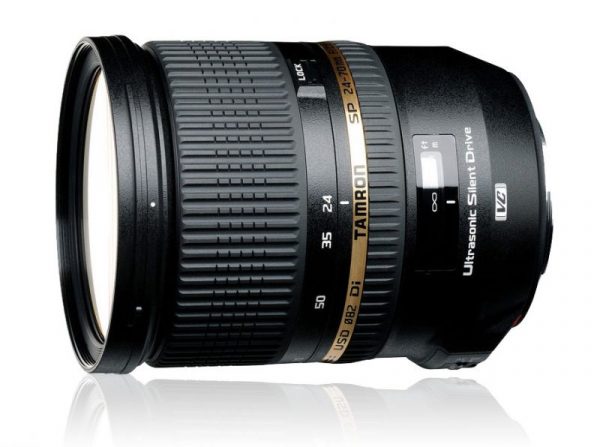

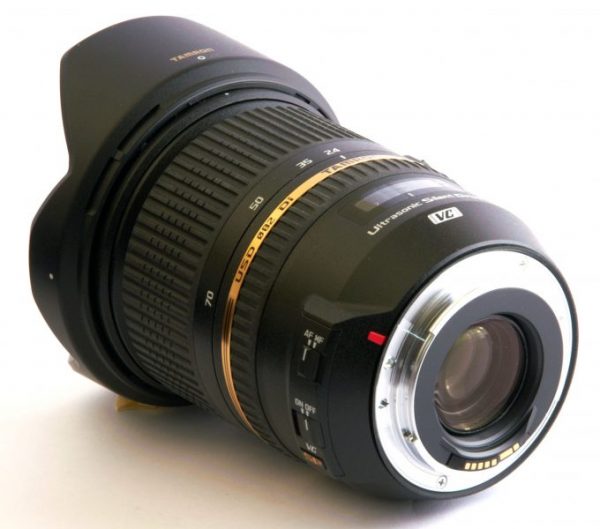

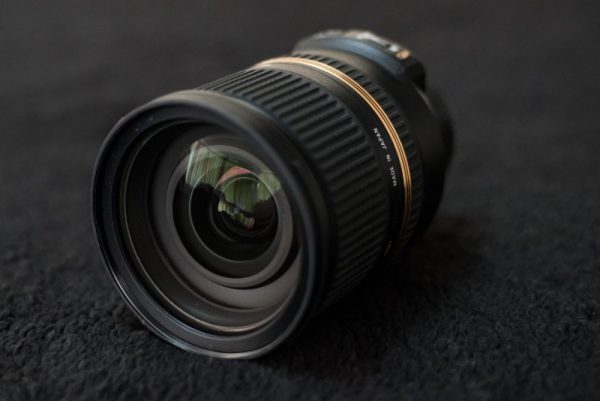

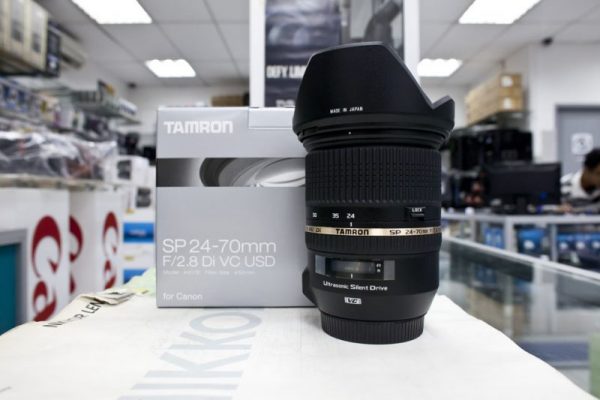

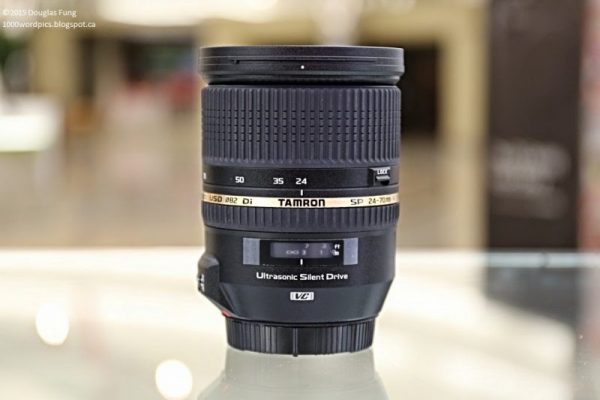

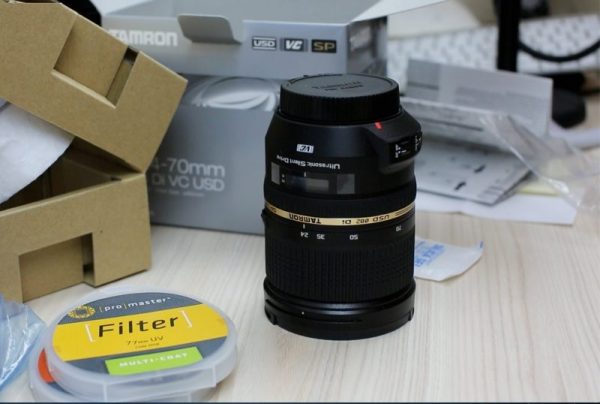

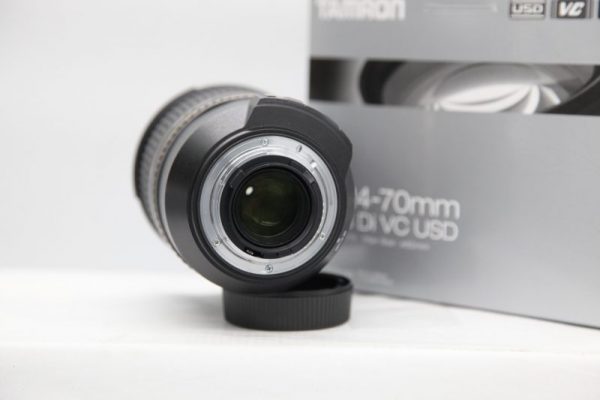

The Exterior

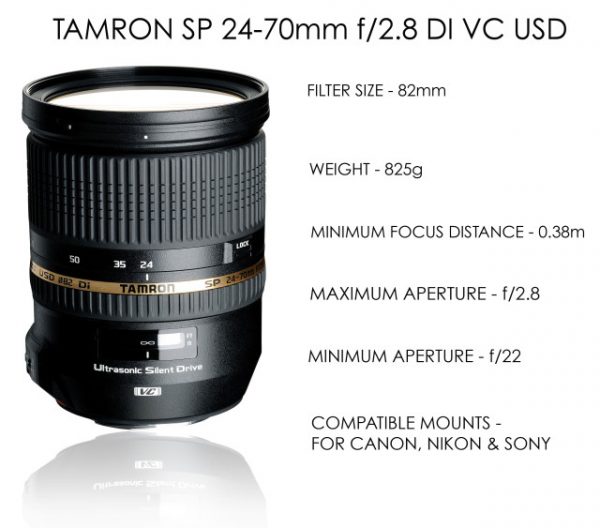

Technical Information
Specifications
Model | A007 |
---|---|
Focal Length | 24-70mm |
Maximum Aperture | F/2.8 |
Angle of View (diagonal) | 84ã‚œ04′ – 34ã‚œ21′ (with full-size SLR cameras) 60ã‚œ20′ – 22ã‚œ22′ (with APS-C sized sensor digital SLR cameras) |
Lens Construction | 17 elements in 12 groups |
Minimum Focus Distance | 0.38m (15in) |
Max. Magnification Ratio | 1:5 (at f=70mm: MFD 0.38m) |
Filter Size | Φ82mm (3.2in) |
Length*1 | 108.5mm (4.3in)* |
Entire Length*2 | 116.9mm (4.6in)* |
Diameter | Φ88.2mm (3.5in) |
Weight | 825g (29.1oz)* |
Diaphragm Blade Number | 9 (rounded diaphragm) |
Minimum Aperture | F/22 |

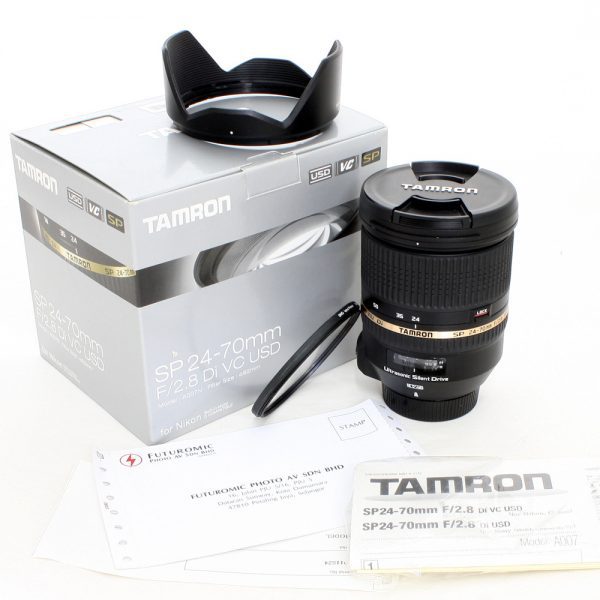

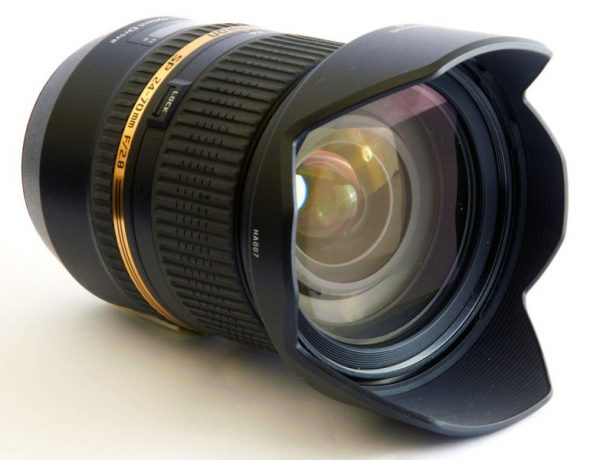

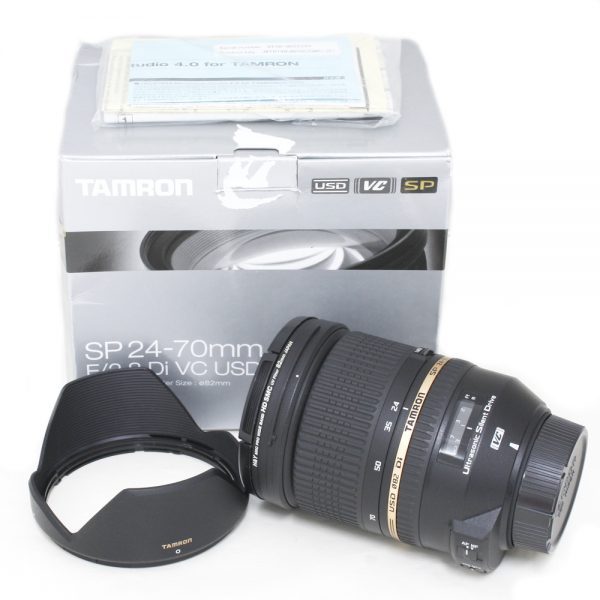

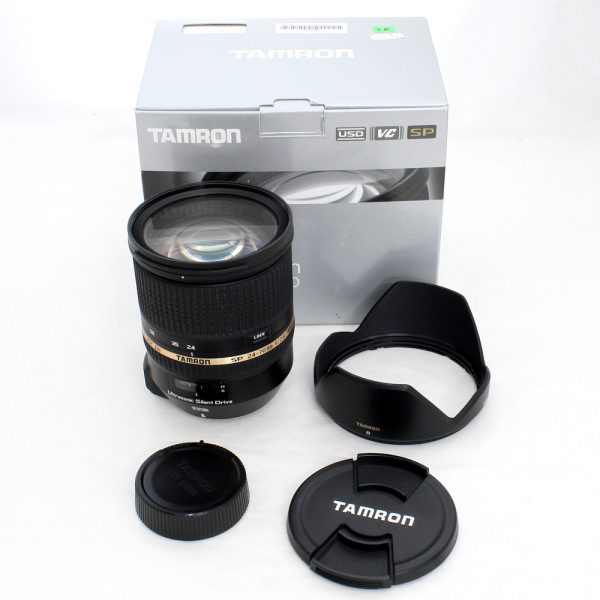

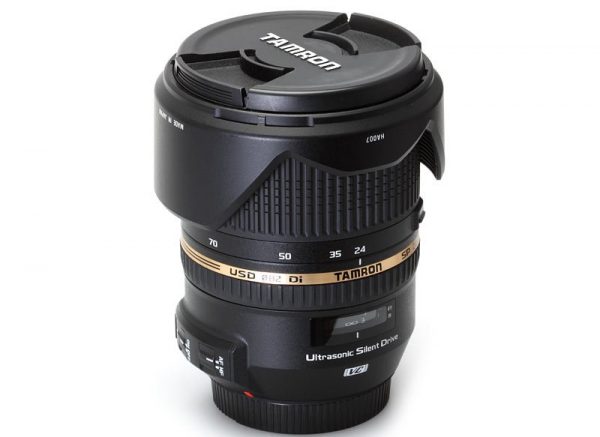

Standard Accessories | Flower-shaped lens hood |
Compatible Mounts | For Canon, Nikon, Sony*3 |
Specifications, appearance, functionality, etc. may be changed without prior notice.
*Length, entire length and weight values given are for the Nikon mount.
*1. Length is the distance between the mount face and the tip of the lens.
*2. Entire length is the distance between the tip of the lens and the tip of the protrusion.
*3. The Sony mount does not include VC image stabilization, as Sony digital SLR bodies include this functionality.
Release DateÂ
For Nikon: 2012/04/26*
For Canon: 2012/06/02*
For Sony: 2013/04/18*
* Date of launch in Japan
MTF
Optical Construction
