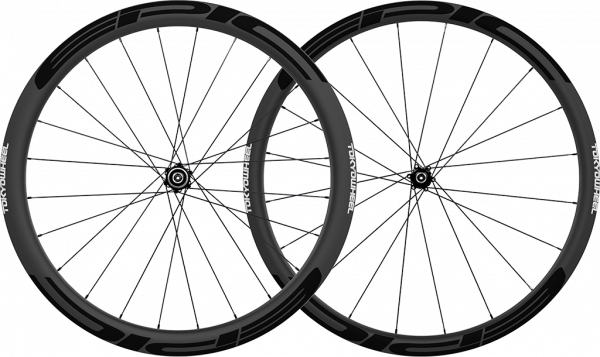

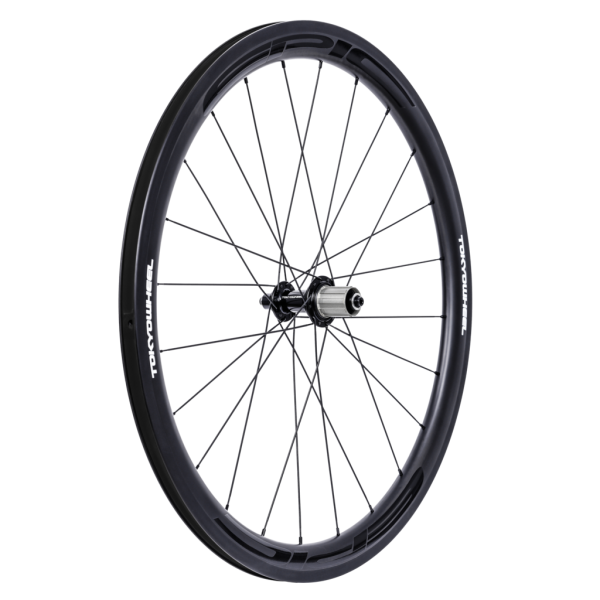

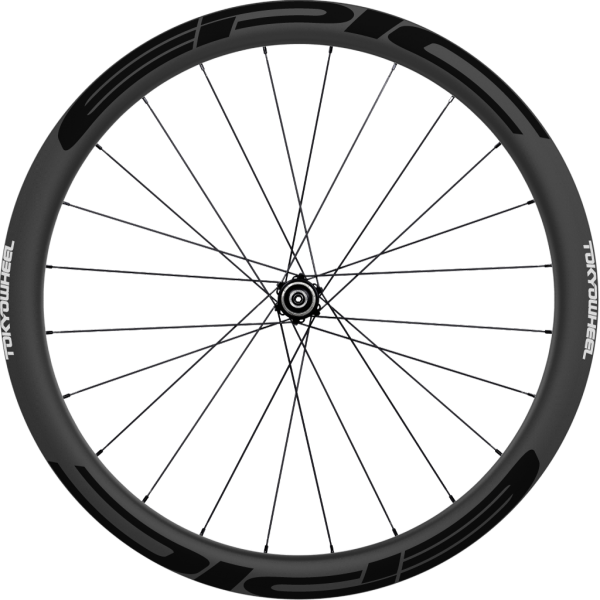

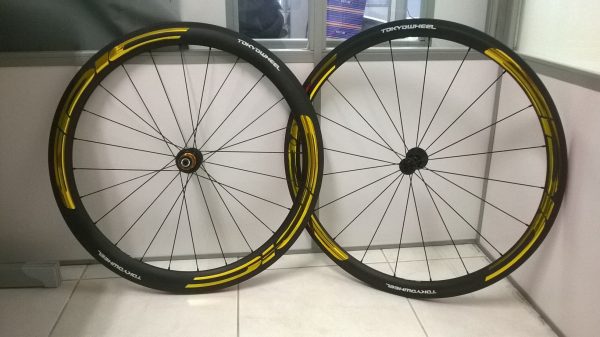

Tokyowheel™ EPIC 3.4 – Carbon Clincher – Wheelset
Features
| Actual wheelset weight: 1660 grams | Front spoke lacing: Radial |
| Front wheel weight: 730 grams | Rear spoke lacing: Diver side 2x, Non-drive radial |
| Rear wheel weight: 930 grams | Depth: 38mm front, 50mm rear |
| Width: 26mm outer, 18mm inner | Rider weight limit: 220 pounds |
| Hubs: Tokyo Vapor | Warranty: 1 year and 2-year crash replacement |
| Spokes: Sapim CX-Ray 20f/24r |
Tokyowheel™ EPIC 3.4 – Carbon Clincher – Wheelset
EPIC 3.4
Lightweight Aero Wheel System
The ultimate lightweight wheelset. Designed for rides with a lot of climbing and sprinting. The EPIC 3.4 is the lightest aerodynamic wheel, with the best handling.
Rider Type
Is this wheelset right for you?
Road Racing
The EPIC 3.4 is the ideal wheelset for road races involving a lot of climbing or attack sprinting. It’s great for gaining speed out of criterium racing corners. The incredibly stable handling keeps things safe when riding in a peleton, and the light weight, high stiffness wheel system is great for breakaways or catching the wheel of a passing rider.
Triathlon
For the best triathlon time savings, we generally recommend a higher rim depth wheelset, like the EPIC 7.10 , but if you are looking for a wheelset for very windy conditions the EPIC 3.4 is for you. Choose this wheelset if your looking for an ultra stable lightweight wheelset for windy days or courses with significant climbing.
Recreation
The EPIC 3.4 is the perfect recreational wheelset. You will love the dramatic increase in speed over traditional wheels. The highly stable EPIC 3.4 is great for side-by-side or paceline riding in group rides. The lightweight and super stiff rim design will help you on climbs and when sprinting to catch, or break away, from other riders.
System-Optimised™ Design
A Different Approach To Wheel Design
Tokyowheel System-Optimized™ wheels have distinctly different front and rear rims to maximize performance.
CFD Engineered
Computational Fluid Dynamics
Faster, more aerodynamic wheels as a result of engineering in a computer simulated windtunnel.
Carbon-Strut™ Construction
Unique Carbon Fiber Manufacturing That is Lighter and Stronger
69 folded layers of carbon fiber arranged in a stronger, lighter construction only possible with System-Optimized™ wheels.
DuraHeat-R™ High-Temperature Carbon
Better Braking Performance.
A three part technology for superior braking with carbon rims.

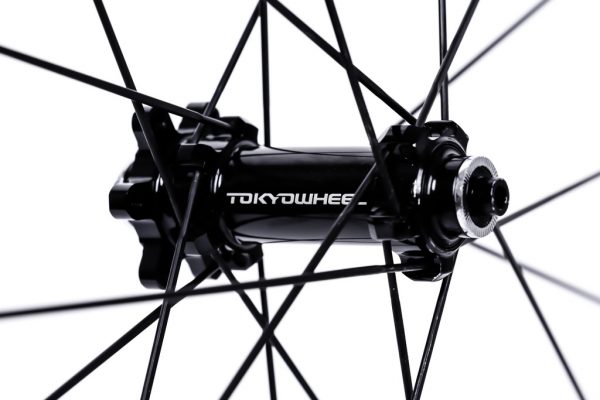

Standard Hubs and Spokes
Tokyowheel™ VAPOR 2 Hubs & Aero Bladed Spokes
Lightweight, durable road bike hubs and strong aerodynamic spokes. Available with optional Sapim Cx-Ray Spokes and Ceramic Bearings
Optional DT Swiss Hubs and Pro Spokes
Dt Swiss 2402 Straight Pull Hubset Horizontal Super
One of the most well known names in hubs. DT Swiss components have a long history of quality and high performance. These hubs are compatible with Center Lock® disc rotors, and are available in your choice of either Quick-Release or Thru-Axle (15mm Front, 12mm Rear).
Optional Pro Hubs and Spokes
Tokyowheel™ VAPOR 2 Hubs & Aero Bladed Spokes
Ultralight carbon fiber hubs with an extra-durable magnetic Ring-Ratchet™ and pro level spokes
UCI Approved
This wheelset has been certified and approved by the UCI (Union Cycliste Internationale), for use in UCI sanctioned road races. These wheels are also certified for use in ITU (International Triathlon Union) sanctioned triathlons.
Detailed Specs
| Weight* | 1415g ~ 1554g (Depending Upon Hub & Spoke Options) |
| Rim Weight* | Front: 450g, Rear 500g |
| Rim | 700c Carbon Clincher |
| Tubeless | Compatible |
| Rim Depth | Front: 33mm, Rear 43mm |
| Brake Track Width | 25mm |
| Brake Track | Angled |
| Max Width | Front: 28mm, Rear 26.5mm |
| Internal Rim Width | 18mm |
| Valve Balanced | true |
| Carbon Finish | Matte UD Carbon Fiber |
| Spokes | Standard: 2.3mm Aero Bladed, Pro: Sapim CX-Ray |
| Spoke Count | Front: 20, Rear: 24 |
| Spoke Pattern | Front: Radial, Rear: 2x |
| Hub | Standard: VAPOR™ 2, Pro: CARBON VAPOR™, DT Swiss: 240s |
| Free Hub | Shimano/SRAM 9/10/11 Or Campagnolo 9/10/11 |
| Bearings | Standard: 688 6802 TPI Stainless Cartridge, Pro: 6900 6902:15267 Angular-Contact Stainless |
| Rider Weight Limit | 242lbs / 110kg |
| Recommended Tire Pressure | 110 psi |
| Max Tire Pressure | 140 psi |
| Recommended Tire | Continental GP4000s II (23mm x 700c) |
* Wheel weights are subject to a +/- 5% variance.
Tokyowheel EPIC 3.4 Rim Sneak Preview
I want to give you a sneak preview look at what we’ve got coming up for you.
Last week I was in our carbon factory, checking out the first few testing units of the new Epic 3.4 rims. I shot a couple quick videos to give you an insider look.
We’re going to be announcing a huge pre-sale of the entire new, 3rd generation, product line very soon. You’ll be able to order all the new products at incredible pre-sale prices, for a limited time. I’ll be giving you more info on the products soon, but for now checkout a sneak preview of the all new Epic 3.4 Rims.
Epic 3.4 Rims Preview
Epic 3.4 Front Rim Preview
Epic 3.4 Rear Rim Preview
