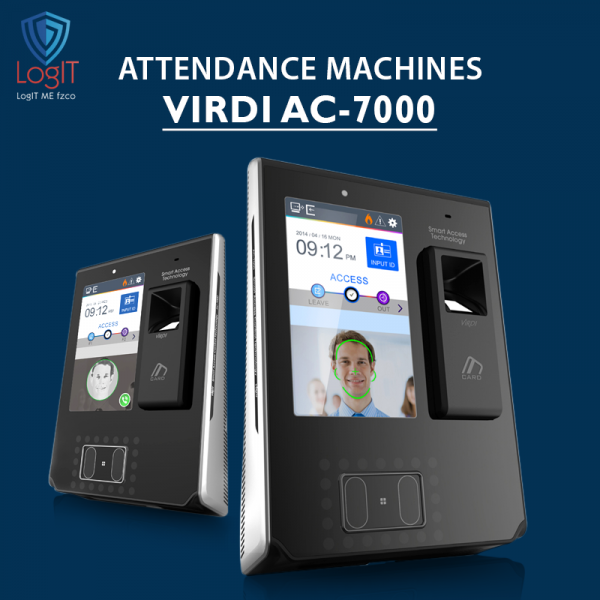

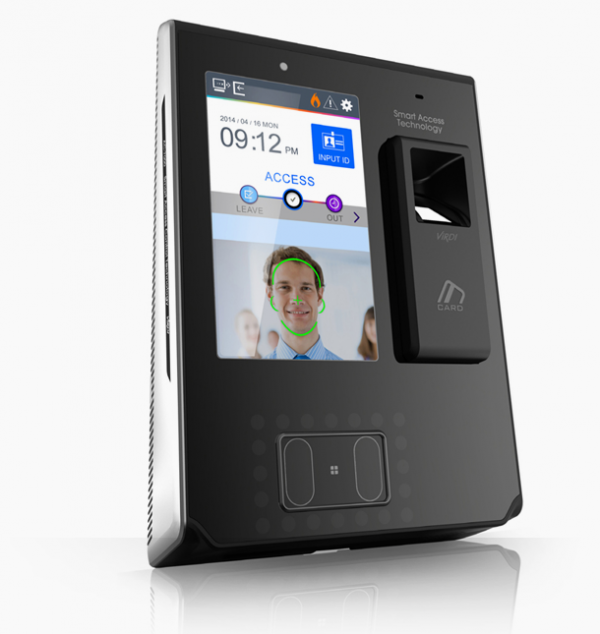

VIRDI AC7000 – High Performance Face & Fingerprint Terminal

AC-7000 is the latest access controller with fake finger detection and a tilt camera which automatically detects a face within 3m. Its 5″ touch LCD and familiar UI such as Android smartphone Apps greatly enhance user convenience.

The AC 7000 is a dual Fingerprint and Face Recognition Terminal.It is a high-end access control & time recording terminal. Standard features include: Android Operating System, large touch TFT LCD screen, Virdi’s patented biometric scanner with live + fake finger detection & auto scan, RFID or Mifare card reader, up to 60 function keys, Wiegand interface (both IN & OUT), lock relay, door status monitor, alarm interface, RS485 Secure Transmission Protocol (STP) / RS232 port and TCP/IP interface, can handle 250 000 users, 250 000 fingerprint templates, 60 000 facial templates, stores 2 000 000 transactions. The AC 7000 can operate as a standalone device or be managed via a PC/Server.

Feature Auto height angle adjustment A tilt camera offers auto face detection. No need to lower posture or bend the knees Face detection in the dark IR LED Camera offers user convenience as it detects face even in the dark without any trouble. Simultaneous double authentication by Dual CPU Dual CPU provides fast simultaneous face & fingerprint double authentication VoIP support VoIP with improved sound quality is provided.

Specification Main RF Option 125KHz EM & 13. 56MHz Smart Card / Desfire / Felica / HID Prox(optional) / HID iClass(optional) Capacity Max. User (1:1) Finger 250,000 / Face 10,000 Max. User (1:N) Finger 25,000 / Face 2,000 Max. Text Log 10,000,000 Max. Image Log 20,000 Interface Communication TCP/IP, Wiegand, RS485, RS232, Wi-Fi (Optional) Hardware CPU 1 GHz Quad Core (Dual) Memory 4GB NAND + 8GB microSD LCD 5” Color Touch LCD Power Consumption 12V, Max 900mA (10. 8W) Dimension 149. 5 x 208. 5 x 46 mm Certificates KC, CE, FCC, RoHS
