Sporting an LCD touchscreen for control, the YoloLIV YoloBox Portable Multi-Camera Live Streaming Device can simultaneously broadcast to 3 platforms. Simply connect up to 5 video sources, then connect to a local area network via Wi-Fi, Ethernet, or LTE (LTE connection requires SIM card and data plan not included), and set up your stream. The large touchscreen display shows the streaming image as well as the input streams; the LCD display also shows the control interface, which allows you to switch between the info sources with a touch.

The YoloBox supports input resolutions of 720p and 1080i/p, and streams at your choice of 540p, 720p, and 1080p using the H.264 codec. You can stream to YouTube via custom RTMP settings. The Yolo Box features an HDMI out, which allows you to display your stream locally on an HDMI device. It also has a line-level audio input, and a discrete headphone audio out. You can record your stream directly in the .mp4 format to an optional SD card, up to 128GB in size, using the built-in SD card slot.

Key Features

• Touchscreen Control Streaming Encoder
• Simultaneous Cross-Platform Streaming
• Encoder, Monitor, Switcher, and Recorder
• 2 x HDMI, 1 x USB In; 1 x HDMI Out
• 1 x HDMI Confidence Monitor Out
• Stream via Ethernet, Wi-Fi, or LTE
• Supports 1080p and 720p Resolutions
• H.264 Streaming Format
• Connect to YouTube via Custom RTMP
• Records Internally to SD Card

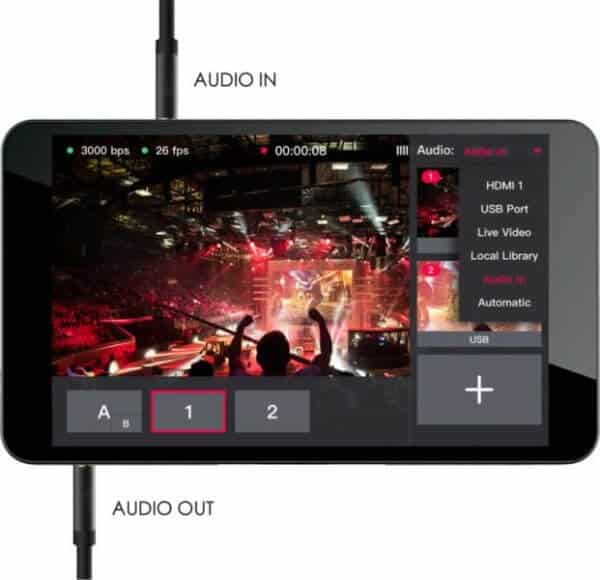

Touchscreen Control

The Yolo Box provides you with a large touchscreen interface for easy streaming and control.

Functions

The device works as a switcher, with a variety of picture-in-picture templates as well as graphic layers. It has a built-in encoder that allows for live streaming, and can record to optional SD cards.

Internet

You can connect to the internet using the integrated RJ45 (Ethernet) port, Wi-Fi, and via cell service using an optional SIM card.

Simultaneous Streaming

YoloBox will first push your feed to the YoloLIV platform, from where it automatically forward your feed to a maximum of 3 destinations simultaneously.
Note: Please note that at times a streaming service may change their policies, which will cause issues with integration; this is usually a temporary situation.

Streaming Platforms

Major steaming platforms such as Facebook live, YouTube, and Twitch as well as YoloLIV are supported. RTMP protocols allow you to stream to custom RTMP destinations including YouTube.

Input Sources

The YoloBox allows you to manage (Switch, Picture-in-picture, etc.) up to 5 inputs, including 4 from physical sources (2 HDMI, 1 USB, and 1 SD card) as well as 1 from a web source.

Battery Life

The internal battery can power your YoloBox for approximately 3 hours. The YoloBox charges via the USB connection, which is used for power only.
