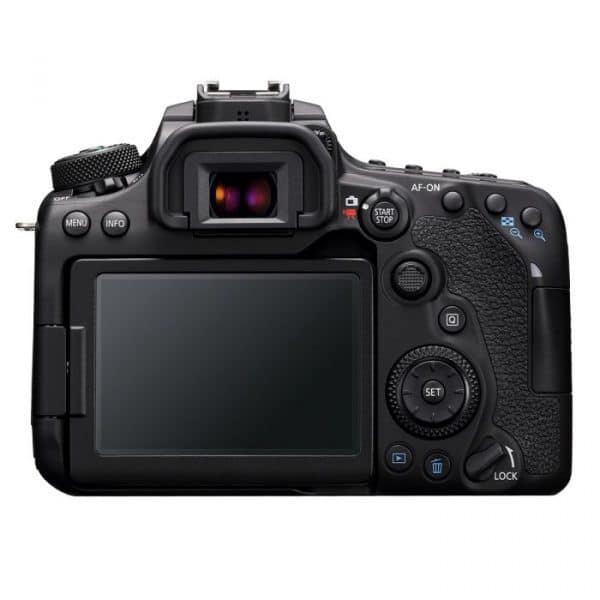

Canon EOS 90D DSLR Camera

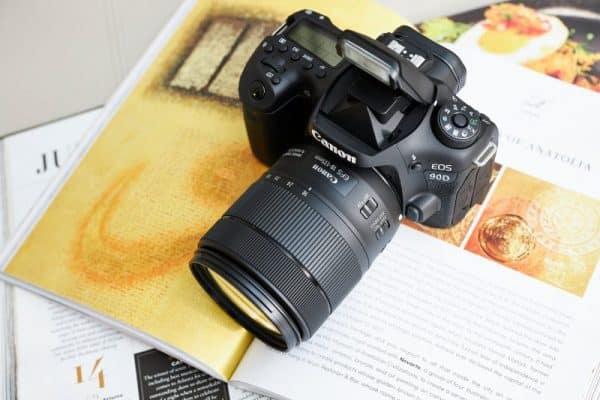

Canon EOS 90D DSLR Camera with 18-135mm Lens
Situated as a versatile camera with capable photo and video traits, the Canon EOS 90D is a sleek DSLR also characterized by its high-resolution 32.5MP APS-C CMOS sensor. This updated sensor design achieves enhanced image clarity, resolution, and dynamic range, along with adept sensitivity to ISO 25600 and low noise to suit working in a variety of situations. Combined with advanced image processing, this sensor is also capable of outputting UHD 4K30p and Full HD 120p video, as well as supporting continuous stills shooting rates up to 10 fps.
- 32.5MP APS-C CMOS Sensor
- DIGIC 8 Image Processor
- UHD 4K30p & Full HD 120p Video Recording
- 3″ 1.04m-Dot Vari-Angle Touchscreen LCD
EF-S 18-135mm f/3.5-5.6 IS USM Lens
Canon EOS 90D
High Image Quality with 32.5 Megapixel CMOS (APS-C) Sensor
The Canon EOS 90D camera features a powerful 32.5 Megapixel CMOS (APS-C) sensor that can capture high-resolution images. Utilizing a sophisticated light-capturing design, it provides high sensitivity for high ISO capture with reduced noise, delivering clear, detailed results even in low light. It also enables fast continuous shooting and fast autofocus for high-speed performance that helps you capture once-in-a-life time moment.
DIGIC 8 Image Processor
The DIGIC 8 Image Processor helps produce high image quality and fast operation, even in in low light. When using high ISO settings, the image processor helps keep results sharp and detailed in virtually any lighting situation. Powerful all around, the DIGIC 8 Image Processor helps ensure your photos and videos look sharp and lifelike with minimal noise or grain.
High-Speed Continuous Shooting of up to 10 fps with no Time Lag during OVF Shooting
With a new, rugged shutter designed for 120,000 cycles, the EOS 90D camera can shoot up to 10 frames per second during viewfinder shooting, and approx. 11fps during live view shooting to capture all the action. With super quick AF and exposure systems complementing the shutter’s 55m sec shutter release time lag, the EOS 90D camera is tailored to meet and even exceed the speed of the action with no time lag while shooting through the optical viewfinder.
4K (UHD) 30fps Video
Thanks to the DIGIC 8 image processor, and APS-C size CMOS image sensor, enjoy recording uncropped 4K videos at up to 30 frames per second. Recording at almost four times the resolution of Full HD, you can see your subject in stunning clarity.
FHD 120fps Video
Full HD videos at up to 120 frames per second can also be recorded using the EOS 90D camera – delivering refined and detailed image quality. Designed to capture fun, beautiful videos, the EOS 90D camera helps ensure that you can see the unique expressions of your friends’ or family’s faces in close-up movies.
45-point all cross-type AF system* Supports up to 27 Points with an f/8 Metering
The EOS 90D camera has a wide-area, 45-point, all cross-type AF system* that helps you get what you want in focus, quickly. This comes in especially handy when trying to photograph fast-moving subjects, like athletes racing at a motocross event, or an athlete scoring a goal. The EOS 90D is compatible with most EF and EF-S lenses that has a maximum aperture of f/8 or higher, and some lenses with extenders attached may operate at a maximum of 27 points. With minimal glare and minimal lag time while looking through the optical viewfinder, the EOS 90D camera will help you get the shot you want without having to lose the fast-moving subject – even in unpredictable settings.
Equipped with an Approx. 220,000 Pixel New AE Sensor and EOS iTR AF (Face Detection)
The EOS 90D camera is equipped with an advanced 220,000-pixel AE sensor and DIGIC 8 image processor, that greatly contribute to the camera’s impressive AF performance for both stills and video. The EOS 90D camera also incorporates Canon’s EOS Intelligent Tracking and Recognition system (EOS iTR AF) that detects and tracks your face – even while looking through the optical viewfinder – automatically switching the AF point to optimize face tracking. Using tracking algorithms tailored to recognize faces and colors, this system not only helps to quickly and automatically select the ideal capture settings, but also serves as a brilliant foundation to the EOS 90D AF system.
Fast and Accurate Dual Pixel CMOS AF with Eye Detection AF
The EOS 90D camera lets you shoot with Dual Pixel CMOS AF for fast, accurate autofocus that helps you get the photo you want right as the moment happens. This means fast action can be captured and focus can be maintained with speed, accuracy and ease.
AF Area Coverage of Approx. 88% x 100%^
The EOS 90D camera features an expansive focus area of approx. 88% horizontal and 100% vertical^ when working with select EF and EF-S lenses. With older EF lenses, or with Extender types I and II, the EOS 90D camera focuses approx. 80% horizontally and 80% vertically. This means fast and impressive focusing even if your subject is way off center.
^ When shooting still photos. Actual coverage varies depending on the lens in use.
AF Points and AF Area
Featuring a sophisticated AF system with a maximum of 5,481 manually selectable AF points**, the EOS 90D can be configured to focus on a specific area during live view shooting, using an extended range of selectable modes that include Face + Tracking AF, single-point Spot AF (ideal for subjects such as animals), zone AF, and single-spot AF.
Designed to allow users to operate customizable camera functions while looking through the optical viewfinder, the EOS 90D camera features two multi-controller buttons located on the back of the camera that makes it easy for the user to locate and control.
Battery Grip BG-E22
The EOS 90D camera’s dedicated Battery Grip BG-E14 holds 2 Battery Packs LP-E6N, while enabling virtually seamless vertical operation and additional functions with all buttons similarly configured in a comfortable and dedicated grip. Designed to maintain an optimal balance between the weight of the camera body and lens, the Battery Grip BG-E14 also adds a flash sync terminal for use in the studio. It also has a useful battery charging function (with optional USB power delivery adapter attached) that’s particularly helpful for power-hungry operations like video recording or shooting over an extended period of time with the OVF.
Electronic shutter with a Minimum of up to 1/16000th
The EOS 90D camera features a powerful electronic shutter system with speeds from 1/16000 second during live view shooting and a mechanical/electronic 1st-curtain shutter with a maximum of 1/8000 second. Not only is this effective at preventing camera shake, but the EOS 90D camera can help capture fast-speed moments such as motocross events, in sharp detail.
Vari-angle Touch Screen LCD
The EOS 90D camera features a 3.0-inch Vari-angle Touch Screen LCD that can be ideal for composing and reviewing your photos. Tap the screen during Live View while taking photos or videos and thanks to Dual Pixel CMOS AF, the EOS 90D camera will quickly lock focus to that specific location in the image. Touch gestures can be used for zooming in or swiping through images after you’ve taken them. In addition, the Vari-angle Touch Screen LCD lets users capture high-quality selfie shots with ease.
Built-in Wi-Fi®*** Capability
The EOS 90D camera is designed to make connecting to a Wi-Fi®*** network fast and easy. It can exchange data with other Wi-Fi® connected compatible Canon cameras, and transfer files directly to a compatible smart device using the Camera Connect app. The Wi-Fi® capability lets you share and upload directly to various web services like CANON iMAGE GATEWAY^, Facebook® and YouTube® as well as print directly to compatible wireless Canon printers.
Built-in Bluetooth®**** Capability
Bluetooth®**** pairing helps you connect the camera to compatible smart devices using the free Canon Camera Connect app*. To customize the Bluetooth® function, simply click on the network icon located on the LCD screen. In addition, Bluetooth® lets you connect to the optional Wireless Remote Control BR-E1 for remote shooting as well as pick up GPS shooting location data from the user’s compatible smartphone while using the GPS receiver GP-E2.
^ One-time registration is required on CANON iMAGE GATEWAY online photo album.
Canon’s Digital Photo Professional Express makes speedy processing of JPEGs and CR3 RAW files on a compatible handheld device a breeze. Working with Canon’s Camera Connect app^^^ to create a streamlined wireless workflow, DPP Express lets you adjust settings right on your mobile device, saving files to the cloud, a PC or your camera.
^^^ Compatible with iOS® versions 10.3/11.2-11.4/12.2, Android™ smartphone and tablet versions 4.4/5.0/5.1/6.0/7.0/7.1/8.0/8.1/9.0. Data charges may apply with the download of the free Canon Camera Connect app. This app helps enable you to upload images to social media services. Please note that image files may contain personally identifiable information that may implicate privacy laws. Canon disclaims and has no responsibility for your use of such images. Canon does not obtain, collect or use such images or any information included in such images through this app.
Canon 90D Specs
|Lens Mount||Canon EF-S|
|Camera Format||APS-C (1.6x Crop Factor)|
|Pixels||Actual: 34.4 Megapixel|
Effective: 32.5 Megapixel
|Maximum Resolution||6960 x 4640|
|Aspect Ratio||1:1, 3:2, 4:3, 16:9|
|Sensor Size||22.3 x 14.8 mm|
|Image File Format||JPEG, Raw|
|Image Stabilization||Digital (Video Only)|
|ISO Sensitivity||Auto, 100 to 25600 (Extended: 100 to 51200)|
|Shutter Speed||Mechanical Shutter|
1/8000 to 30 Second
1/16000 to 30 Second
|Metering Method||Center-Weighted Average, Evaluative, Partial, Spot|
|Exposure Modes||Aperture Priority, Manual, Program, Shutter Priority|
|Exposure Compensation||-5 to +5 EV (1/3, 1/2 EV Steps)|
|Metering Range||1 to 20 EV|
|White Balance||Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten|
|Continuous Shooting||Up to 10 fps at 32.5 MP for up to 25 Exposures (Raw)|
Up to 10 fps at 32.5 MP for up to 58 Exposures (JPEG)
Up to 11 fps at 32.5 MP
Up to 7 fps at 32.5 MP
UHD 4K (3840 x 2160) at 23.976p/25p/29.97p
Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p/100p/119.88p
HD (1280 x 720) at 50p/59.94p
|External Recording Modes||4:2:2 8-Bit|
UHD 4K (3840 x 2160) up to 25p/29.97p
|Recording Limit||Up to 29 Minutes, 59 Seconds|
|Audio Recording||Built-In Microphone (Stereo)|
External Microphone Input (Stereo)
|Audio File Format||AAC|
|Focus Type||Auto and Manual Focus|
|Focus Mode||Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)|
|Autofocus Points||Phase Detection: 45 (45 Cross-Type)|
Phase Detection: 5481
|Autofocus Sensitivity||-3 to +18 EV|
Viewfinder and Monitor
|Viewfinder Type||Optical (Pentaprism)|
|Viewfinder Eye Point||22 mm|
|Viewfinder Magnification||Approx. 0.95x|
|Diopter Adjustment||-3 to +1|
|Monitor Resolution||1,040,000 Dot|
|Monitor Type||Articulating Touchscreen LCD|
|Flash Modes||Auto, Manual|
|Guide Number||39.37′ / 12 m at ISO 100|
|Maximum Sync Speed||1/250 Second|
|Flash Compensation||-3 to +3 EV (1/3, 1/2 EV Steps)|
|Dedicated Flash System||eTTL|
|External Flash Connection||Hot Shoe|
|Memory Card Slot||Single Slot: SD/SDHC/SDXC (UHS-II)|
|Connectivity||3.5mm Headphone, 3.5mm Microphone, HDMI C (Mini), Micro-B (USB 2.0)|
|Operating Temperature||32 to 104°F / 0 to 40°C|
|Operating Humidity||0 to 85%|
|Battery||1 x LP-E6N Rechargeable Lithium-Ion, 7.2 VDC, 1865 mAh (Approx. 1300 Shots)|
|Dimensions (W x H x D)||5.54 x 4.13 x 3.02″ / 140.7 x 104.8 x 76.8 mm|
|Weight||1.54 lb / 701 g (Body Only)|
|Warranty Length||Limited 1-Year Warranty|
|Focal Length||18 to 135mm (35mm Equivalent Focal Length: 28.8 to 216mm)|
|Maximum Aperture||f/3.5 to 5.6|
|Minimum Aperture||f/22 to 38|
|Angle of View||74° 20′ to 11° 30′|
|Minimum Focus Distance||1.28′ / 39 cm|
|Optical Design||16 Elements in 12 Groups|
|Diaphragm Blades||7, Rounded|
|Filter Size||67 mm (Front)|
|Dimensions (ø x L)||3.05 x 3.78″ / 77.4 x 96 mm|
|Weight||1.13 lb / 515 g|
|Package Weight||4.6 lb|
|Box Dimensions (LxWxH)||11 x 8.8 x 6.6″|
* The number of AF points, cross-type AF points and Dual cross-type AF points vary depending on the lens used.
** Available AF points may decrease when shooting with AF cropping or in movie mode, or depending on camera settings or lens attached.
*** Compatible with iOS® versions 9.3/10.3/11.2-11.4/12.2, Android™ smartphone and tablet versions 5.0/5.1/6.0/7.0/7.1/8.0/8.1/9.0. Data charges may apply with the download of the free Canon Camera Connect app. This app helps enable you to upload images to social media services. Please note that image files may contain personally identifiable information that may implicate privacy laws. Canon disclaims and has no responsibility for your use of such images. Canon does not obtain, collect or use such images or any information included in such images through this app.
**** Compatible with select smartphone and tablet devices (Android™ version 5.0 or later and the following iOS® devices: iPhone 4s or later, iPad 3rd gen. or later, iPod Touch 5th gen. or later) equipped with Bluetooth® version 4.1 or later and the Camera Connect App Ver. 2.5.10. This application is not guaranteed to operate on all listed devices, even if minimum requirements are met.
