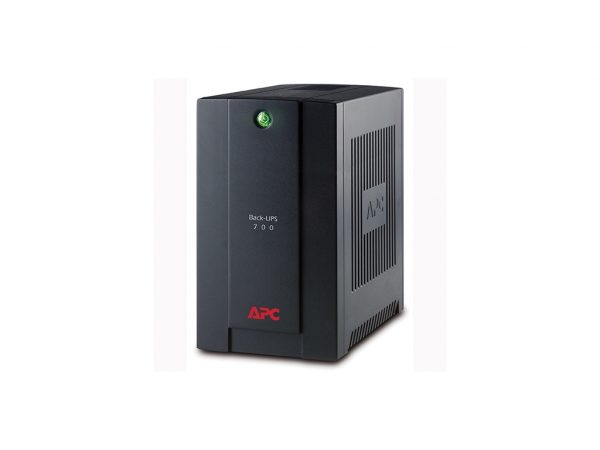

APC BX700UI uninterruptible power supply (UPS)

BX700UIFeatures

APC Back-UPS 700VA, 230V, AVR, IEC Sockets

• Automatic Voltage Regulation (AVR)
  Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
• Telephone dataline surge protection
  Provides protection of connected equipment from power surges traveling on telephone lines.
• USB connection
  Use your PC to access additional power protection and management features for your UPS via a USB Port.

Back-UPSFeatures & Benefits

Protection

• Battery and surge protected outlets
  Back up and protect your hardware and data during power outages, surges and spikes.
• Surge only outlets
  Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

Availability

• Intelligent battery management
  Maximizes battery performance, life, and reliability through intelligent, precision charging.
• Battery failure notification
  Provides early-warning fault analysis on batteries enabling timely preventive maintenance
• Automatic self-test
  Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Manageability

• Audible alarms
  Provides notification of changing utility power and UPS power conditions
• LED status display
  Quickly understand unit and power status with visual indicators.

Safety

• Safety-agency approved
  Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Marketing Features

• Battery-protected and surge-only outlets
  Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment

Technical Specifications

Output

• Output power capacity

  390Watts / 700VA

• Max Configurable Power (Watts)

  390Watts / 700VA

• Nominal Output Voltage

  230V

• Output Frequency (sync to mains)

  50/60 Hz +/-1 Hz

• Topology

  Line Interactive

• Waveform type

  Stepped approximation to a sinewave

• Output Connections
  (1) IEC Jumpers (Battery Backup)

  (4) IEC 320 C13 (Battery Backup)
• Transfer Time

  4ms typical

Input

• Nominal Input Voltage

  230V

• Input frequency

  50/60 Hz +/- 3 Hz (auto sensing)

• Input Connections

  IEC-320 C14

• Cord Length

  1,22meters

• Input voltage range for main operations

  140 – 300V

• Number of Power Cords

  1

Batteries & Runtime

• Battery type

  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

• Typical recharge time

  6hour(s)

• Replacement Battery

  APCRBC110

• Expected Battery Life (years)

  3 – 5

• Battery Volt-Amp-Hour Capacity

  81

• Runtime
  View Runtime Graph
  View Runtime Chart
• Efficiency
  View Efficiency Graph

Communications & Management

• Interface Port(s)

  USB

• Control panel

  LED status display with On Line : On Battery : Replace Battery and Overload indicators

• Audible Alarm

  Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

• Surge energy rating

  273Joules

• Data Line Protection

  RJ-11 Modem/Fax/DSL protection (two wire single line)

Physical

• Maximum Height

  200mm , 20.0cm

• Maximum Width

  115mm , 11.5cm

• Maximum Depth

  256mm , 25.6cm

• Net Weight

  6.0kg

• Shipping weight

  6.5kg

• Shipping Height

  275mm , 27.5cm

• Shipping Width

  295mm , 29.5cm

• Shipping Depth

  340mm , 34.0cm

Environmental

• Operating Environment

  0 – 40 °C

• Operating Relative Humidity

  0 – 95% non-condensing %

• Operating Elevation

  0-3000meters

• Storage Temperature

  -15 – 40 °C

• Storage Relative Humidity

  0 – 95% non-condensing %

• Storage Elevation

  0-9000meters

• Audible noise at 1 meter from surface of unit

  45.0dBA

Conformance

• Standard warranty

  2 years repair or replace

Sustainable Offer Status

• RoHS

  Compliant

• REACH

  REACH: Contains No SVHCs
