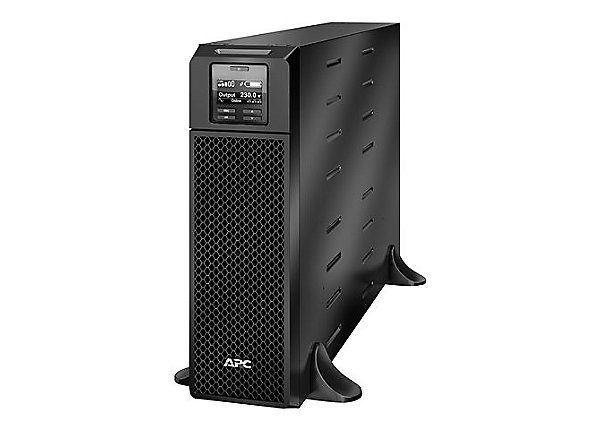

APC Smart-UPS SRT 5000VA 230V
Availability:
In stock
Main Features
- UPS (rack-mountable / external)
- AC 230 V
- 4500 Watt
- 5000 VA
- Ethernet 10/100
- USB
- output connectors: 12
- 3U
- black
APC Smart-UPS SRT 5000VA / 4500 Watt UPS 230V
Characteristics
| Model Name |
APC Smart-UPS SRT 5000VA 230V
|
|
| Includes |
CD with software , Comms cable , Documentation CD , Installation guide , Removable support feet , Temperature Probe , USB cable , Warranty card , Web/SNMP Management Card
|
|
| Standard Lead Time |
Usually in Stock
|
|
| Output Power Capacity |
4500 Watts / 5000 VA
|
|
| Max Configurable Power (Watts) |
4500 Watts / 5000 VA
|
|
| Nominal Output Voltage |
230V
|
|
| Output Voltage Distortion |
Less than 2%
|
|
| Output Frequency (sync to mains) |
50/60Hz +/- 3 Hz
|
|
| Other Output Voltages |
220, 240V
|
|
| Crest Factor |
3 : 1
|
|
|
Double Conversion Online
|
||
| Waveform Type |
Sine wave
|
|
| Output Connections |
(2) IEC Jumpers (Battery Backup) , (4) IEC 320 C19 (Battery Backup) , (6) IEC 320 C13 (Battery Backup)
|
|
| Bypass |
Internal Bypass (Automatic and Manual)
|
| Nominal Input Voltage |
230V
|
|
| Input Frequency |
40 – 70 Hz (auto sensing)
|
|
| Input Connections |
Hard Wire 3 wire (1PH+N+G)
|
|
| Input voltage range for main operations |
160 – 275 V
|
|
| Input voltage adjustable range for mains operation |
100 – 275 (half load)V
|
|
| Other Input Voltages |
220 , 240
|
|
| Maximum Input Current |
0 A
|
|
| Input Breaker Capacity |
0 A
|
| Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
|
|
| Included Battery Modules |
2
|
|
| Battery Slots Empty |
0
|
|
| Typical recharge time |
1.5 hour(s)
|
|
| Replacement Battery |
APCRBC140
|
|
| RBC Quantity |
1
|
| Interface Port(s) |
RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
|
|
| Available SmartSlot™ Interface Quantity |
1
|
|
| Control panel |
Multi-function LCD status and control console
|
|
| Audible Alarm |
Audible and visible alarms prioritized by severity
|
|
| Emergency Power Off (EPO) |
Yes
|
| Surge energy rating |
480 joules
|
| Maximum Height |
432.0 mm
|
|
| Maximum Width |
130.0 mm
|
|
| Maximum Depth |
720.0 mm
|
|
| Rack Height |
0 U
|
|
| Net Weight |
54.43 kg
|
|
| Shipping Weight |
63.6 kg
|
|
| Shipping Height |
330.0 mm
|
|
| Shipping Width |
610.0 mm
|
|
| Shipping Depth |
960.0 mm
|
|
| Master Carton Units |
0.0
|
|
| Master Carton Weight |
0.0 lbs
|
|
| Color |
Black
|
|
| Units per Pallet |
6.0
|
| Operating Environment |
0 – 40 °C
|
|
| Operating Relative Humidity |
0 – 95% non-condensing %
|
|
| Operating Elevation |
0-3000 meters
|
|
| Storage Temperature |
-15 – 45 °C
|
|
| Storage Relative Humidity |
0 – 95% non-condensing %
|
|
| Storage Elevation |
0-15000 meters
|
|
| Audible noise at 1 meter from surface of unit |
55.000 dB
|
|
| Online Thermal Dissipation |
931.000 BTU/hr
|
|
| Protection Class |
IP 20
|
| Approvals |
CE , CE Mark , EAC , EN/IEC 62040-1 , EN/IEC 62040-2 , ENERGY STAR V1.0 (EU) , IRAM , RCM , VDE
|
|
| Standard warranty |
3 years repair or replace (excluding battery) and 2 years for battery
|
| RoHS |
Compliant
|
|
| REACH |
REACH: Contains No SVHCs
|
