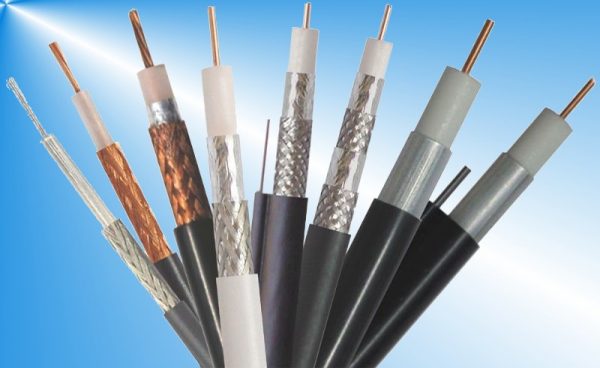

Astel Rg6 Coaxial Cables/ 5 metres
Availability:
In stock
Quick Details
- Model Number: Astel Rg6 coaxial cables
- Type: Coaxial
- Number of Conductors: 1
- name: Astel Rg6 coaxial cables
- dia: 5-15mm for QS cable one hd
- Conductor: BC/CCS/TC/CCA/CCC and so on for QS cable one hd
- Insulation: Foam PE/Solid PE for QS cable one hd
- Shield: Al Foil / CU FOIL/ BLUE FOIL/ COPIED FOIL/ BONDED FOIL and so on
- Braiding: Al-Mg/CCA/BC/TC and so on for QS cable one hd
- Jacket: PVC/PE/ RESIN AND SO ON for QS cable one hd
- Application: CCTV/ CATV/ MATV/ ANTENNA/ SATELLITE and so on
- color: white/ black
Astel Rg6 Coaxial Cables/ 5 metres
Specification of RG6 With Messenger
|
Construction(DUAL) |
|
|
Center Conductor: |
1.02±0.01mm Solid Copper/Copper Clad Steel |
|
Dielectric: |
4.57+0.05mmFoam PE |
|
Shield: |
Bonded Al Foil |
|
Braid Coverage: |
50-90%Al |
|
Jacket: |
6.90+0.10mmPVC |
|
Jelly/APD |
Per Customers’ Special Requirement |
|
Characteristics |
|
|
Sparker Test: |
4000VAC |
|
Impedance: |
75+3 Ohm |
|
Capacitance: |
54+3pF/m |
|
Velocity of Propagation: |
82% (min) |
|
Return Loss: |
20dB min (5-2300MHz) |
