ASUS H110M-A D3 LGA 1151 Motherboard

Availability: In stock
KShs20,000.00 KShs16,000.00

PRODUCT HIGHLIGHTS

  • Micro-ATX Form Factor
  • Intel H110 Chipset
  • Intel LGA 1151 Socket
  • 2 x Dual-Channel DDR3-1600/1333
  • 4 x SATA III 6 Gb/s Ports
  • 1 x PCIe 3.0/2.0 x16 & 2 x PCIe 2.0 x1
  • 1 x PCI Slot
  • Realtek RTL8111H Gigabit LAN Controller
  • Realtek ALC887 7.1-Channel HD Audio
  • ASUS 5X Protection II

Share:

Compare

Asus H110M-D D3 Motherboard (Socket 1151, DDR3, S-ATA 600, Micro ATX, PCI Express 3.0, USB 3.0, Stainless Steel Back I/O, DIGI, VRM)

The H110M-C D3 Motherboard from ASUS is designed to fit in cases that support a micro-ATX form factor. The 9.6 x 7.2″ H110M-C D3 supports 6th Generation (Skylake) Intel Core i7, i5, i3, Pentium, and Celeron processors, the LGA 1151 socket, as well as the Intel H110 chipset. This motherboard supports Windows 10 (64-bit), 8.1 (64-bit), and 7 (64 and 32-bit).

The micro-ATX form factor of the H110M-C D3 has 2 x DIMM slots that can support up to 32GB of non-ECC unbuffered DDR3 RAM, as well as dual channel memory architecture and Extreme Memory Profile (XMP) memory modules. The supported memory speeds are DDR3 1600 and 1333 MHz memory modules. The H110M-C D3 has a total of 4 x SATA III 6 Gb/s ports, 1 x PCIe 3.0/2.0 x1 slot (running at x16), 2 x PCIe 2.0 x1 slots, 1 x PCI slot, 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports at mid-board), 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 at mid-board), and 2 x PS/2 ports. Using the Realtek ALC887 codec, it can support 7.1-channel HD audio, or 8-channel HD audio if the chassis has an HD audio module in the front panel.

The H110M-C D3 has integrated Intel HD graphics support with 1 x DVI-D port and 1 x VGA port. It can use up to 1,024MB of shared memory and also supports Intel Quick Sync Video and Intel Clear Video HD. Its DVI-D and VGA port can both support a maximum resolution of 1920 x 1200 @ 60 Hz.

The H110M-C D3 has also been designed with LANGuard, overvoltage protection, DRAM overcurrent protection, a stainless-steel backplate, device compatibility for over 1,000 devices, UEFI BIOS, over 7,000 hours of testing, Fan Xpert, AI Suite 3, and more. This motherboard is protected by a limited 3-year warranty and includes an I/O shield and 2 x SATA III 6 Gb/s cables.

Stability

5X Protection II
– Surge-Protected Networking
– Overvoltage Protection
– ESD Guards
– Overcurrent Protection
– Stainless-Steel Back I/O
LANGuard
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges
Overvoltage Protection
A circuit design with built-in voltage regulators to help protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies
DRAM Overcurrent Protection
Onboard resettable fuses help prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected devices

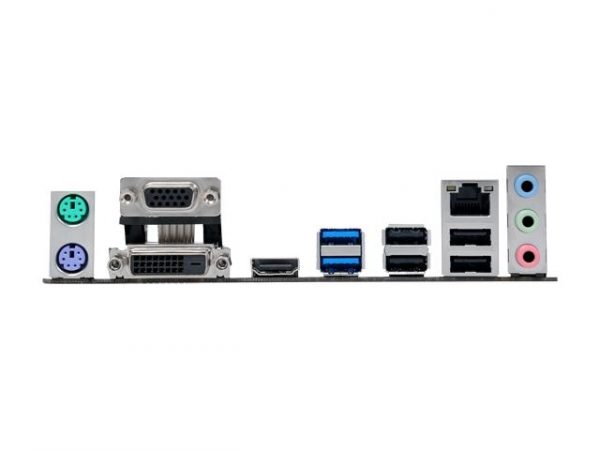

Stainless-Steel Back I/O
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that’s up to three times (3x) longer than ordinary panels

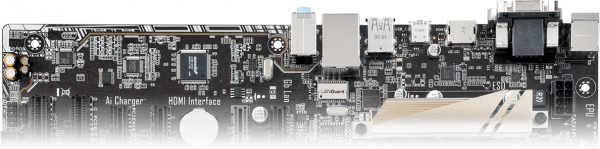

ESD Guards
Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to ±10kV for air discharge and ±6kV for contact discharge. ASUS employs an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity
1,000+ Compatible Devices
Including CPUs, memory modules, graphics cards, and more
DDR3/3L Compatibility
More flexibility, more compatibility – support for DDR3 and DDR3L
7,000+ Validation Hours
Extensive testing for extreme reliability, compatibility, and safety

Performance

UEFI BIOS
The mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you’re a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily
EZ Flash 3
Update the BIOS via the Internet and from within the BIOS
S.M.A.R.T
Check up your storages devices’ Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T) logs to gauge reliability and even determine if they’re about to fail
Q-Fan Control
You can configure the fan’s operating speed manually or use the pre-configured fan profiles to select Standard, Silent, Turbo, or Full Speed modes
My Favorites
Quickly find tuning options and add preferred tools to the list
EZ Mode
Intuitive Graphical Fan Control:
Fine-tune individual fans simply by dragging a curve with the mouseEZ XMP:
Improve your DRAM performance with a clickSATA Information:
View SATA port details for easy device recognition

Fast Clock Adjustment:
Use mouse controls to change the time and date

Advanced Mode
Last Modified Log:
Track last change and save preferred profiles onto a USB drive
<br? <b=””>SATA Port Renaming:
Rename SATA ports for easy identification

Transfer Speed

Front Panel USB 3.0
A header allows for two USB 3.0 ports on the front panel, right where you need them. Experience data-transfer speeds up to 10x faster than USB 2.0 with plug-and-play connectivity, and no more back-breaking contortions in the hunt for hard-to-reach rear ports

PC DIY

Safe Motherboard Mounting
Fitting your ASUS motherboard is now safer than ever. The comprehensive component-free ‘safe zones’ around every case-mounting hole minimizes the risk of damage and short circuits caused by contact – so you’ll assemble your PC with total confidence
Q-Slot
The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly and the graphics card will pop out
Q-DIMM – Memory Removal
Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out

Optimized Cooling

Fan Xpert
Fan Xpert helps ensure every fan achieves a balance of cooling performance and low noise – and with our 100 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization

One-Stop Control

AI Suite 3
ASUS AI Suite 3 offers a user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages, and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities

Intel CPU and Chipset Features

Intel H110 Express Chipset
The Intel Express chipset is a single-chipset design that supports 6th-generation Intel LGA 1151 Core i7/Core i5/Core i3/Pentium/Celeron processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to four USB 3.0 ports for up to ten times faster transfer than USB 2.0. Moreover, the Intel H110 Express chipset also supports iGPU functions, letting users enjoy Intel integrated graphics performance
Ready for 6th-generation Intel LGA 1151 Core i7/Core i5/Core i3/Pentium/Celeron Processors
This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA 1151 package, with graphics, memory, and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, dual channel (2 DIMM) DDR4 memory, and 16 PCI Express 3.0/2.0 lanes for great graphics performance.
