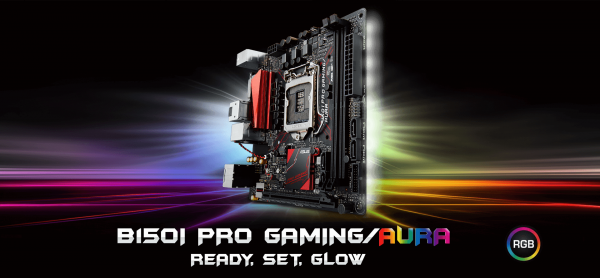

ASUS ROG B150I PRO GAMING LGA 1151 Mini ITX Intel Motherboard

Rating

Availability: In stock

Compact gaming punch with awesome RGB lighting

LGA1151 socket for 6th-genereation Intel® Core™ i7 / Core i5 / Core i3, Pentium® and Celeron processors
Dual-channel DDR4 2133 support
SupremeFX: Flawless audio that makes you part of the game
Sonic Radar ll: Scan and detect your enemies to dominate
Intel Gigabit Ethernet and LANGuard: Top-speed protected networking
RAMCache: Speed up your game loads
Gamer’s Guardian: Highly-durable components and smart DIY features
M.2: Ultra-speedy transfers for faster gaming

Compare

ASUS ROG B150I PRO GAMING/WIFI/AURA LGA 1151 Intel B150 HDMI SATA 6Gb/s USB 3.0 Mini ITX Intel Motherboard

Learn more about the ASUS B150I PRO GAMING/WIFI/AURA

Model

Brand: ASUS

Series: ROG

Model: B150I PRO GAMING/WIFI/AURA

Supported CPU

CPU Socket Type: LGA 1151

CPU Type: Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)

Supported CPU Technologies: Turbo Boost Technology 2.0

Chipsets

Chipset: Intel B150

Onboard Video

Onboard Video Chipset: Integrated Graphics Processor – Intel HD Graphics support
Multi-VGA output support: HDMI, DVI-D ports
Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz
Supports DVI-D with max. resolution 1920 x 1200@60Hz
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Maximum shared memory of 1024MB

Memory

Number of Memory Slots: 2×288pin

Memory Standard: DDR4 2133

Maximum Memory Supported: 32GB

Channel Supported: Dual Channel

Expansion Slots

PCI Express 3.0 x16: 1 x PCI Express 3.0 x16 slot (at x16 mode)

Storage Devices

SATA 6Gb/s: 4 x SATA 6Gb/s

M.2

1 x M.2 Socket 3 with M key, type 2242*/2260/2280 storage devices support (both SATA & PCIE x4 mode)

* Support with M.2 2242 mounting kit.

Onboard Audio

Audio Chipset: SupremeFX 8-Channel High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 112dB SNR stereo playback output
Audio Features:
– SupremeFX Shielding Technology
– Headphone AMP
– Optical S/PDIF out port at back panel
– Sonic Radar II

Audio Channels: 8 Channels

Onboard LAN

LAN Chipset: Intel Gigabit LAN
Anti-surge LANGuard
GameFirst technology

Max LAN Speed: 10/100/1000Mbps

Wireless LAN: Speedy Wi-Fi 802.11 a/b/g/n/ac supports dual frequency band 2.4/5 GHz with MU-MIMO support

Bluetooth: Bluetooth v4.1

Rear Panel Ports

PS/2: 1 x PS/2 keyboard/mouse port

Video Ports: 1 x DVI-D port

HDMI: 1 x HDMI

RJ45: 1 x RJ45

USB 3.0: 1 x USB 3.0 Type C port
2 x USB 3.0/2.0 ports

USB 1.1/2.0: 2 x USB 2.0

S/PDIF Out: 1 x Optical

Audio Ports: 8-channel audio I/O ports

Antenna Connectors: 2 x Wi-Fi antenna ports

Internal I/O Connectors

Onboard USB: 1 x 19-pin USB 3.0/2.0 connector supports additional 2 USB 3.0/2.0 port
1 x USB 2.0/1.1 connectors support additional 2 USB 2.0/1.1 ports

Other Connectors: 1 x System panel connector
1 x Front panel audio connector (AAFP)
1 x CPU Fan connector (4-pin) for both 3-pin(DC mode) and 4-pin (PWM mode) CPU coolers control with auto detection support
1 x Water pump connector (4-pin)
1 x Chassis Fan connectors (4-pin) for both 3-pin (DC mode) and 4-pin (PWM mode) coolers control
1 x Speaker header
1 x TPM header
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x Clear CMOS jumper (2-pin)

Physical Spec

Form Factor: Mini ITX

Dimensions (W x L): 6.7″ x 6.7″

Power Pin: 24 Pin

Features

Features

ASUS Gaming Features:
Gamer’s Guardian
– DIGI+ VRM
– DRAM Overcurrent Protection
– ESD Guards on DVI, LAN, Audio, KBMS and USB 3.0/2.0 ports
– Highly Durable Components
– Stainless Steel Back I/O
– Q-Design (Q-Shield, Q-DIMM, Q-LED, Q-Connector (cable))
Performance Level Up
– DIGI+ VRM
– AI Suite 3
– Fan Xpert 2+ featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
– UEFI BIOS EZ Mode (CrashFree BIOS 3, EZ Flash 3)
– RAMCache: Speed your game loads

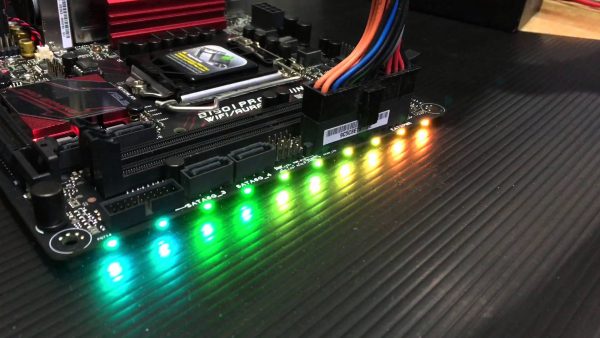

Aura: RGB lighting control
ASUS Exclusive Features
– ASUS CPU-Z
– USB 3.0 Boost featuring speedy USB 3.0 transmission
– AI Charger
– Disk Unlocker
– Push Notice
– HyStream
– Media StreamerBIOS features:
128MB Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory informationManageability:
WfM 2.0, DMI 3.0, WOL by PME, PXE

Support DVD:
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)

Operating System Support:
Windows 10*
Windows 8.1*
Windows 7
* 64-bit supported only

Packaging

Package Contents: Accessories:
2 x Serial ATA 6.0Gb/s cables
1 x M.2 2242 mounting kit
1 x Wi-Fi 2T2R Antenna
1 x User Manual
1 x I/O Shield
1 x M.2 Screw package
1 x CPU Installation Tool
1 x PRO GAMING cable labels
1 x pack of cable tie
1 x Support DVD
