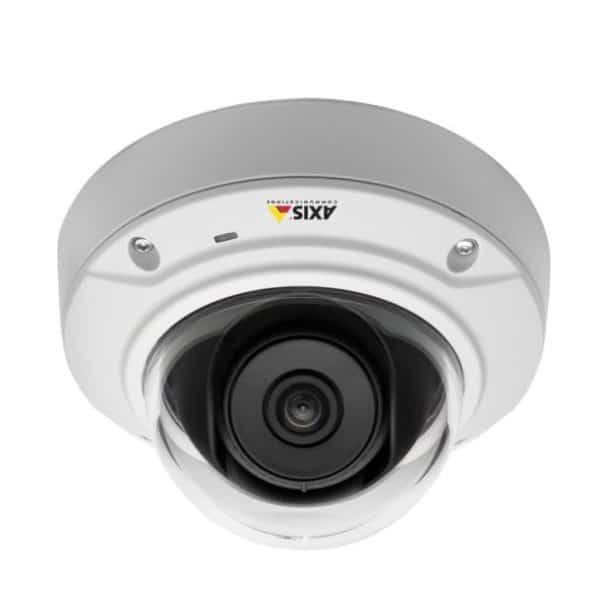

Axis M3044-V 720p Network Mini Dome Camera

Rating
Availability: In stock

M3044-V Fixed Dome IP Camera, Max. HDTV 720p Resolution at 30 FPS with WDR

If you want an affordable fixed mini dome surveillance camera that offers excellent video quality, this is it. AXIS M3044-V is perfect for stores, hotels, schools, banks and offices.

  • HDTV 720p video quality
  • Wide Dynamic Range (WDR) for good detail in bright and dark areas
  • Axis’ Zipstream technology – saves bandwidth without sacrificing quality
  • Ultra-compact and discreet design
  • Fast, easy, cost-effective installation
  • Supports intelligent analytics
Compare

AXIS M3044-V Network Camera | Axis Communications

The M3044-V 720p Network Mini Dome Camera from Axis Communications uses a 1/3″ progressive-scan CMOS sensor for 1280 x 720 resolution at 30 fps, and it features a 2.8mm fixed lens for an 82° horizontal field of view. Additionally, you can pan the camera ±177°, tilt it ±76°, and rotate it ±176° for easy angle adjustments. Wide dynamic range offers high-quality images in ambient lighting, and color, brightness, sharpness, contrast, and exposure control settings allow you to configure your camera based on various environments. The camera also comes with built-in analytics, such as motion detection and an active tampering alarm. When these events occur, the camera will send you an email notification or store video recordings of the event to your edge storage.

The camera compresses footage using H.264 and MJPEG formatting, maximizing your bandwidth and storage. Additionally, video can be streamed in multiple individual streams, and frame rates and bandwidth are controllable for further customizing your network. A microSD slot supports on-site recording and the camera can also record to a dedicated NAS. The network is secured with a number of safety features, including password protection, IP address filtering, and HTTPS encryption. PoE technology allows you to transfer both data and power over the same Ethernet cable, minimizing the amount of cables needed during installation, and the camera is IP42-rated water- and dust-resistant and IK08-rated impact-resistant for use outdoors and in high-risk areas.

  • HDTV 720p video quality
  • Wide Dynamic Range (WDR) for good detail in bright and dark areas
  • Axis’ Zipstream technology – saves bandwidth without sacrificing quality
  • Ultra-compact and discreet design
  • Fast, easy, cost-effective installation
  • Supports intelligent analytics

Axis Communications M3044-V Specs

Camera

Image Sensor 1/3″ progressive-scan RGB CMOS
Lens 2.8mm fixed
Aperture f/2.0
Focus Fixed
Iris Fixed
Lens Mount M12 mount
Field of View Horizontal: 82°
Vertical: 44°
Light Sensitivity 0.25 lux at 50 IRE f/2.0
Shutter Time 1/32,500 to 1/5 seconds
Angle Adjustment Pan: ±177°
Tilt: ±76°
Rotation: ±176°
Can be directed in any direction to see the wall/ceiling

Video

Compression H.264 (MPEG-4 Part 10/AVC) Main, Baseline, and High Profiles, MJPEG
Resolutions 1280 x 720 to 320 x 240
Frame Rate 25/30 fps with power line frequency 50/60 Hz
Streaming Multiple, individually configurable streams in H.264 and MJPEG
Controllable frame rate and bandwidth
Axis Zipstream technology in H.264, VBR/MBR H.264
Image Settings Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Backlight compensation, WDR, Text and image overlay, Mirroring of images, Privacy masking
Rotation: 0°, 90°, 180°, 270° including corridor format

Network

Security Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log, Centralized certificate management
Supported Protocols IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
System Integration
Application Programming Interface Open API for software integration, including VAPIX and AXIS Camera Application Platform
AXIS Video Hosting System (AVHS) with One-Click Connection
ONVIF Profile S
Analytics Axis video motion detection 3, Active tampering alarm
Support for AXIS Camera Application Platform, enabling installation of Axis Cross Line Detection and third-party applications
Event Trigger Analytics, Edge storage events
Event Action File Upload: FTP, SFTP, HTTP, and HTTPS network share and email
Notification: Email, HTTP, HTTPS, and TCP, and SNMP trap
Video recording to edge storage
Send video clip
Pre- and post-alarm video buffering
Overlay text
Data Streaming Event data
Built-In Installation Aids Pixel counter

General

Casing Encapsulated electronics, captive screws (Torx 10)
IP42 water- and dust-resistant, IK08-rated impact-resistant
Polycarbonate, ABS casing
PVC free
Memory 512 MB RAM, 256 MB Flash
Power Power Over Ethernet IEEE 802.3af/802.3at Type 1, Class 1
Typical: 2.5 W, Max: 2.9 W
Connectors RJ45 for 10Base-T/100Base-TX PoE
Storage microSD/SDHC/SDXC slot supports edge storage
Support for recording to dedicated network-attached storage (NAS)
Operating Conditions 32 to 113°F / 0 to 45°C
Humidity: 15 to 85% RH (non-condensing)
Storage Conditions -40 to 158°F / -40 to 70°C
Humidity: 15 to 85% RH (non-condensing)
VMS Software AXIS Camera Companion, AXIS Camera Station, video management software from Axis’ application development partners
Approvals EN 55032 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A and B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class B, KN35, IEC/EN/UL 60950-1, IEC/EN 60529 IP42, IEC/EN 62262 Class IK08
Languages English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese
Dimensions 4 x 2.2″ / 101 x 56 mm
Weight 6 oz / 170 g

Packaging Info

Package Weight 0.65 lb
Box Dimensions (LxWxH) 5.1 x 4.7 x 2.9″
