Blackmagic Design URSA Mini 4K Digital Cinema CINEURSAM40K/EF
Blackmagic Design URSA Mini 4K Digital Cinema Camera EF-Mount CINECAMURSAM40K/EF
The world’s first digitalfilm camera with professionalbroadcast camera features and controls!
Now in a smaller, more handheld-friendly form factor, the URSA Mini 4K Digital Cinema Camera from Blackmagic Design can record cinematic images with its Super-35mm 4K, global-shutter sensor with 12 stops of dynamic range. The ergonomic body design is balanced and can be used for many different styles of filmmaking. The EF-Mount is compatible with a plethora of popular lenses, opening different aesthetic options. A rosette on the side of the camera accepts the included side handle, which can control Start/Stop via a LANC connection.
- Super-35mm CMOS Sensor
- 4000 x 2160 Video up to 60p
- Compressed & Uncompressed Raw Recording
- Ready-to-Edit ProRes 444 + 422 Recording
- Dual CFast 2.0 Memory Card Slots
- 12G-SDI Output, Timecode & REF Input
- 1080p Flip-Out Screen
- Touchscreen Interface
- 2 x XLR Audio Inputs with Phantom Power
- Magnesium Alloy Body
Blackmagic Design URSA Mini 4K Digital Cinema

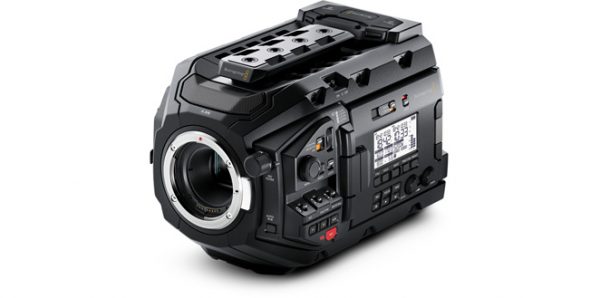

Introducing URSA Mini Pro, a professional digital film camera that combines the incredible image quality of URSA Mini 4.6K with the features and controls of a traditional broadcast camera! You get a massive number of controls on the side of the camera which are positioned so you can adjust most settings by feel, and without ever having to take your eyes off the action. URSA Mini Pro also features built in ND filters, a status display and a revolutionary new interchangeable lens mount that lets you change between EF photographic lenses or PL, B4 and F mount lenses. URSA Mini Pro records up to 60fps and features dual CFast 2.0 recorders as well as dual SD/UHS-II Card recorders. URSA Mini Pro is lightweight and comfortable enough to use all day, has controls that are extremely fast to use, and image quality that’s far superior to broadcast cameras costing ten times more!
Digital Film Quality for Every Project
The perfect camera for digital film,broadcast, live production and more!
URSA Mini Pro is “three cameras in one” because it combines high end digital film quality with the features and controls broadcasters need. It’s ideal for any kind of work from high end feature films, television shows and commercials, to independent films, broadcast news, and even studio and live production! URSA Mini Pro features beyond Ultra HD 4.6K resolution plus 15 stops of dynamic range, all with a super wide color gamut and DaVinci color science so you always capture cinematic quality images. The super compact body features broadcast camera controls and advanced operating software that make it faster to set up and use than any other camera! Whether you’re on set, on location or shooting run and gun, URSA Mini Pro has the image quality and features you need to work on any type of project!
Two Incredible Models
Choose URSA Mini or URSA Mini Pro models
The URSA Mini family are powerful and robust cameras that are available in five different versions, so you can choose the camera that best suits your needs. Choose the affordable URSA Mini 4K and URSA Mini 4.6K models with cinema quality, fixed EF or PL lens mounts, and dual CFast card recorders. Or choose the all new, advanced URSA Mini Pro 4.6K that adds built in ND filters, an interchangeable lens mount, dual CFast UHS-II SD card recorders and powerful broadcast features and controls!
Revolutionary URSA Design
Big camera features that are fastto use in a lightweight, portable design!
URSA Mini Pro is designed to include everything you need in a handheld camera so you can take anywhere! Unlike cheap plastic cameras, the evenly weighted camera body is made out of a super tough magnesium alloy. It’s a true professional camera with full redundancy on every control, even the power switch! Plus, the familiar broadcast switches and controls allow full setting changes without having to take the camera off your shoulder! There’s an external high visibility LCD status display so you can see critical shooting information, and a 4” foldout touch screen for reviewing shots so you don’t have to carry an extra on‑set monitor! You get professional connections such as 12G‑SDI, XLR audio, a built in high quality microphone and more. The optional electronic viewfinder and shoulder mount kit lets you go from tripod to handheld shooting in seconds, or you can turn URSA Mini Pro into the ultimate live production camera by adding an URSA Studio Viewfinder!
Built in ND Filters
High quality neutraldensity filters with IR compensation!
URSA Mini Pro features high quality neutral density (ND) filters that let you quickly reduce the amount of light entering the camera. The 2, 4 and 6 stop filters have been specifically designed to match the colorimetry and color science of URSA Mini Pro, providing you with additional latitude, even under harsh lighting conditions. This lets you use different combinations of aperture and shutter angle to achieve shallower depth of field, or specific levels of motion blur, in a wider range of situations. The IR filters have been designed to filter both optical wave lengths and IR wave lengths evenly to eliminate IR contamination of the images that most ND filters can suffer from. The ND filters are true optical filters with a precision mechanism that quickly moves them into place when the ND filter dial is turned. The filter settings can even be displayed as either an ND number, stop reduction or fraction on the LCD!
Familiar Broadcast Control
Quickly change settings withouttaking the camera off your shoulder!
Like the world’s best broadcast cameras, URSA Mini Pro features independent controls for direct access to the most important camera settings. Buttons, switches and dials are laid out in a logical order that makes them easy to find by feel while using the viewfinder. This means you’ll be able to adjust settings, add an ND filter or even change frame rate without having to fold out the touchscreen or take the camera off your shoulder.
Interchangeable Lens Mounts
Compatible with EF, PL, B4 and F mount lenses!
Different projects require different lenses, which is why URSA Mini Pro features a new interchangeable lens mount! Imagine shooting regular work using a photography lens but then being able to change to a PL mount cinema lens if you get a high end film job. URSA Mini Pro makes that easy because you can quickly switch between EF, PL, B4 and F mount lenses, making it compatible with the widest possible range of professional lenses. That means you can work with high quality EF or F mount photographic lenses, large PL cinema lenses, and even B4 broadcast lenses, all with the same camera! URSA Mini Pro comes with an EF mount and you can purchase optional PL, B4 and F mounts separately. With URSA Mini Pro, you get a single camera that works with virtually all professional lenses so you can choose precisely the lens you need!
Status Display
See critical shooting information in bright daylight!
The status display is a high visibility LCD screen that’s designed to be easily seen, even in bright light! The status display shows record timecode, locked timecode and reference timecode, along with the current shooting frame rate, shutter angle, aperture, white balance, ISO and IRIS. It also features a battery indicator, card recording status and audio meters for monitoring levels. The screen’s backlight can be turned on when you’re shooting in dimly lit locations, and off when you’re shooting outdoors and in bright light to increase contrast, making it easy to read under any condition!
Cinematic 4.6K Sensor
Capture incredibledigital film images with15 stops of dynamic range!
When it comes to image quality, URSA Mini Pro operates at a higher resolution and dynamic range that goes well beyond traditional motion picture film. You get a 4.6K image sensor that captures up to 4608 x 2592 pixels, which is bigger than full DCI 4K! The sensor features a massive 15 stops of dynamic range, making it perfect for high dynamic range (HDR) projects. The built in active refrigeration ensures maximum dynamic range and low noise so you get incredibly clean pictures with amazing detail in both the dark shadows and bright highlight areas. You can also choose the lower cost URSA Mini 4K model with 12 stops of dynamic range when you don’t need the performance and are on a tighter budget.
Download URSA Mini 4.6K RAW footage
4.6K
Ultra HD Sensor
15 Stops
Wide Dynamic Range
Advanced Colorimetry
Super wide color gamutand precision color science!
URSA Mini Pro features an incredibly wide color gamut that captures more of the visible color spectrum than Rec. 2020, which is vastly larger than the P3 digital cinema color space! Third generation Blackmagic Design color science is used to process the raw sensor data, enabling amazingly rich skin tones, natural color response and enormous amounts of dynamic range. Whether you’re shooting a Hollywood blockbuster, an indie film, high end commercial, or a broadcast television show, URSA Mini Pro’s combination of resolution, dynamic range and color gamut delivers amazingly rich and lifelike images!
High Frame Rate Recording
Capture the action with smooth flowing motion
URSA Mini Pro can shoot at high frame rates and then play it back at the edit frame rate so you get smooth slow motion video that’s crystal clear. You can set the camera’s default shooting frame rate and also specify an “off speed” frame rate. Switching between them is simply done with the touch of a button on the outside of the camera, making it incredibly fast to switch between standard and high frame rate shooting! URSA Mini Pro can capture full resolution 4.6K recordings at up to 60 frames per second!
Non Stop Recording
Works with bothCFast and SD card media!
URSA Mini Pro features both dual CFast 2.0 recorders and dual UHS-II SD card recorders so you can choose the media that works best for you. CFast cards are ideal for full resolution RAW recording, while SD and UHS-II cards are inexpensive and commonly available, making them perfect for recording ProRes Ultra HD files or Blackmagic RAW 8:1 or 12:1 files. Simply choose the media type, insert the cards and start shooting! With dual slots for each media type, you never have to stop recording because when the first card is full, it automatically continues onto the next card. You can even swap the full card for an empty one, all without having to stop recording! URSA Mini Pro can record lossless 12-bit Blackmagic RAW or CinemaDNG files for the highest possible quality, or 10-bit ProRes files for easy post production workflows with minimum storage requirements!
BlackmagicURSA Mini SSD Recorder
Record onto 2.5 inch SSD media!
The optional Blackmagic URSA Mini SSD Recorder lets you record Blackmagic RAW, Cinema DNG or ProRes files onto standard 2.5 inch SSD Media with your URSA Mini or URSA Mini Pro camera! That means you can use commonly available and inexpensive high capacity solid state media! Unlike other types of cards, SSD media is super fast so you can record full resolution 4K and 4.6K 12-bit RAW files. Plus, SSD media comes in much larger sizes so you can record longer without having to change cards! The unique design of the Blackmagic URSA Mini SSD Recorder attaches directly to the back of your URSA Mini or URSA Mini Pro between the camera and the battery. It uses 6G-SDI as a data link to the camera so you don’t have to worry about starting or stopping the SSD recorder. Everything is setup and controlled directly from the camera!
Built in Monitoring
Fold out touch screen formonitoring and camera control!
The built in 4 inch fold out touchscreen URSA Mini Pro and the 5 inch fold out touchscreen on URSA Mini are super bright, high resolution color displays with a wide viewing angle that makes them perfect for monitoring and reviewing shots on set! The screen can also show you a “heads up display” overlay with critical information such as format, frame rate, timecode, ISO and more. You even get a histogram, card recording status indicators and audio meters! The fold out touchscreen lets you use the incredible new URSA Mini operating software so you get super fast access to every camera function, ATEM broadcast switcher integration features for live broadcast, digital slate for metadata management and more!
HUD
Record
Monitor
Audio
Setup
Presets
LUTs
Metadata
Advanced URSA Mini Software
Incredibly fast software withrevolutionary new user interface!
All URSA Mini cameras feature a new user interface that revolutionizes the way you work! The advanced camera operating software lets you use simple tap and swipe gestures to control all features, setup, the digital slate and more. You get powerful and super fast software with a unique heads up display that puts commonly used functions at your fingertips. Simply touch an on screen icon to make changes for things such as audio levels, white balance, shutter angle and more! You’ll instantly see sliders and controls for making adjustments without ever having to navigate through any menus! The new digital slate makes entering metadata faster than ever before with a built in dictionary, predictive entry and on screen keyboard. Using a professional digital film camera has never been faster!
Bluetooth®Camera Control
New API lets you createremote camera control apps!
All URSA Mini Pro cameras feature built in Bluetooth that allows you to send and receive commands from up to 30 feet away. Blackmagic Design has also published a new, open protocol and developer API, along with sample code for an iPad app that can control URSA Mini Pro. Now you can create your own remote camera control solutions, digital slate applications, remote color correction software and more! The possibilities are endless and this technology will enable entirely new workflows that were never before possible. Imagine building an app that can jam sync timecode and trigger all cameras to record to their internal media with matching metadata, all at the same time!
Highly Customizable
Flexible enough to be rigged for any production
Blackmagic URSA Mini cameras are completely customizable so you can create a rig that’s built specifically for your production! You can add accessories like the Blackmagic URSA Viewfinder, URSA Studio Viewfinder, URSA Mini Shoulder Kit and URSA Mini Mic Mount, or choose from hundreds of third party accessories. URSA Mini and URSA Mini Pro have 9 standard ¼” threaded mounting points on the top and bottom of the camera so you can mount it directly to a tripod as well as add accessories such as rails, sliders, matte boxes, microphones, ring lights, batteries and more. Whether you’re building a feature film rig or outfitting the camera for an ENG style shoot, URSA Mini has all of the mount points and connections you need!
High Resolution Viewfinder
Full HD display and glassoptics makes precise focus easy
The optional Blackmagic URSA Viewfinder is designed to be the perfect match for URSA Mini Pro and URSA Mini cameras. You get a high resolution 1920 x 1080 color OLED display matched with precision glass optics, adjustable diopter and built in digital focus chart so you get perfect focus every time. To preserve OLED screen life, there’s a built in sensor so the OLED only turns on when you’re looking through the viewfinder. The Blackmagic URSA Viewfinder is adjustable so it can be used on both the left or the right eye. There’s even a built in record light!
Blackmagic URSAStudio Viewfinder
Turn URSA Mini into a true professional studio camera!
The URSA Studio Viewfinder is a true professional viewfinder for URSA Mini Pro and URSA Mini. You get a bright 7” screen with large handles and variable tension pivot points that let you smoothly adjust the viewfinder’s position and angle, even while you’re live on air. The control knobs and buttons give you direct control of settings so you can keep your eye on the action! Combined with the new software update for URSA Mini, the URSA Studio Viewfinder turns your URSA Mini into the ultimate live production camera! You get support for talkback, tally, and program return, along with remote control of focus, iris, color balance and more, all from your ATEM Switcher!
Professional Connections
Full size, durable connectionsthat work with standard cables
Blackmagic URSA Mini Pro features multiple connections such as 12G‑SDI out, HD-SDI monitoring out, 2 LANC inputs, balanced XLR audio with phantom power, timecode in and reference input. On the front right side of the camera is a 12 pin Hirose control connector for broadcast lenses. There’s also a 4 pin XLR DC and an HD-SDI monitoring output that are located in the perfect position for connecting an optional viewfinder or on set monitor. The 12G‑SDI output handles all formats up to 2160p60 using a single BNC cable, and also switches to 6G-SDI or HD-SDI depending on the shooting format.
Advanced 12G‑SDI
Work with all formats up to2160p60 over a single cable!
12G‑SDI is an incredible 8 times faster than regular HD-SDI which makes it fast enough for Ultra HD video at up to 60 frames per second, all over a single regular SDI cable! The high quality BNC connections are multi rate so it can automatically switch and work with 6G‑SDI, 3G‑SDI, and regular HD‑SDI equipment. That means URSA Mini Pro and URSA Mini are compatible with all of your existing HD and Ultra HD equipment so you can plug it into things like ATEM live production switchers, on set monitors, decks and more!
Professional Audio
Built in productionquality sound recording
URSA Mini Pro has a high quality microphone and professional audio recorder built right in so you don’t have to carry around extra sound equipment! Use the built in stereo microphone to record natural location sound or connect professional microphones using the two XLR wide dynamic range mic inputs. The XLR connections have 48V of switchable phantom power so you can plug in everything from shot gun to wireless clip on mics for capturing every detail of the performance. You can quickly adjust levels using the external knobs and monitor audio using the onscreen audio meters.
Digital Slate
Embedded metadata, storelocation, camera orientation,scene details and more!
The built in touchscreen makes it astonishingly simple to set up and enter metadata for tagging clips. Metadata is saved directly in the video files so you don’t have to worry about managing extra files. You can import the files directly into software like DaVinci Resolve, Final Cut Pro and Avid Media Composer then use the metadata to sort, search and find the clips you need so you can spend more time on creative editing and less time managing mountains of media!
Flexible Power
Compatible with industry standard batteries and power
URSA Mini Pro and URSA Mini cameras include a 4-pin XLR industry standard power connector that works with 12V to 20V external power supplies. That means it’s easy to use the camera with all of your existing power supplies and batteries! All URSA cameras use the same battery power connector and mounting points on the rear of the camera so you can use a wide range of battery plates from manufacturers such as IDX, Blueshape, Anton Bauer and more. You can also add the optional Blackmagic URSA VLock Battery Plate or Blackmagic URSA Gold Battery Plate for using popular V‑Mount and Gold Mount batteries.
Includes DaVinci Resolve Studio
Professional editing andadvanced color grading included!
All URSA cameras include a full version of DaVinci Resolve Studio. DaVinci Resolve Studio is editing and color correction software that features an advanced, multi layer timeline with powerful editing and trimming tools, along with Hollywood’s most advanced creative color correction and creative grading tools! With URSA Mini Pro and DaVinci Resolve, you get a complete post production solution so you’ll be able to shoot amazing images with incredible fidelity, color and dynamic range while retaining every bit of quality. Whether you’re working on a major feature film or a YouTube video, DaVinci Resolve Studio gives you a completely lossless workflow for native editing, color correction and delivery, so your video always looks as good as possible!
Optional Shoulder Mount Kit
From tripod to shoulder and back in seconds
URSA Mini cameras include multiple ¼ inch mount points on the bottom so you can attach it directly to any tripod. When you need to quickly move from tripod to handheld and back, the best solution is to use the optional Blackmagic URSA Mini Shoulder Kit. This kit includes the shoulder pad with built in rosettes, rail mounts and integrated quick lock release attachment points for instantly latching onto the quick release plate without removing the shoulder pad. The kit also includes a top handle for carrying the camera and attaching accessories.
Blackmagic Design URSA Mini 4K Specs
| Image Sensor | |
|---|---|
| Image Sensor Size | 21.12 x 11.88 mm (Super35) |
| Effective Sensor Resolution | 4000 x 2160 |
| Advertised Dynamic Range | 12 Stops |
| Camera | |
|---|---|
| Lens Mount | Canon EF |
| Lens Communication | Yes |
| Built-In ND Filter | None |
| Recording Media | 2 x CFast 2.0 Card Slots |
| Internal Recording | |
|---|---|
| Recording Modes | ProRes 4444XQ 4:4:4 10-Bit: 3840 x 2160p (312.5 MB/s) 1920 x 1080p (62.5 MB/s) ProRes 422HQ 4:2:2 10-Bit: 3840 x 2160p (110 MB/s) 1920 x 1080p (27.5 MB/s) |
| External Recording | |
|---|---|
| Video Output | 4:2:2 10-Bit via SDI/BNC: 3840 x 2160 |
| Display | |
|---|---|
| Display Type | LCD |
| Screen Size | 5″ |
| Touchscreen | Yes |
| Screen Resolution | 1920 x 1080 |
| Power | |
|---|---|
| Battery Type | None |
| Power Connectors | 1 x 4-Pin XLR Input 1 x 12-Pin Molex Input/Output 1 x 4-Pin XLR (12 VDC) Output |
| Environmental | |
|---|---|
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
| General | |
|---|---|
| Accessory Mount | 2 x 15 mm Light Weight Support (LWS) Rods 1 x Battery Plate Mount 1 x 1/4″-20 Female |
| Dimensions | 8.2 x 7.6 x 5.8″ / 21 x 19.3 x 14.7 cm |
| Weight | 5.0 lb / 2.3 kg |
| Packaging Info | |
|---|---|
| Package Weight | 7.85 lb |
| Box Dimensions (LxWxH) | 13.0 x 10.1 x 7.9″ |
