Description:

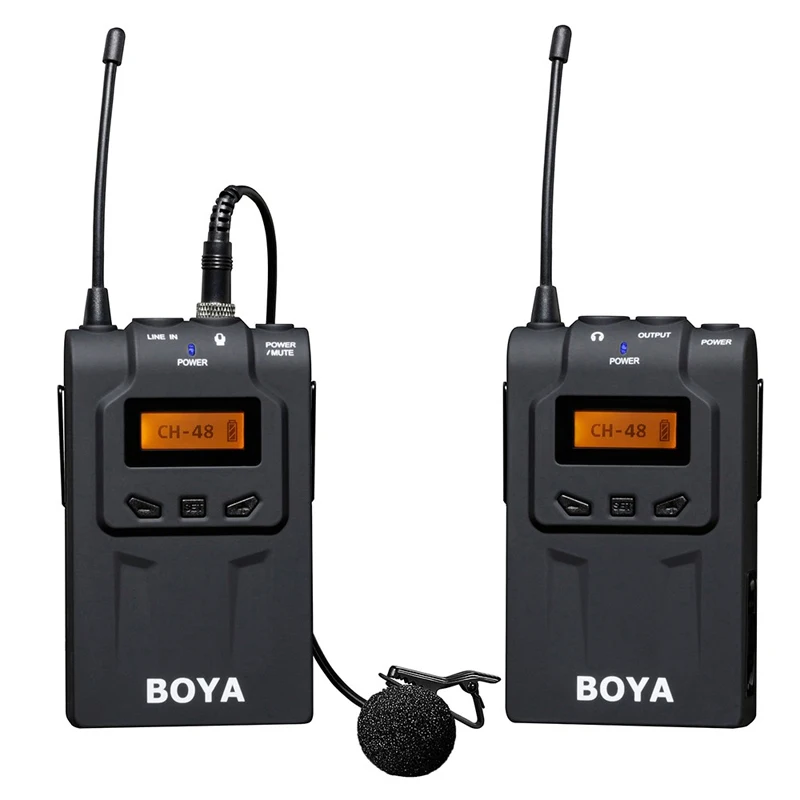

The BOYA BY-WM6 is an UHF wireless microphone system, designed for ENG, EFP, DSLR video, and other professional applications. The receiver and the transmitter are lightweight and simple menu for easy operation.

Features:

Ideal for ENG/EFP, DSLR Video
Compander for High-quality and Clear sound
48 UHF Channels
Mic and Line-in
Easy to use, with display
Selectable Mute function
Camera-Mountable Receiver
Monitoring sound by headphone output ( Receiver )

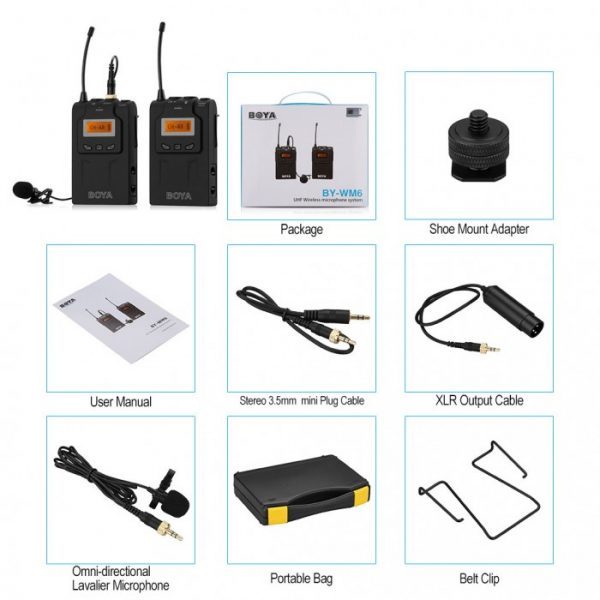

Includes Omni-Directional Lavalier Mic
Includes XLR output cable, Stereo mini plug cable
More than 6 Hours Continuous operation
Operation range can reach up to 100m (without obstacle)
Power Supply: Two (2) AA batteries

Specification:

System

Oscillator type: PLL Synthesized Control Oscillator
Carrier Frequency Range: 584 MHz-608 MHz
Channels: 48
Frequency response: 60Hz-15 KHz+/-3 dB
Operation range: 100m (without obstacle)
Operating temperature: 14° F to 122° F (-10 degree to + 50 degree)
Storage temperature: 14° F to 131° F (-10 degree to +55 degree)

Transmitter

RF output power: 20 mW
Antenna: Flexible
Spurious emission: 250 nW or less
Audio input connector: 3.5mm mini jack
Audio input level: 600 mV-2000 mV
Reference deviation: ±7KHz (-60 dBV, 1 KHz input)
Input frequency range: 20 Hz-20 KHz
Power supply: Two AA batteries
Operation time: 8 hours
Dimensions: (H x W x L) 4.2 x 2.6 x 1.1 inch (10.6 x 6.7 x 2.9 cm)
Weight: 95g (3.4 oz) without batteries

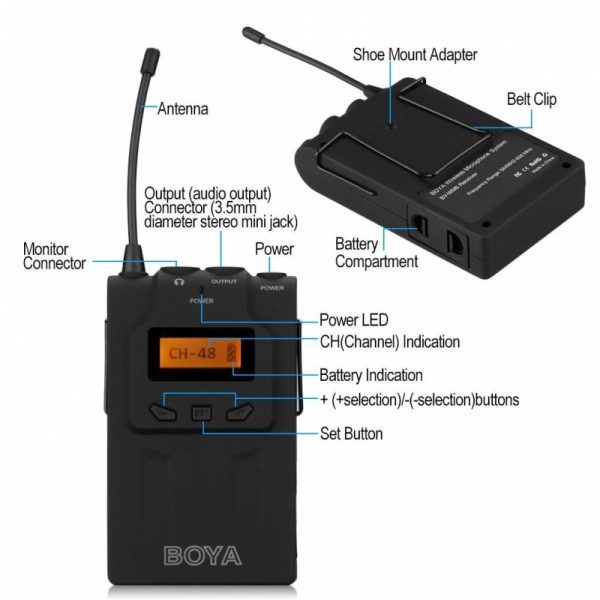

Receiver

Antenna: Flexible
Audio input connector: 3.5mm mini jack
Signal-to-noise ratio: 80 dB
Distortion: 0.8% (-60 dBV, 1 KHz input)
Earphone output level: 60 mW, 32 Ohms/1KHz
Audio output level: 120 mV
Power supply: Two AA batteries
Operation time: 8 hours
Dimensions: (H x W x L) 4.2 x 2.6 x 1.1 inch (10.6 x 6.7 x 2.9 cm)
Weight: 98g (3.5 oz) without batteries

Lavalier Microphone

Transducer: Back electret Condenser
Polar pattern: Omni-directional
Frequency Range: 35Hz ~ 18 KHz
Signal / Noise:74dB SPL
Sensitivity: -30dB +/-3dB / 0dB=1V/Pa, 1 kHz
Connector: 3.5mm locking mini plug
Length: 1.2m
