Cooler Master Elite 120 Advanced – Mini-ITX Computer Case
Features
• Unprecedented airflow for a Mini-ITX case
• 1/3 the size of a standard case
• Stylish aluminum front panel and elegant white coating
• Supports standard length ATX PSUs
• Supports ultra high-end graphics cards, such as AMD HD7990 and NVIDIA GTX 690
• Super Speed USB 3.0 Support
• Features a full size 5.25″ drive bay
• Supports up to 3 HDDs and 4 SSDs (converted from two 3.5″ drive bays) for great expandability
Cooler Master Elite 120 Advanced – Mini-ITX Computer Case with USB 3.0 and Long Graphics Card Support
The Cooler Master Elite 120 Advanced is an ultra compact case with support for full size, high-end desktop components. Unlike conventional mini ITX cases, the Elite 120 Advanced boasts more affordable, quieter, and more efficient full size ATX PSUs. It can accommodate even the largest, ultra high-end VGAs, a 5.25” optical drive, and up to five HDDs or SSDs. Thanks to a smart airflow system featuring two pre-installed fans, the case remains cool and quiet. Topped off with a stylish brushed aluminum front, this is a compact case you won’t want to hide.
STYLISH APPEARANCEMeticulously crafted steel alloy body with brushed aluminum & polymer front face endows this mini-ITX case with a stylish and elegant feel, making it an ideal companion to your home theater system.

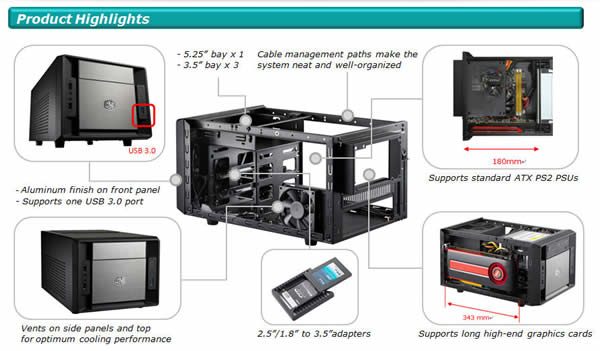

LITTLE FOOTPRINT, MASSIVE CAPABILITYAt 1/3 the size of a standard case, the COOLER MASTER Elite 120 mini-ITX tower case features a sophisticated and smart interior layout to take full size ATX PSU, ultra high-end VGAs (HD7990/GTX690) up to 343mm long, a full size 5.25″ drive, and up to three 3.5″ and four 2.5″ HDDs/SSDs (when converted from two 3.5″ HDD bay).

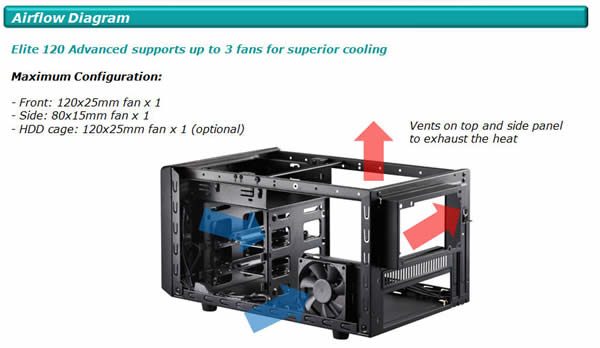

EXCELLENT COOLINGAn 80mm side fan (1200RPM, 20dBA), a 120mm front fan (1200RPM, 19dBA) and a perforated side panel deliver efficient ventilation and effective cooling for the entire system.
USB 3.0 MULTIMEDIA I/O PORTSA USB 3.0 port (internal), two USB 2.0 ports, and mic & headphone jacks on the front panel offer easy access to a range of peripherals.
Specification
| Model | RC-120A-WWN2 |
| Available Color | White (w/ interior black coating) |
| Materials | Appearance: Aluminum & polymer front panel Case body: Steel alloy |
| Dimension | 240 x 207 x 401mm / 9.4 x 8.2 x 15.8 inch (W x H x D) |
| Net Weight | 3.3 kg / 7.3 lbs |
| M/B Type | Mini-ITX |
| 5.25″ Drive Bays | 1 |
| 3.5″ Drive Bays | 3 (hidden) |
| 2.5″ Drive Bays | 4 (hidden; converted from two 3.5″ drive bays) |
| I/O Panel | USB 3.0 x 1 (int.), USB 2.0 x 2, Mic x 1, Audio x 1 (supports AC97 / HD Audio) |
| Expansion Slots | 2 |
| Cooling System | Front:120mm fan x 1, 1200 RPM, 19 dBA; Side: 80x15mm fan x 1, 2000 RPM, 20 dBA HDD cage:120x25mm fan x 1 (optional) |
| Power Supply Type | Standard ATX PS2 |
| Maximum Compatibility | VGA card length: 343mm / 13.5 inch CPU cooler height: 65mm / 2.5 inch PSU length: 180mm/ 7.1 inch (w/ less cable management) 142mm / 5.6 inch (w/ full cable management) |
