DJI™ Goggles Racing Edition
DJI GOGGLES RACING EDITION Dual 1080P HD 2.4/5.8GHz FPV Monitor for Mavic Pro Spark Phantom Inspire
- Inheriting all the functions and dual 1080p HD screens from the original DJI Goggles, DJI Goggles RE support Sphere pano viewing and local video playback, offering an upgraded FPV experience.
- OcuSync Video Transmission Module offers 2.4 and 5.8GHz dual-band digital video transmission with latency as low as 50ms and a maximum control range of up to 7km.

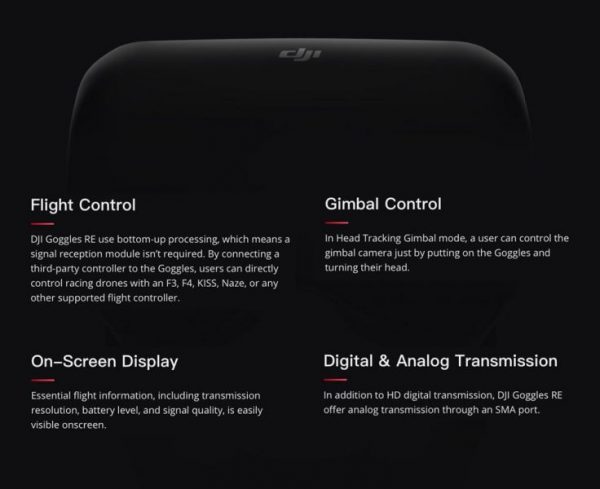

- In Head Tracking Gimbal mode, a user can control the gimbal camera just by putting on the Goggles and turning their head.
- DJI Goggles RE use bottom-up processing, which means a signal reception module isn’t required. By connecting a third-party controller to the Goggles, users can directly control racing drones with an F3, F4, KISS, Naze, or any other supported flight controller.
- With OSD function, essential flight information, including transmission resolution, battery level, and signal quality, is easily visible on screen.
- DJI Goggles RE offer analog transmission via their SMA port.
- Compatible with the Mavic Pro, Spark, Phantom 4 series, and Inspire 2 and other FPV racing drones.
- 3840 * 1080 ultra high definition screen, and 1280 * 960 HD transmission.

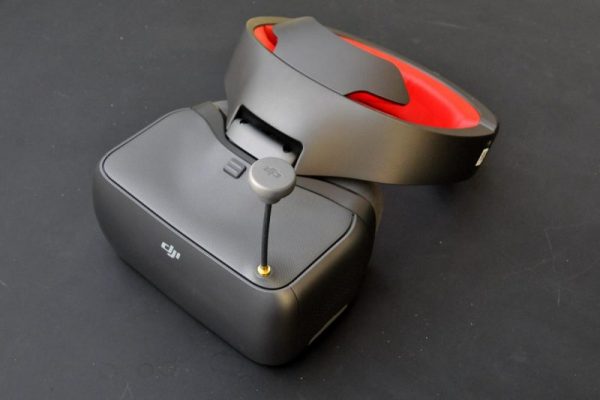

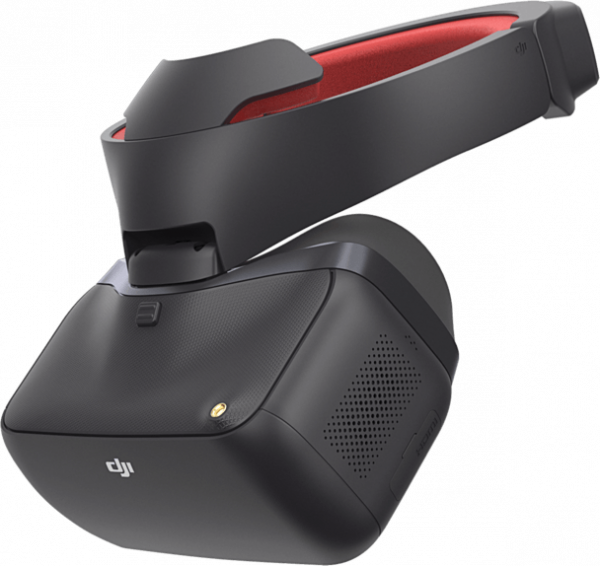

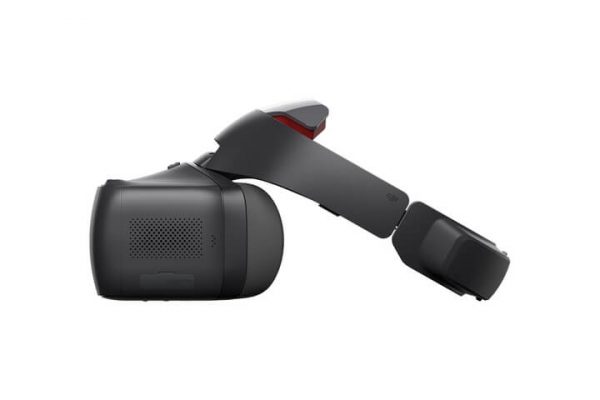

DJI™ Goggles Racing Edition – Black 1080P Immersive FPV
DJI Goggles Racing Edition – An Even Better View From Your Drone
If you want to take your flying experience to a whole new level, these FPV DJI Racing Edition Googles are just the ticket. They will put you in the cockpit in a totally immersive experience where you are the pilot and are even better than the original DJI Goggles.
DJI GOGGLES RACING EDITION
DJI GOGGLES RACING EDITION SPECIFICATIONS
| Weight (Typical) | DJI Goggles RE Body: 502 g; Headband: 500 g |
|---|---|
| Dimensions | DJI Goggles RE Body: 195 × 155 × 110 mm; Headband (folded):255 × 205 × 92 mm |
| Screen Size | 5-inch × 2 |
| Screen Resolution | 3840 × 1080 (single screen: 1920 × 1080) |
| Transmitter Power (EIRP) | 2.4 GHz: 25.5 dBm (FCC); 18.5 dBm (CE); 19 dBm (SRRC) 5.8 GHz: 25.5 dBm (FCC); 12.5 dBm (CE); 18.5 dBm (SRRC)) |
| Live View Modes | 1080p30, 720p60, 720p30 |
| Video Format | MP4 (H.264) |
| Supported Video Play Format | MP4, MOV, MKV (Video format: H264; Audio format: AAC-LC, AAC-HE, AC-3, DTS, MP3) |
| Battery Capacity | 9440 mAh |
| Operating Temperature Range | 32° to 104° F (0° to 40° C) |
| Charger Input | 100-240 VAC, 50 / 60 Hz, 0.5 A |
| Output | 5 V 3 A / 9V 2A / 12 V 1.5 A |
DJI OCUSYNC CAMERA
| Sensor | 1/3” CMOS; Effective pixels: 1.2M |
|---|---|
| Lens | 2.65 mm, f/2.0 |
| Lens Group | 6G + IR |
| Shutter | Global shutter |
| ISO | 100 – 3200 |
| FOV | 148° (D); 111° (H); 79.5° (V) |
DJI OCUSYNC AIR SYSTEM
| Weight | Air Unit: 43.7 g; Camera (cable included): 18.2 g; Pagoda Antenna: 9.4 g; Cylindrical Antenna: 9.4 g; Dipole Antenna: 4.2 g |
|---|---|
| Dimensions | Air Unit: 72 × 33 × 14 mm; Camera: 29.4 × 28.2 × 22.6 mm |
| Communication Frequency | 2.4 GHz / 5.8 GHz |
| Transmitter Power (EIRP) | 2.4 GHz: 25.5 dBm (FCC); 18.5 dBm (CE); 19 dBm (SRRC) 5.8 GHz: 25.5 dBm (FCC); 12.5 dBm (CE); 18.5 dBm (SRRC)) |
| Live View Modes and Min. Latency | 960p50: 70 ms; 720p60: 60 ms; 480p50: 50 ms0 |
| Max. Transmission Distance | 2.4 GHz:7 km (FCC); 4 km (CE); 4 km (SRRC) 5.8 GHz:4 km (FCC); 0.7 km (CE); 4 km (SRRC) |
| Recommended Frequency Band | 5.8 GHz; CE: 2.4 GHz; SRRC: 5.8 GHz |
| Video Format | MP4 (MPEG4) |
| I/O Interface | S.Bus, Micro USB, PPM, UART, MMCX, Micro SD card slot |
| Supported Flight Control Systems | F3, F4, KISS, NAZE |
| Supported Remote Controllers | X9D (Frsky), DEVO 10 (Walkera), T8FG (Futaba),T14SG (Futaba), WTF09sll (WFLY), AT9S (RadioLink) |
| Operating Temperature Range | 32° to 104° F (0° to 40° C) |
| Input Power | 9-16.8 V (3S-4S) |
In The Box
What is in the Box
[1] Attainable when transmission resolution is set to 480p under FCC regulations at 2.4 GHz in ideal conditions. The recommended transmission distance is 2 km for fixed-wing aircraft and 200 m for drone racing.
[2] Camera Module and OcuSync Video Transmission Module sold separately.
[3] 720p 60 fps and 480p 50 fps transmission are also supported.
[4] 12 selectable transmission channels are available at 5.8 GHz and seven channels are available at 2.4 GHz.
[5] Supported with both OcuSync and analog video transmission.
[6] OcuSync Video Transmission Module and Camera Module are required.
