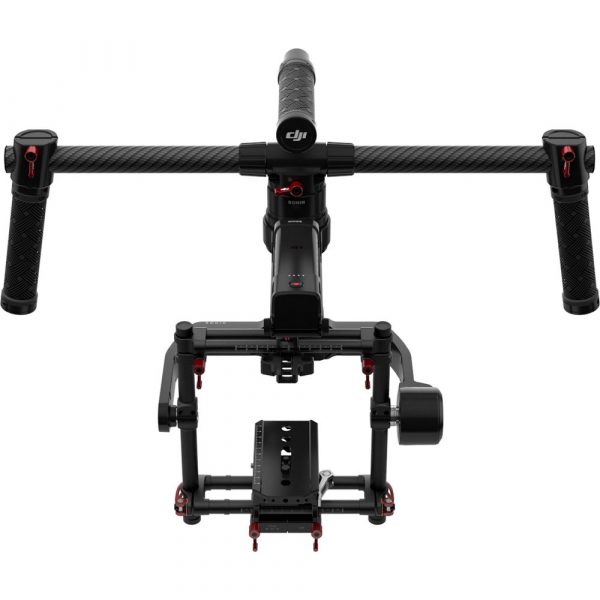

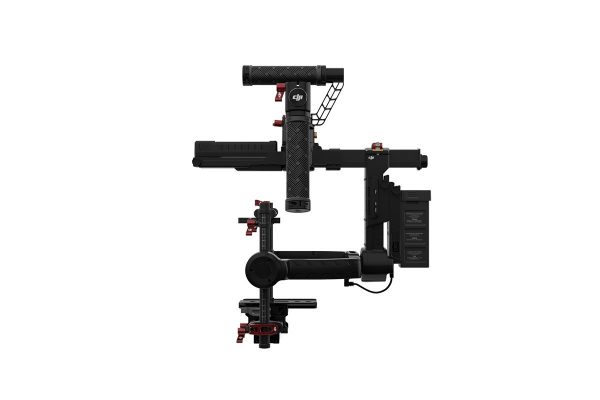

DJI™ Ronin-MX
DJI Ronin-MX Professional 3-Axis Handheld Gimbal Stabilizer | DJI Ronin MX

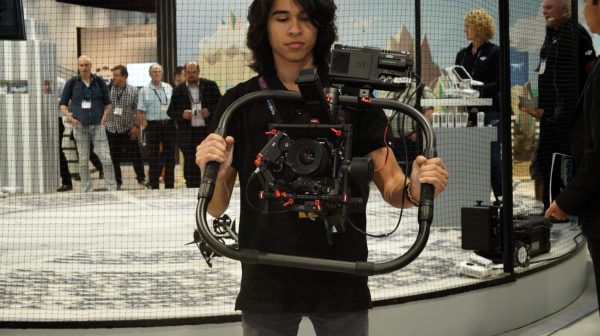

The Ronin-MX from DJI is dual-use gimbal suitable both for mounting on the Matrice 600 aerial platform as well as deployment closer to the ground. Improving over the Ronin-M, it features magnesium construction to yield high rigidity while keeping the weight down. The gimbal is suitable for cinema cameras, mirrorless cameras, and DSLRs weighing up to 10 pounds. Out of the box it supports two-operator operation, and includes a radio controller (transmitter) for the camera operator. There is also an optional Thumb Controller (available separately) for solo operation. When installed on the Matrice 600 aircraft, the gimbal can be controlled via the DJI GO app. An included universal mounting adapter allows it to be adapted for use with jibs, car mounts, and various other types of camera support equipment. There is also a handlebar for handheld use.
• Compatible with DJI M600

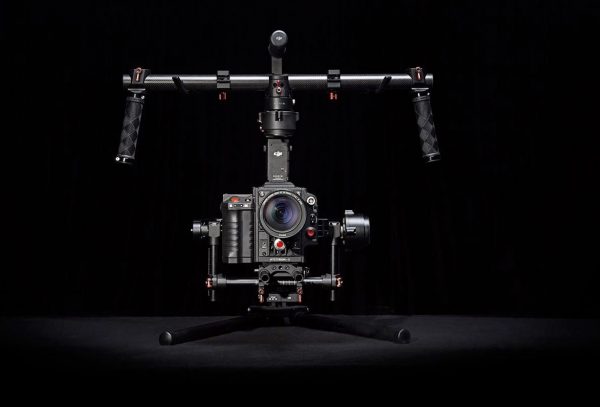

• Supports RED EPIC, ARRI ALEXA Mini and more cameras
• Designed for stability in high G-force environments
• 5 minute set-up
• Professional 3-axis handheld stabilization
• 3 modes of operation: Upright, Underslung, Briefcase
• Auto Tune Stability (ATS) for rapid balancing
• SmoothTrack™ movement smoothing
DJI™ Ronin-MX 3-Axis Handheld Gimbal Stabilizer
GENERAL
| Built-In Functions |
|
|---|
MECHANICAL & ELECTRICAL CHARACTERISTICS
| Working Current | Static current: 300mA (@16V) Dynamic current: 600mA (@16V) Locked motor current: Max 10A (@16V) |
|---|---|
| Operating Temperature | 5° F ~ 120° F (-15° C ~ 50° C) |
| Weight | Including handle bar: 6.11 lb (2.77 kg) Including vibration absorber: 4.74 lb (2.15 kg) |
| Gimbal Dimensions | Excluding handle bar : 280 mm (W) x 370 mm (D)x 340 mm (H) Including handle bar : 560 mm (W) x 370 mm (D) x 440 mm (H) |
PERIPHERAL
| Camera Tray Dimensions | Maximum depth from the center of gravity on camera base plate: 120mm Maximum height measured from top of camera base plate: 130mm Maximum width: 160mm |
|---|---|
| Accessory Power Connections | 12V Regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1 |
| GCU Input Power | 4S Ronin-M Battery |
| Connections | 2.4GHz Remote Controller, Bluetooth 4.0, USB 2.0 |
| PC Assistant Software Requirements | Windows XP or above; Mac OS X 10.9 or above |
| Mobile Assistant Software Requirements | iOS 7.1 or above; Android 4.3 or above |
WORKING PERFORMANCE
| Load Weight (Reference Value) | 10 lb (4.5 kg) |
|---|---|
| Angular Vibration Range | ± 0.02° |
| Maximum Controlled Rotation Speed | Pan axis: 200°/s Tilt axis: 100°/s Roll axis: 30°/s |
| Mechanical Endpoint Range | Pan axis control: 360° Tilt axis control: +270° to -150° Roll axis control: ± 110° |
| Controlled Rotation Range | Pan axis control: 360° Tilt axis control: +45° to -135° Roll axis control: ± 25° |
