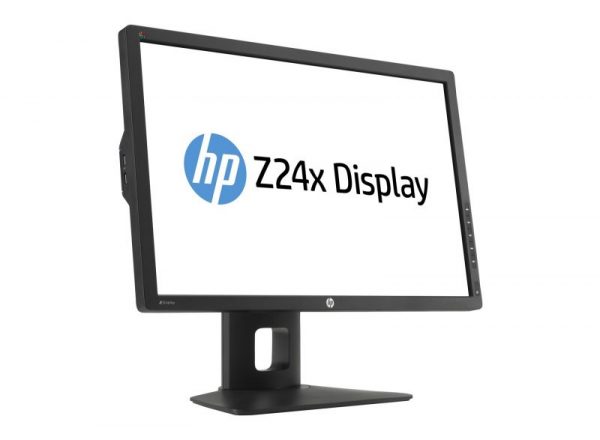

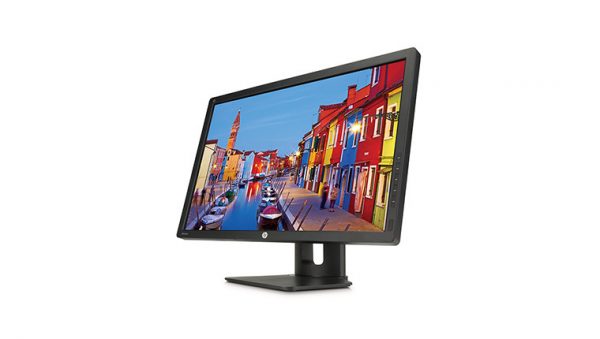

HP DreamColor Z24x 24 inch Monitor
- LED monitor
- 24″ (24″ viewable)
- 1920 x 1200
- AH-IPS
- 350 cd/m²
- 1000:1
- 6 ms
- HDMI
- DVI-D
- 2xDisplayPort
- black
HP E9Q82A8 DreamColor Z24x Professional – LED monitor – 24 inch – 1920 x 1200 – AH-IPS – 350 cd/m2 – 1000:1 – 5000000:1 (dynamic) – 6 ms – HDMI, DVI-D, 2xDisplayPort – black
Key Specifications
Screen Size
24″
Panel type
IPS technology, Backlight LED
Native resolution
WUXGA (1920 x 1200 @ 60 Hz)
Brightness
350 cd/m
Contrast ratio
1000:1 static; 5000000:1 dynamic
Response rate
20 ms on/off; 6 ms gray to gray
View angle
178° horizontal; 178° vertical
Product overview
Turn on your creativity with a premium display.
Bring your dreams to life with a 24-inch diagonal DreamColor panel that produces up to a billion colors from a massive color gamut covering 99% of Adobe® RGB.
The power tool for your color workflow.
Experience push-button color space selection as the HP DreamColor Engine 2 powers through your content with a bit depth of 10 bit (8+2 FRC).1
Easy color customization at your fingertips.
Use the optional HP DreamColor Calibration Solution2 to recalibrate any preset or create your own color space.
Key Features
Premium image quality for color professionals.
Get pro-class color quality with digital cinema-class gamuts and great views from anywhere in the room with wide-angle IPS.
Bring your dreams to life
Enjoy a bit depth of 10 bit (8+2 FRC) that produces 1,024 gray levels per channel—twice that of standard displays—and up to a billion colors, all driven by the HP DreamColor Engine 2.
Vision-to-production precision
Create your own custom color space and calibrate any of the five color space presets—sRGB, Adobe®RGB, BT.709, User and Native—with the optional HP DreamColor Calibration Solution.
Stay focused
Eliminate distractions and accelerate productivity in low-light environments with the HP Night Vision UI’s auto-fade button backlights and four programmable hotkeys.
Device-friendly connectivity
Connect your display to a PC, workstation, and range of digital video devices with DVI, DisplayPort, and HDMI inputs and a 4-port USB hub.
Designed-in comfort

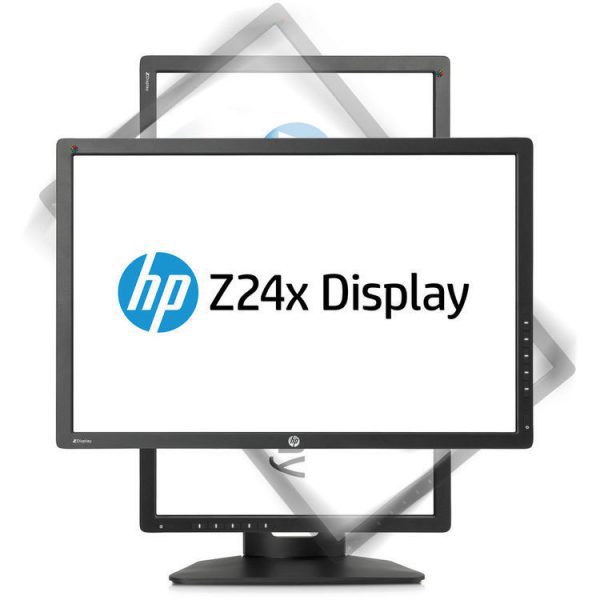

Find your most comfortable position with adjustable height, swivel, and tilt settings. Pivot the display into portrait mode when working in long documents or vertical designs, or use in a dual-screen setup.
Customize your workspace.
Create a clean, compact all-in-one with the optional HP Thin Client Mount Kit that combines a display and thin client.
Designed with the environment in mind.
Be a better consumer with a display that has environmentally responsible components that include low halogen3, arsenic-free glass, and mercury-free backlights.
Breathe easy.
Rest assured that your IT investment is supported by a three-year standard limited warranty. Select an optional HP Care service4 to extend your protection up to 5 years.
In the box
- Monitor with stand
- AC power cord
- USB cable
- DisplayPort 1.2 cable
- DVI-D cable
- DVD documentation kit
- Factory calibration report
Specifications
| Display size (diagonal) | 24″ |
| Aspect ratio | 16:10 |
| Resolution (native) | WUXGA (1920 x 1200 @ 60 Hz) |
| Pixel pitch | 0.27 mm |
| Brightness | 350 cd/m² |
| Contrast ratio | 1000:1 static 5000000:1 dynamic |
| View angle | 178° horizontal 178° vertical |
| Response time | 20 ms on/off 6 ms gray to gray |
| Product color | Black |
| Tilt and swivel angle | Tilt: -5 to +20° Swivel: ±45° Pivot rotation 90° |
| Display features | Plug and Play Anti-glare User programmable Language selection On-screen controls LED Backlights In plane switching |
| Physical security | Security lock ready |
| Display Input Type | 1 DVI-D (with HDCP support) 1 HDMI (with HDCP support) 1 DisplayPort 1.2 in (with HDCP support) 1 DisplayPort 1.2 out (with HDCP support) |
| Ports | 5 USB 3.0 (one upstream, four downstream) 2 DreamColor ports 1 analog audio output |
| Weight | 15.4 lb5 |
| Minimum dimensions (W x D x H) | 22 x 2.6 x 14.4 in |
| Product dimensions with stand (W x D x H) | 22 x 9.4 x 20.7 in |
| Power consumption | 84 W (maximum), 58 W (typical), > 0.5 W (standby) |
| Operating temperature range | 41 to 95°F |
| Operating humidity range | 20 to 80% RH |
| Environmental | Arsenic-free display glass Mercury-free display backlights Low halogen |
| What’s in the box | Monitor with stand AC power cord USB cable DisplayPort 1.2 cable DVI-D cable DVD documentation kit Factory calibration report |
| Warranty | Protected by HP, including a 3-year standard limited warranty. Optional HP Care Pack Services are extended service contracts that extend your protection beyond the standard warranties. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit www.hp.com/go/cpc. HP services are governed by the applicable HP terms and conditions of service provided or indicated to Customer at the time of purchase. Customer may have additional statutory rights according to applicable local laws, and such rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty provided with your HP Product. |
TECHNICAL SPECIFICATIONS| Additional Attributes | ||||
| Swivel Angle: | 90 | |||
|
|
||||
| Cabinet | ||||
| Chassis Built-in Devices: | USB 3.0 hub | |||
|
|
||||
| Cable | ||||
| Connectivity Details Length: | 6 ft | |||
| Connectivity Details Type: | DisplayPort cable | |||
|
|
|
|
||
| Connectivity Details Type: | DVI cable | |||
|
|
|
|
||
| Connectivity Details Type: | SuperSpeed USB cable | |||
|
|
||||
| Cable Details | ||||
| Included Qty: | 1 | |||
|
|
||||
| Chassis | ||||
| Built-in USB Hub: | Yes | |||
|
|
||||
| Dimensions & Weight | ||||
| Comments: | With stand | |||
| Depth: | 9.4 in | |||
| Height: | 20.7 in | |||
| Weight: | 15.39 lbs | |||
| Width: | 22 in | |||
|
|
||||
| Dimensions & Weight Details | ||||
| Depth: | 2.6 in | |||
| Details: | Without stand | |||
| Height: | 14.4 in | |||
| Weight: | 10.4 lbs | |||
| Width: | 22 in | |||
|
|
|
|
||
| Depth: | 9.4 in | |||
| Details: | With stand | |||
| Height: | 20.7 in | |||
| Weight: | 15.4 lbs | |||
|
|
||||
| Display | ||||
| Backlight Life: | 30,000 hours | |||
| Color Support: | 1.07 billion colors | |||
| Diagonal Size (metric): | 60.96 cm | |||
| Display Position Adjustments: | Height , Pivot (rotation) , Swivel , Tilt | |||
| Display Screen Coating: | Anti-glare | |||
| Dynamic Contrast Ratio: | 5000000:1 | |||
| Form Factor: | Desktop | |||
| Height Adjustment: | 4.7 in | |||
| Horizontal Refresh Rate: | 24 – 80 kHz | |||
| Horizontal Viewing Angle: | 178 | |||
| Image Aspect Ratio: | 16:10 , 16:10 | |||
| Input Signal: | HDMI, DVI-D, 2xDisplayPort | |||
| LCD Backlight Technology: | LED backlight | |||
| OSD Languages: | Chinese (simplified) , Chinese (traditional) , English , French , German , Italian , Japanese , Portuguese , Spanish | |||
| Projector Image Brightness: | 350 cd/m² | |||
| Projector Monitor Features: | 100% sRGB color gamut , 99% Adobe RGB color gamut , DreamColor | |||
| Response Time: | 6 ms | |||
| Swivel Angle: | 90 | |||
| Technology: | TFT active matrix | |||
| Tilt Angle: | -5/+20 | |||
| Type: | LED-backlit LCD monitor | |||
| Typical Response Time: | 20 ms (typical); 6 ms (gray-to-gray) | |||
| V-Sync Rate at Max Res.: | 60 Hz | |||
| Vertical Refresh Rate: | 24 – 60 Hz | |||
| Vertical Viewing Angle: | 178 | |||
| Viewable Size: | 24 in | |||
| Viewable Size (metric): | 60.96 cm | |||
| Widescreen: | Widescreen | |||
|
|
||||
| Display (Projector) | ||||
| Diagonal Size: | 24 in | |||
| Image Contrast Ratio: | 1000:1 | |||
| Interface: | DisplayPort , DVI , HDMI | |||
| Max Resolution: | 1920 x 1200 | |||
| TFT Technology: | AH-IPS | |||
|
|
||||
| Environmental Parameters | ||||
| Humidity Range Operating: | 20 – 80% (non-condensing) | |||
| Max Operating Temperature: | 95 °F | |||
| Min Operating Temperature: | 41 °F | |||
|
|
||||
| Environmental Standards | ||||
| ENERGY STAR Certified: | Yes | |||
|
|
||||
| Header | ||||
| Brand: | HP | |||
| Compatibility: | PC | |||
| Country Kits: | United States | |||
| Localization: | English | |||
| Manufacturer: | HP Smart Buy Display | |||
| Model: | Z24x Professional | |||
| Packaged Quantity: | 1 | |||
| Product Line: | HP DreamColor | |||
|
|
||||
| Interfaces | ||||
| Comments: | HDCP | |||
| Type: | DVI-D | |||
|
|
|
|
||
| Type: | DisplayPort | |||
|
|
|
|
||
| Type: | DisplayPort output | |||
|
|
|
|
||
| Type: | HDMI | |||
|
|
|
|
||
| Type: | USB 3.0 upstream | |||
|
|
|
|
||
| Qty: | 4 | |||
| Type: | USB 3.0 downstream | |||
|
|
|
|
||
| Type: | Audio line-out | |||
|
|
||||
| Miscellaneous | ||||
| Color: | Black | |||
| Color Category: | Black | |||
| Compliant Standards: | C-Tick , CCC , CEL Grade 1 , EAC , FCC , NOM , Plug and Play , PSB , RoHS , S Mark , TCO Displays 6.0 , TUV GS , TUV KC , UL , VCCI , WEEE , WHQL | |||
| Features: | Security lock slot (cable lock sold separately) , VESA interface support | |||
| Flat Panel Mount Interface: | 100 x 100 mm | |||
| Included Monitor Accessories: | Stand | |||
| Manufacturer Selling Program: | HP Smart Buy | |||
|
|
||||
| Power Device | ||||
| Form Factor: | Internal | |||
| Frequency Required: | 50/60 Hz | |||
| Nominal Voltage: | AC 120/230 V | |||
| Power Consumption Operational: | 58 Watt | |||
| Power Consumption Stand by: | 0.5 Watt | |||
|
|
||||
| Service | ||||
| Support Details Full Contract Period: | 3 years | |||
| Support Details Service Included: | Parts and labor | |||
| Support Details Type: | Limited warranty | |||
|
|
||||
| Service & Support | ||||
| Type: | 3 years warranty | |||
|
|
||||
| TV Tuner | ||||
| TV Tuner Presence: | No | |||
|
|
||||
| Video Input | ||||
| TV Tuner Presence: | No | |||
