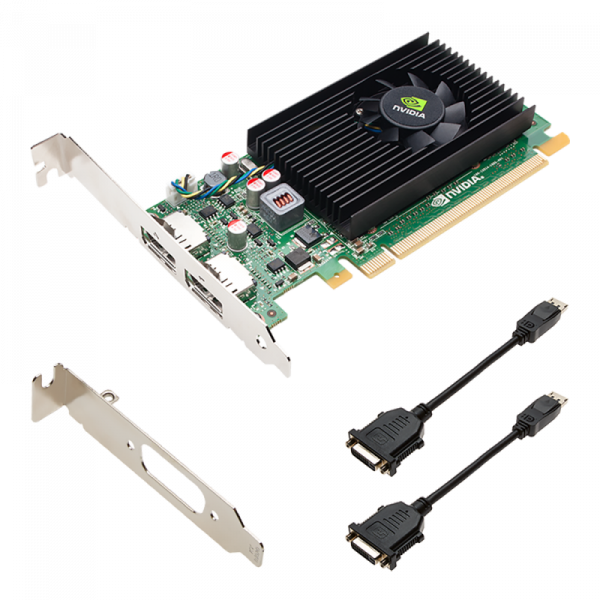

PNY Technologies NVIDIA Quadro NVS 315 Dual Display Graphics Card
Product Highlights
- Max DVI Resolution: 1920 x 1200
- Max VGA Resolution: 2048 x 1536
- 48 Cuda Cores
- 1GB DDR3 GPU Memory
- HDMI and DisplayPort Support
- Dual Display Support
- PCI Express 2.0
- Intelligent Power Management
- Low Profile Design
- Fan-Sink Designed to Be Ultra-Quiet
PNY Technologies NVIDIA Quadro NVS 315 Dual Display Graphics Card
Features and Benefits
|
|
|
|
|---|---|---|
Create Enterprise Grade Multi-Display EnvironmentsNVIDIA NVS 315 delivers outstanding display connectivity via a versatile DMS-59 connector that accepts DisplayPort, DVI or VGA adapter cables. NVIDIA’s nView easily manages windows across multiple displays and virtual desktops; all backed by a full suite of IT management tools. |
Performance and Features48 CUDA Cores, 1GB of DDR3 GPU memory, and DisplayPort 1.2 features like MST and Stream Cloning, facilitate multi-display commercial graphics. NVIDIA MOSAIC manages display topologies while nView profiles re-launch designated applications across displays with the click of a button. Included standard-height (ATX) and low-profile (SFF) brackets fit any system enclosure. |
PNY is NVIDIA’s Authorized NVS Channel PartnerPNY provides unsurpassed service and commitment to its professional graphics customers offering: 3 year warranty, pre and post-sales support, dedicated NVS Field Application engineers and direct tech support hot lines. In addition, PNY delivers a complete solution including the appropriate adapters, cables, brackets, software installation disc and documentation to ensure a quick and successful install. |
|
NVS 315 for Dual DVI & VGA – Product Specifications
|
||||
| Memory Size | 1 GB GDDR3 | |||
| Memory Interface | 64-bit | |||
| Memory Bandwidth | 14 GB/s | |||
| CUDA Cores | 48 | |||
| System Interface | PCI Express Gen 2 x16 | |||
| Max Power Consumption | 19.5W | |||
| Energy Star Enabling | Yes | |||
| Conformité Européenne (CE) | Yes | |||
| Thermal Solution | Ultra-quiet active fansink | |||
| Form Factor | 145 mm (H) × 69 mm (L) Single Slot, Low-Ptofile |
|||
| Display Connectors | 1 × DMS-59 | |||
| Max Simultaneous Displays | 2 | |||
| DisplayPort Multi-Streaming | Yes | |||
| DisplayPort Display Cloning | Yes | |||
| Maximum VGA Resolution | 2048 x 1536 @ 85Hz | |||
| Maximum DVI Resolution | 1920 x 1200 @ 60 Hz | |||
| HDCP Support | Yes | |||
| Graphics APIs | Shader Model 5.0, OpenGL 4.1, DirectX 11 | |||
| Compute APIs | CUDA, DirectCompute, OpenCL | |||
| NVIEW | Yes | |||
| Mosaic Mode | Yes | |||
| Package Content | 1 × DMS59 to Dual DVI adapter | |||
| 2 × DVI to VGA adapter | ||||
| Low-Profile Bracket | ||||
| Quick Installation Guide | ||||
| Driver | ||||
| NVS 315 for Dual DVI & VGA – Minimum System Requirements | ||||
| Windows 8, 7, Vista, XP SP3, Linux, or Solaris | ||||
| PCIe x16 expansion slot | ||||
| 1GB or more of system memory, 2GB recommended | ||||
| 200MB of available disk space for full driver installation | ||||
| Blu-ray or DVD-ROM drive | ||||
| Internet connection (if preferred for driver installation) | ||||
| DisplayPort, DVI, or VGA compatible display(s) | ||||
