RØDE Microphones – RØDELink Filmmaker Kit
RØDE Microphones – RØDELink Filmmaker Kit Digital Camera-Mount Wireless Omni Lavalier Microphone System with Case Kit (2.4 GHz)
The Rode RODELink Filmmaker Kit brings vloggers, DIY videographers, and content creators a cost-effective digital wireless microphone system with simple, plug-and-record operation, clean and reliable sound, and extended battery life.
Key Features
- Plug & Record Kit for DIY Videographer
- Omnidirectional Lav Microphone
- Bodypack Transmitter
- Diversity Camera-Mount Receiver
|
|
|
|
|---|---|---|
|
|
|
|
|---|---|---|
TX-BELT TransmitterAt a light 190 grams, the TX-BELT transmitter can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible. It has a discreet, internal antenna with a 100 meter range and 3.5 millimeter TRS socket with dual mono output. Can be powered by 2 x AA batteries or microUSB. |

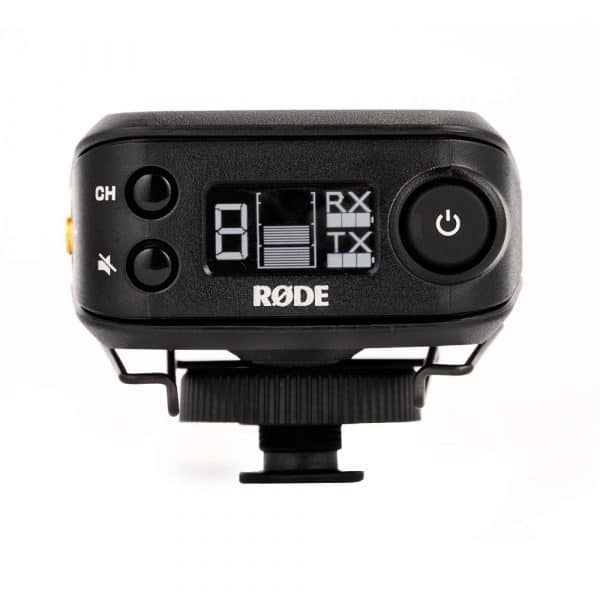

RX-CAM ReceiverThis receiver accepts the audio signal coming from up to 8 transmitter channels. It can be mounted on a camera shoe or also be clipped onto a belt or clothing.The OLED display clearly shows battery status, level, mute and channel selection. Finally, the 3.5 millimeter TRS locking jack socket sends audio directly to the camera or recording device. Can be powered by 2 x AA batteries or microUSB. |
Lavalier MicrophoneThis pressure gradient microphone can be clipped on to a person or object and the audio can be sent to the RX-CAM via the TX-BELT. It picks up frequencies from 60 Hz to 18 kHz, so you can be assured that whether your subject’s voice is high or deep the audio will be recorded with broadcast quality. And at 1 gram they won’t even know it’s there. |
RØDELink Filmmaker Kit Specifications
| Transmission type | 2.4GHz Fixed Frequency Agile System |
| System dynamic range | 112dB |
| Range (distance) | Up To 100m |
| Frequency range | 35Hz – 22kHz |
| Maximum output level | 1v Rms (2.8v P-p) |
| Max input signal level | 1v Rms (2.8v P-p) |
| Max latency | 4ms |
Receiver (RX-CAM)
| Power source | 2 X AA Battery Or MicroUSB |
| Antenna | Internal |
| Output connection | 3.5mm TRS Locking Jack Socket – Dual Mono |
| Output impedance | 300Ω |
| Dimensions | 111mm X 65mm X 52mm |
| Weight | 190gm |
Transmitter (TX-BELT)
| Power source | 2 X AA Battery Or MicroUSB |
| Antenna | Internal |
| Input connection | 3.5mm TRS Locking Jack Socket |
| Input impedance | 10kΩ |
| Dimensions | 111mm X 65mm X 40mm |
| Weight | 190gm |
Lavalier
| Acoustic Principle | Permanently Polarized |
| Active Electronics | JFET impedance converter |
| Capsule | 0.10″ |
| Address Type | End |
| Frequency Range | 60Hz – 18kHz |
| Output Impedance | 3000Ω |
| Maximum SPL | 110dBSPL |
| Maximum Output Level | 189.0mV |
| Sensitivity | -33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz |
| Equivalent Noise Level (A-weighted) | 25dB-A |
| Weight | 1.00gm |
| Dimensions | 12.00mmH x 4.50mmW x 4.50mmD |
