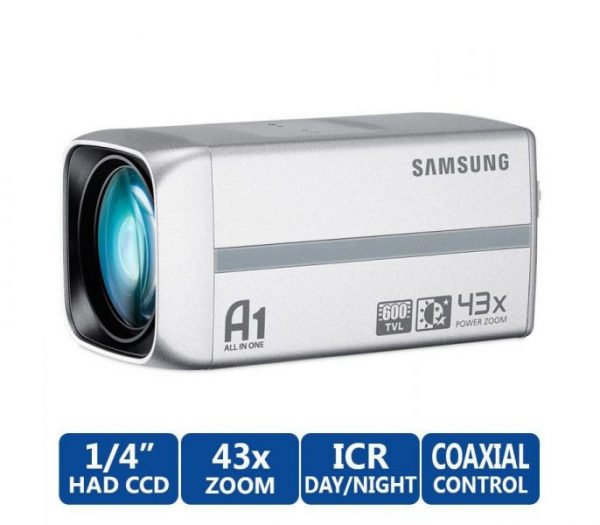

SAMSUNG SCZ-3430 600TVL INDOOR CCTV BOX SECURITY CAMERA – 3.2~138.5 MM LENS, 43X OPTICAL ZOOM, WDR, DNR, TRUE DAY/NIGHT

The Samsung SCZ-3430P Zoom Camera Dubai is a powerful zoom camera that features a 43x optical zoom lens combined with the camera. This camera by Samsung features automatic focus and a lowest illumination of 0.7Lux. In addition, there are innovative options including Day/Night with ICR, Virtual Progressive Scan , remote control through coax or RS-485 and Wide Dynamic Range.

The Samsung SCZ-3430P digital Zoom will start operation after it is zoomed in to the maximum optical ratio of x43. If you set DIGITAL ZOOM to x16, you can take a shot at up to x688. When you set DISPLAY ZOOM as on, you may see zoom value on the screen. XDR is another features this will correct a brightness difference between many scenes for the best visibility by calculating the ambient luminance contrast in a certain unit of pixels. The higher the value is, the higher the adjustment level is.

With the state-of-the-art digital signal processing technology, full digital image processing and special algorithm of 600TVL high resolution applied. Virtual Progressive Scan on the SCZ-3430P Dubai is an advanced technology that copies a sharp progressive image. This is suitable to high-quality recording and file transfer through the Internet. The Samsung SCZ-3430P Zoom Camera Dubai is a high-performance surveillance camera, prepared with x43 zoom lens and digital zoom IC, allowing watching up to 688 times.

WDR extends the contrast range as it takes a picture of each of dark and bright AR before compositing the two, which is valuable if you take a picture of windows inside building. Namely, it improves the picture quality of the outdoor scenery as well as indoor. Low Illumination features in the SCZ-3430P uses the digital signal technologies such as low illumination and Day/Night functions that make your camera identify objects even in the worst settings.

Samsung SCZ-3430 Main features:

• High resolution of 600TVL (Color), 700TVL(B/W)
• Min. illumination B/W : [email protected] or 0.0002Lux (Sens-up, 512x)
• Powerful 43x motorized zoom lens (3.2 ~ 138.5mm), Digital 16x
• True Day/Night (ICR) IR Cut Filter
• True Wide Dynamic Range, VPS, DIS, Sens Up
• Intelligent video, MD, DNR (3D+2D)
• Coaxial control (CCVC) or RS-485 Communication
• Dual power, 24VAC & 12VDC

Samsung SCZ-3430 Specifications:

• Imaging Device: 1/4″ Ex-view HAD CCD (Double scan)
• Total Pixels: NTSC 811(H) x 508(V) PAL 795(H) x 596(V)
• Effective Pixels: NTSC 768(H) x 494(V) PAL 752(H) x 582(V)
• Scanning System: 2 : 1 Interlace
• Synchronization: Internal / Line lock
• Frequency: H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
• Horizontal Resolution: Color : 600TV lines, B/W : 700TV lines
• Min. Illumination:
• Color : [email protected] (50IRE), 0.001Lux (Sens-up, 512x)
• B/W : [email protected] (50IRE), 0.0002Lux (Sens-up, 512x)
• S / N Ratio 52dB (AGC off, Weight on)
• Video Output: CVBS : 1.0 Vp-p / 75O composite
• Focal Length: (Zoom Ratio) 3.2 ~ 138.5mm (Optical 43x)
• Max. Aperture Ratio: 1: 1.65(Wide) ~ 3.7(Tele)
• Angular Field of View: H : 61.22°(Wide) ~ 1.47°(Tele) / V : 47.16°(Wide) ~ 1.1°(Tele)
• Min. Object Distance: 1m (3.28ft)
• Focus Control: Auto / Manual / One AF
• Zoom Movement Speed: 3.2sec (Wide to tele)
• On Screen Display
• NTSC: English, Japanese, Spanish, French, Portuguese, Taiwanese, Korean
• PAL: English, French, German, Spanish, Italian, Chinese, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
• Camera Title Off / On (Displayed 54 characters)
• Day & Night ICR: Day / Night / Auto / Ext
• Backlight Compensation Off / On (Area setting)
• Wide Dynamic Range: 128x (52dB): SCZ-3430 160x (52dB): SCZ-3430
• Contrast Enhancement: XDR (Off / Low / Mid / High)
• Digital Noise Reduction: Adaptive 3D+2D (Off / Low / Mid / High / User)
• Digital Image Stabilization DIS: Off / On
• Motion Detection: Off / Tracking / Detection
• Privacy Masking: Off / On (12 programmable zones with polygonal masking)
• Sens-up: (Frame Integration) 2x ~ 512x
• Gain Control: Off / On
• White Balance: ATW1 / ATW2 / AWC (Manual) / 3200K / 5600K
• Electronic Shutter Speed: 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
• Digital Zoom: Off / On (1x ~ 16x)
• Flip: Off / H / V / H/V
• Profile: Standard / ITS / Backlight / Day & Night / Gaming / Custom
• VPS: Off / On
• Intelligent Video: Fixed / Moved
• PIP: Off / On
• Schedule: Day / Time
• Alarm: 1 Out
• Communication: Coaxial control or RS-485
• Protocol Coax : CCVC
• Protocol RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon
• Operating Temperature / Humidity -10°C ~ +50°C (+14°F ~ +122°F) / Less than 90% RH
• Input Voltage: Dual (24VAC & 12VDC ±10%)
• Power Consumption Max. 3.0W
• Color / Material: Silver / Aluminum, Steel
• Dimensions (WxHxD): 59.0 x 59.0 x 154.2mm (2.32″ x 2.32″ x 6.07″)
• Weight 564g (1.24 lb)
