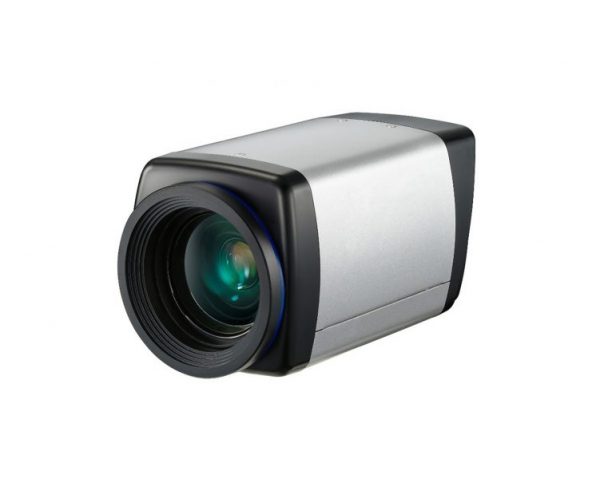

Samsung SCZ-2373P 37x Zoom Day/Night Camera
PRODUCT HIGHLIGHTS
- 960H Resolution
- IR Cut Filter for Night Vision
- 3.5-129.5mm Varifocal Lens
- 56.26-1.62° Horizontal Field of View
- 37x Optical Zoom
- 16x Digital Zoom
- BNC Connection
- Motion Detection and Privacy Masking
Samsung SCZ-2373P 37x Zoom High Resolution (960H) Day/Night Camera 12VDC/24V AC
The 960H Box Camera with 37x Optical Zoom from Samsung has a 1/4″ Sony image sensor to capture high-quality video in 960H resolution. This camera features a 37x optical zoom, allowing it to be placed in a large, indoor area to monitor far away subjects. It also has a 16x digital zoom for even more coverage. This camera can detect motion and you can set up privacy masking for multiple zones. This camera connects to your recorder via BNC connection.
- Up to 680 TVL resolution
- 37x optical zoom lens features auto focus, auto iris, and zoom functions
- 16x digital zoom
- IR cut filter for day/night function (ICR)
- Digital image stabilizer compensates camera shaking
- Motion detection and privacy masking
Main Features
• 1/4″ Sony 960H Ex-view HAD CCD
• Based on SV-V, the latest generation of Winner DSP engine
• 37x optical zoom (3.5 ~ 129.5mm) and 16x digital zoom
• SSNRIII, 2D/3D noise reduction technology
• Day & Night with ICR, 512x sens-up support
• High resolution of 680TV lines in ER Mode
• Min. illumination of 0.2Lux @ F1.6 (Colour)
0.01Lux @ F1.6 (B/W)
0.0004Lux @ F1.6 (Colour, sens-up)
• Privacy masking with 12 user rectangular zones
• SSDR (Samsung Super Dynamic Range)
• HLC (Highlight Compensation), DIS (Digital Image Stabilization)
• Motion detection, Coaxial & RS-485 control
• Multi-language OSD
• S/N ratio of 52dB, 12V DC / 24V AC
Samsung Techwin SCZ-2373 Specs
| Environmental | |
|---|---|
| Operating Temperature | 14 to 131°F (-10 to 55°C) |
| Relative Humidity | < 90% |
| Electrical | |
|---|---|
| Input Voltage/Current | Dual voltage 24 VAC and 12 VDC, ±10% |
| Maximum Power Consumption | 5.8 W |

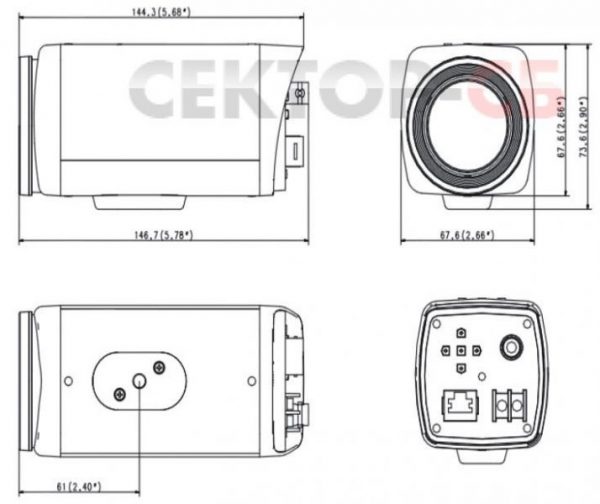

| Mechanical | |
|---|---|
| Material | Plastic, Steel |
| Dimensions (W x H x D) | 2.7 x 2.7 x 5.7″ (6.8 x 6.8 x 14.4 cm) |
| Weight | 1.2 lb (540 g) |
| Packaging Info | |
|---|---|
| Package Weight | 1.6 lb |
| Box Dimensions (LxWxH) | 8.3 x 4.7 x 4.0″ |
