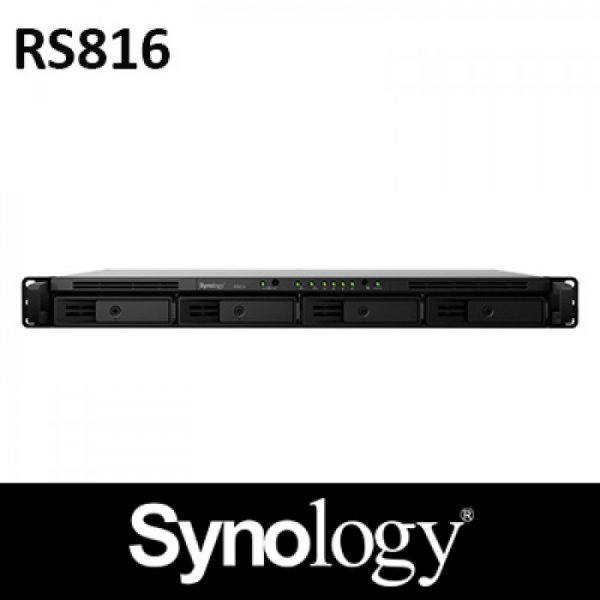

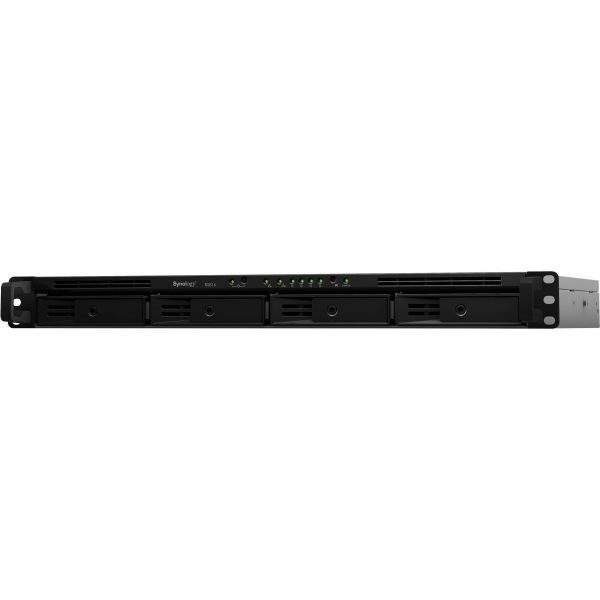

Synology RackStation RS816 4-Bay NAS Enclosure

Availability: In stock
KShs11,000.00 KShs10,000.00

Synology RackStation RS816 4 Bay NAS, Dual Core 1.8GHz, 1GB DDR3, 2x Gigabit LAN, 2x USB3, 1x eSATA, 1U Rackmount

The RackStation RS816 4-Bay NAS Enclosure from Synology lets you create a shared storage pool of data with a small group of networked users. This RackStation sports four bays that can accommodate your 3.5″ and 2.5″ hard drives and SSDs. To manage the data, DSM operating system, and apps, Synology has armed this NAS with a dual-core 1.8 GHz Marvell Armada 385 processor along with 1GB of DDR3 RAM. It features a 1 RU form factor and connects to your network via two Gigabit Ethernet ports. For uninterruptible services, the networking ports offer failover and link-aggregation support. Other notable connections include one eSATA port as well as two USB 3.0 ports, so you can expand the RS816’s capabilities with external storage drives, printers, and more. In addition, it lets you configure the drives in a RAID array, set up iSCSI LUNs, and encrypt the data. This NAS supports a single volume size of up to 16TB.


Synology RackStation RS816 4-Bay NAS Enclosure

Synology RackStation RS816 4 Bay NAS Synology RackStation RS816 4 Bay NAS

Synology RS816 Specs

Number of Bays 4 x 2.5″/3.5″
Media Card Slots None
Maximum Filled Capacity 16 TB
Connections 2 x RJ45 (Gigabit Ethernet)
2 x USB Type-A (USB 3.1 Gen 1)
1 x eSATA
Compatible Drive Interface SATA III
RAID Modes RAID 0, 1, 10, 5, 6, JBOD, Synology Hybrid
Hot-Swap Support Yes
Link Aggregation and Failover Support Yes
Total Raw Capacity None
Type None
Flash Memory None
Processor Marvell Armada 385 88F6820 Dual-Core
Clock Speed Base: 1.8GHz
Total Installed Memory 1 GB DDR3
iSCSI Target 10
Max Concurrent Connections 256
Max Folders 256
Max Groups 256
Max Sync Tasks 4
Max User Accounts 2048
Max Volume Number 256
File System Formats Supported External: EXT3, EXT4, FAT, HFS+, NTFS, exFAT
Internal: EXT4
Power Consumption 27.9 W (Typical)
12.4 W (Standby)
Power Source Internal Power Supply
PSU Wattage 1 x 150 W
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Operating Temperature 41 to 95°F / 5 to 35°C
Operating Humidity 5 to 95%
Storage Temperature -5 to 140°F / -20 to 60°C
Certifications BSMI, CE, FCC, RoHS, as per Manufacturer
Cooling 3 x 40 mm Fans
Noise Level 28.9 dBA
Dimensions 1.7 x 16.9 x 11.4″ / 44.0 x 430.5 x 290.0 mm
Weight 9.6 lb / 4.3 kg
Packaging Info
Package Weight 13.0 lb
Box Dimensions (LxWxH) 21.0 x 16.0 x 5.5″
