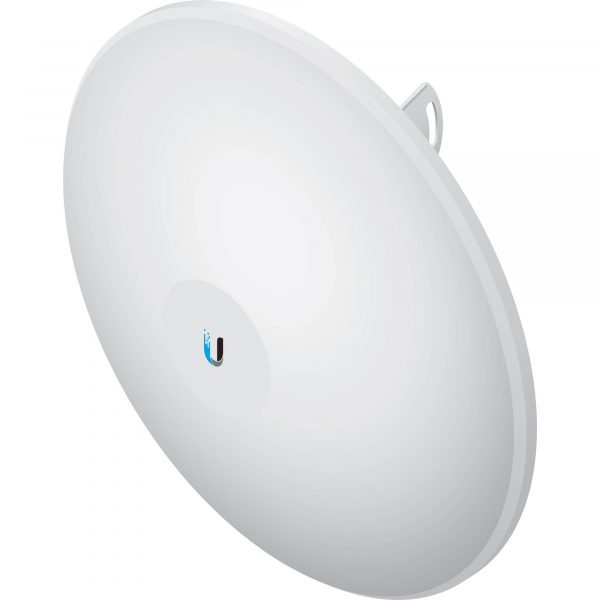

Ubiquiti Networks PBE-5AC-500 PowerBeam

Rating
Availability: In stock
KES35,000.00

Product Features:

• Processor: Atheros MIPS 74Kc, 720MHz
• Memory: 128MB DDR2, 8 MB flash
• Networking interface: (1) 10/100/1000 Ethernet port
• Channel size: 10/20/30/40/50/60/80MHz (PtP) / 10/20/30/40MHz (PtMP)
• Protocol: 802.11AC
• Polarization: Dual linear
• Gain: 27dBi
• ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
• Operating Temperature -40 to 70° C (-40 to 158° F)
• Operating Humidity 5 to 95% Non-Condensing
• Power Supply 24V, 0.5A Gigabit PoE
• Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Max. Power Consumption 8.5W
• Gain 27 dBi

Compare

Ubiquiti PowerBeam ac PBE-5AC-500 5GHz 500mm 27dBi airMAX AC Bridge 25km 450Mbps, airOS v7 Operating System – WORLD VERSION

DETAILS

The PBE-5AC-500 PowerBeam ac High-Performance airMAX Bridge from Ubiquiti Networks is suitable for CPE deployments requiring maximum performance. A dish reflector design with proprietary airMAX ac technology, offers improved latency, noise immunity, scalability, and significantly increased throughput performance of up to 450+ Mbps and also offers wide range of 25+ km.

The InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance while eliminating cable losses. Ubiquiti’s airMAX engine with custom IC improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

High-Performance airMAX® ac Bridge

Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam™ ac is ideal for CPE deployments requiring maximum performance.

Integrated Radio Design

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

Performance Breakthrough

airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Superior Processing

Ubiquiti’s airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna “Beam” Performance

The form factor of the PowerBeam™ ac features the highest gain for its size. The PowerBeam ac’s excellent beam directivity provides the best performance in high-noise environments.

Advanced Software Technology

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Protective Radome

The PowerBeam™ ac PBE-5AC-500 includes a protective radome to shield the radio from nature’s harshest elements.

PowerBeam 5AC is only compatible with other AC devices

Incorporating a dish reflector design with advanced technology, the PowerBeam is the latest generation of Ubiquiti Networks airMAX CPE for customer locations.

Integrated Radio Design Ubiquitis InnerFeed technology integrates the radio into the feed horn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

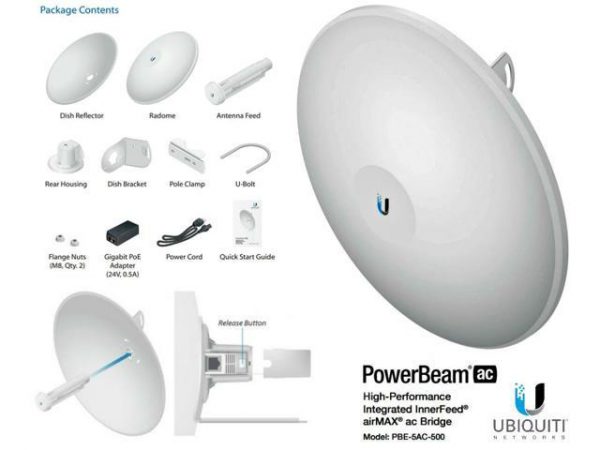

Plug and Play Installation The PowerBeam requires no tools for assembly; only a single wrench is required for pole-mounting.

Incredible Antenna ”Beam” Performance The form factor of the PowerBeam features the highest gain for its size. The PowerBeams excellent beam directivity provides the best performance in high-noise environments.

Advanced Software Technology Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Protective Radome The PowerBeam PBE-5AC-500 includes a protective radome to shield the radio from the elements. The PBE-RAD-400 is an optional accessory available for the PBE-M2-400 and PBE-M5-400.

Specifications:

Performance
Processor Atheros MIPS 74 Kc, 720 MHz
Memory 128 MB DDR2, 8 MB flash
Networking Interface 1 x 10/100/1000 Ethernet port
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
Power Supply 24 V, 0.5 A Gigabit PoE
Power Method Passive PoE (Pairs 4, 5+, 7, 8 Return)
Voltage Range 20 to 26 VDC
Max Power Consumption 8.5 W
Gain 27 dBi
Operating Frequency 5725 – 5850 MHz
Wind Loading 419.6 N @ 200 km/h (94.33 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
LEDs 1 x Power
1 x LAN
4 x WLAN
Signal Strength LEDs Software-adjustable to correspond to custom RSSI levels
Channel Sizes PtP Mode: 10/20/30/40/50/60/80 MHz
PtMP Mode: 10/20/30/40 MHz
Polarization Dual linear
Enclosure Outdoor UV stabilized plastic
Mounting Pole-mount kit included
ESD/EMP Protection Air: ± 24 kV
Contact: ± 24 kV
Operating Temperature -40 to 158°F / -40 to 70°C
Operating Humidity 5 to 95% non-condensing
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 104°F (40° C), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Output Power Output Power: 22 dBm
TX Power Specifications
Data Rate / Avg. TX / Tolerance
airMAX ac
1x BPSK (½) 22 dBm ± 2 dB
2x QPSK (½) 22 dBm ± 2 dB
2x QPSK (¾) 22 dBm ± 2 dB
4x 16QAM (½) 22 dBm ± 2 dB
4x 16QAM (¾) 22 dBm ± 2 dB
6x 64QAM (2/3) 22 dBm ± 2 dB
6x 64QAM (¾) 21 dBm ± 2 dB
6x 64QAM (5/6) 20 dBm ± 2 dB
8x 256QAM (¾) 18 dBm ± 2 dB
8x 256QAM (5/6) 18 dBm ± 2 dBRX Power Specifications
Data Rate / Sensitivity / Tolerance
airMAX ac
1x BPSK (½) -96 dBm ± 2 dB
2x QPSK (½) -95 dBm ± 2 dB
2x QPSK (¾) -92 dBm ± 2 dB
4x 16QAM (½) -90 dBm ± 2 dB
4x 16QAM (¾) -86 dBm ± 2 dB
6x 64QAM (2/3) -83 dBm ± 2 dB
6x 64QAM (¾) -77 dBm ± 2 dB
6x 64QAM (5/6) -74 dBm ± 2 dB
8x 256QAM (¾) -69 dBm ± 2 dB
8x 256QAM (5/6) -65 dBm ± 2 dB
VSWR 1.5:1
Built-In Mechanical Downtilt +20° to -10°
Dimensions Randome Excluded
20.47 x 20.47 x 12.13″ / 520 x 520 x 308 mm
Randome Included
20.67 x 20.67 x 12.40″ / 525 x 525 x 315 mm
Weight Randome Excluded
5.18 lb / 2.35 kb
Randome Included
6.95 lb / 3.15 kg
Packaging Info
Package Weight 28.5 lb
Box Dimensions (LxWxH) 1.0 x 1.0 x 1.0″
