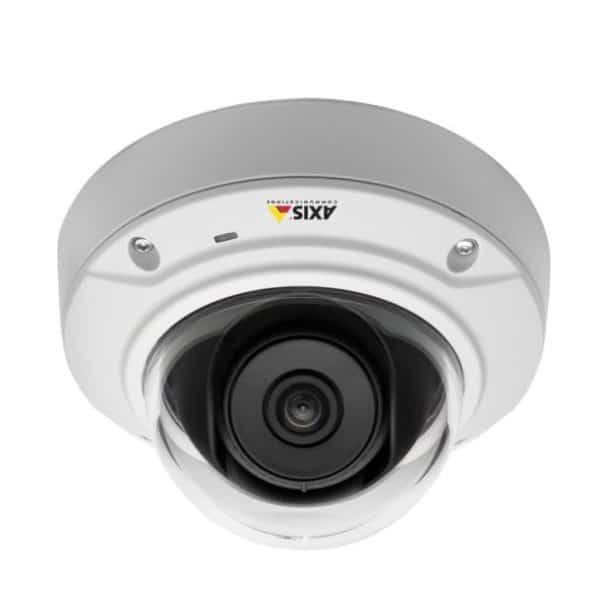

Axis M3044-V 720p Network Mini Dome Camera
M3044-V Fixed Dome IP Camera, Max. HDTV 720p Resolution at 30 FPS with WDR
If you want an affordable fixed mini dome surveillance camera that offers excellent video quality, this is it. AXIS M3044-V is perfect for stores, hotels, schools, banks and offices.
- HDTV 720p video quality
- Wide Dynamic Range (WDR) for good detail in bright and dark areas
- Axis’ Zipstream technology – saves bandwidth without sacrificing quality
- Ultra-compact and discreet design
- Fast, easy, cost-effective installation
- Supports intelligent analytics
The M3044-V 720p Network Mini Dome Camera from Axis Communications uses a 1/3″ progressive-scan CMOS sensor for 1280 x 720 resolution at 30 fps, and it features a 2.8mm fixed lens for an 82° horizontal field of view. Additionally, you can pan the camera ±177°, tilt it ±76°, and rotate it ±176° for easy angle adjustments. Wide dynamic range offers high-quality images in ambient lighting, and color, brightness, sharpness, contrast, and exposure control settings allow you to configure your camera based on various environments. The camera also comes with built-in analytics, such as motion detection and an active tampering alarm. When these events occur, the camera will send you an email notification or store video recordings of the event to your edge storage.
The camera compresses footage using H.264 and MJPEG formatting, maximizing your bandwidth and storage. Additionally, video can be streamed in multiple individual streams, and frame rates and bandwidth are controllable for further customizing your network. A microSD slot supports on-site recording and the camera can also record to a dedicated NAS. The network is secured with a number of safety features, including password protection, IP address filtering, and HTTPS encryption. PoE technology allows you to transfer both data and power over the same Ethernet cable, minimizing the amount of cables needed during installation, and the camera is IP42-rated water- and dust-resistant and IK08-rated impact-resistant for use outdoors and in high-risk areas.
- HDTV 720p video quality
- Wide Dynamic Range (WDR) for good detail in bright and dark areas
- Axis’ Zipstream technology – saves bandwidth without sacrificing quality
- Ultra-compact and discreet design
- Fast, easy, cost-effective installation
- Supports intelligent analytics
Axis Communications M3044-V Specs
Camera
Image Sensor | 1/3″ progressive-scan RGB CMOS |
Lens | 2.8mm fixed |
Aperture | f/2.0 |
Focus | Fixed |
Iris | Fixed |
Lens Mount | M12 mount |
Field of View | Horizontal: 82° Vertical: 44° |
Light Sensitivity | 0.25 lux at 50 IRE f/2.0 |
Shutter Time | 1/32,500 to 1/5 seconds |
Angle Adjustment | Pan: ±177° Tilt: ±76° Rotation: ±176° Can be directed in any direction to see the wall/ceiling |
Video
Compression | H.264 (MPEG-4 Part 10/AVC) Main, Baseline, and High Profiles, MJPEG |
Resolutions | 1280 x 720 to 320 x 240 |
Frame Rate | 25/30 fps with power line frequency 50/60 Hz |
Streaming | Multiple, individually configurable streams in H.264 and MJPEG Controllable frame rate and bandwidth Axis Zipstream technology in H.264, VBR/MBR H.264 |
Image Settings | Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Backlight compensation, WDR, Text and image overlay, Mirroring of images, Privacy masking Rotation: 0°, 90°, 180°, 270° including corridor format |
Network
Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log, Centralized certificate management |
Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
Application Programming Interface | Open API for software integration, including VAPIX and AXIS Camera Application Platform AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF Profile S |
Analytics | Axis video motion detection 3, Active tampering alarm Support for AXIS Camera Application Platform, enabling installation of Axis Cross Line Detection and third-party applications |
Event Trigger | Analytics, Edge storage events |
Event Action | File Upload: FTP, SFTP, HTTP, and HTTPS network share and email Notification: Email, HTTP, HTTPS, and TCP, and SNMP trap Video recording to edge storage Send video clip Pre- and post-alarm video buffering Overlay text |
Data Streaming | Event data |
Built-In Installation Aids | Pixel counter |
General
Casing | Encapsulated electronics, captive screws (Torx 10) IP42 water- and dust-resistant, IK08-rated impact-resistant Polycarbonate, ABS casing PVC free |
Memory | 512 MB RAM, 256 MB Flash |
Power | Power Over Ethernet IEEE 802.3af/802.3at Type 1, Class 1 Typical: 2.5 W, Max: 2.9 W |
Connectors | RJ45 for 10Base-T/100Base-TX PoE |
Storage | microSD/SDHC/SDXC slot supports edge storage Support for recording to dedicated network-attached storage (NAS) |
Operating Conditions | 32 to 113°F / 0 to 45°C Humidity: 15 to 85% RH (non-condensing) |
Storage Conditions | -40 to 158°F / -40 to 70°C Humidity: 15 to 85% RH (non-condensing) |
VMS Software | AXIS Camera Companion, AXIS Camera Station, video management software from Axis’ application development partners |
Approvals | EN 55032 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A and B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class B, KN35, IEC/EN/UL 60950-1, IEC/EN 60529 IP42, IEC/EN 62262 Class IK08 |
Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese |
Dimensions | 4 x 2.2″ / 101 x 56 mm |
Weight | 6 oz / 170 g |
Packaging Info
Package Weight | 0.65 lb |
Box Dimensions (LxWxH) | 5.1 x 4.7 x 2.9″ |
