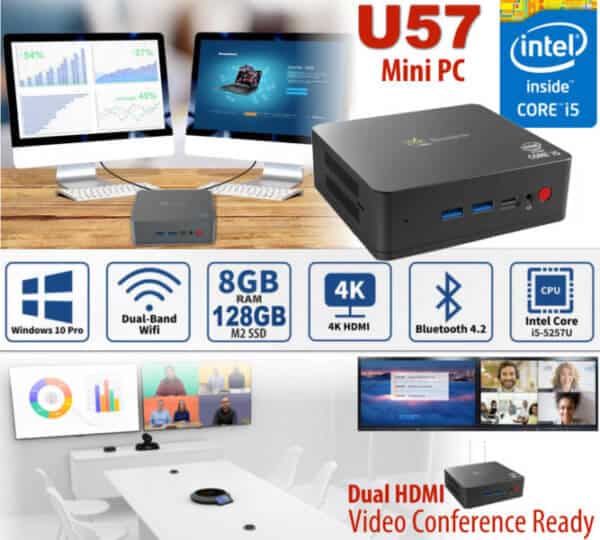

Beelink U57 Intel Core i5-5257U Windows 10 Mini PC – Intel Iris Graphics 6100 2.4G+5G WIFI Bluetooth 1000Mbps LAN 2xHDMI
High-class and fast processor: Equipped with Intel Core i5-5257U processor (2.70 GHz base frequency, up to 3.10 GHz), pre-installed Windows 10 Pro 64-bit mini PC. The compact size makes this product a superior choice for the business office and educational industry.
HD Graphics and Dual HDMI: The mini desktop uses Intel HD 6100 graphics to support 4K video playback, giving you a first-class viewing experience. Dual HDM can connect two monitors at the same time, effectively increasing work efficiency.
Storage expansion options: The micro PC has a built-in 8GB DDR3L, 128GB M.2 SSD (M.2 is much better than mSATA in terms of smaller size and higher transfer performance), and supports up to 2 2.5-inch SATA HDD / SSD and up to 128GB microSD card.
I / O Specifications and Accessories: The micro computer is designed with 2 USB 3.0 ports, 2 USB 2.0 ports, 1 Type-C port, 1 Gigabit Ethernet port, 1 MicroSD card port, and 2 HDMI ports. It also comes with 1 power adapter, 2 HDMI cables, 1 VESA mount.
Beelink U57 Dual HDMI Output Display Desktop Mini PC
Beelink U57, an upgrade model of the previous Beelink U55, is powered by the Intel Core i5-5257U, a processor with a time behind it but valid for desktop use. Compact but powerful, the Beelink U57 is ideal to place in any corner and even behind the monitor.
The Beelink U57 mini PC includes an Intel Core i5-5257U processor made of 14nm with 2 cores and 4 wires with a basic speed of 2.7GHz and a turbo mode that goes up to 3.1GHz. In the graphics section, it combines an Intel Iris 6100 GPU, much more powerful than the classic Intel HD Graphics. This mini PC is cooled by an internal fan.
The RAM base memory is 8GB DDR3L that pairs 128GB/256GB SSD storage. On top of that, the users get an option to expand it thanks to its SATA3 port with a 2.5″ disk drive, these two disk drives can coexist without problems.
As for connectivity, ac WiFi and Bluetooth 4.0 are supported. Regarding connectors, it has a good set with 2 USB 2.0 ports, another 2 USB 3.0, Gigabit network port, 3.5mm audio jack, two HDMI 1.4 video outputs, microSD card reader and a USB Type-C connector on the front.
Decoder Format: H.263
Video format: 4K
Audio format: AAC
Photo Format: GIF
Support 5.1 Surround Sound Output: Yes
5G WiFi: Yes
WIFI: 802.11 b/g/n/ac
Power Supply: Charge Adapter
Interface: 3.5mm Audio
HDMI Version: 1.4
HDMI Function: HDCP
Power Consumption.: Standby: less than 0.5W; Normal: less than 12W
RJ45 Port Speed: 1000Mbps
System Bit: 64Bit
WiFi Chip: Intel 3165
System Activation: Yes
Power Type: External Power Adapter Mode
Power Input Vol: 12V
Suggest Input: 12V 3A
Power Adapter Input: 100-240V / 50-60Hz
Product weight: 0.2610 kg
Package weight: 0.8050 kg
Product size (L x W x H): 12.40 x 13.00 x 4.10 cm / 4.88 x 5.12 x 1.61 inches
Package size (L x W x H): 20.90 x 13.60 x 6.20 cm / 8.23 x 5.35 x 2.44 inches
Package Contents: 1 x Mini PC, 1 x Power Adapter, 2 x HDMI Cable, 1 x Bracket, 1 x Bag of Hard Disk Screws, 1 x English Manual
