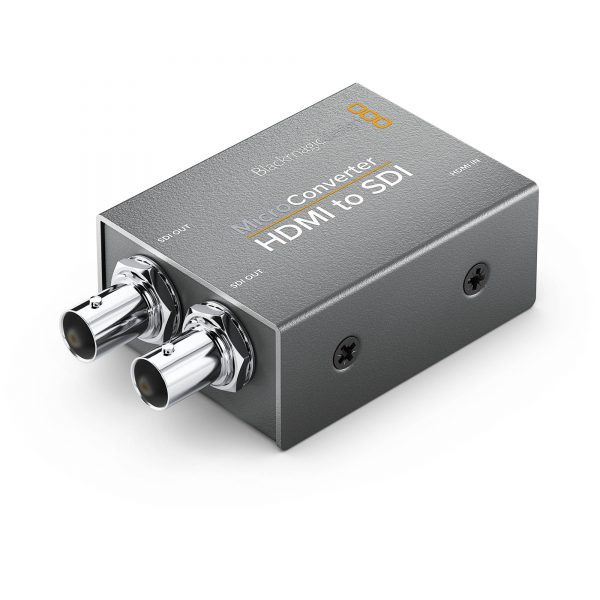

Blackmagic Micro Converter – HDMI to SDI
The world’s smallest broadcast converters!
The Blackmagic Micro Converters are incredibly tiny broadcast quality video converters that come in two models, one for converting from SDI to HDMI, and one for converting from HDMI to SDI. The rugged, miniaturized design of Blackmagic Micro Converters makes them small enough to be used anywhere and conveniently hidden out of sight! You get HDMI and professional 3G-SDI connections for working with all SD and HD formats up to 1080p60, along with an external power supply. You can even power them over USB, so Micro Converters can be powered by big screen televisions or laptop computers without having to plug them into the wall!

Pocket size broadcast quality converters!

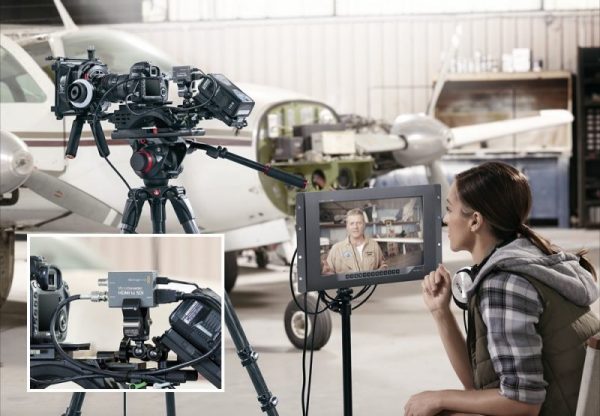

Blackmagic Micro Converters are so small you can use them anywhere! Whether you’re carrying one in your laptop bag or in your outside broadcast van and road cases, they’re professional, broadcast quality converters that can be easily hidden so the audience never sees them. They’re perfect for use on set in broadcast news, at live events that have screens and cameras all around, or even in episodic television shows feeding big screen televisions that are part of the set!

Professional broadcast converters
Unlike other small SDI converters, Blackmagic Micro Converters feature the highest quality broadcast technology, miniaturized into aproper metal enclosure so you get a professional design you can trust! You get full size professional 3G-SDI connections, HDMI and more. The converters include two LED status indicators to confirm power and video signal. Blackmagic Micro Converters include a power supply that has a USB connection. That means you can power it from the wall or you can use the USB power connection to power it from any USB socket on a television or a laptop computer.

Big converter quality, miniaturized!
Whether you’re working in SD or HD, Micro Converters feature the same broadcast quality 10-bit video processing found in full size converters, so you always get professional industrial strength SDI signals. Blackmagic Micro Converters work with 8 and 10-bit broadcast quality video in all SD and HD formats up to 1080p60. Full support is included for embedded audio and closed captioning. With Blackmagic Micro Converters, you get a truly professional converter that’s perfectly suited for high end broadcast applications

Perfect for longer SDI cable lengths
Blackmagic Micro Converters include built in SDI re-clocking on the 3G-SDI input. The SDI re-clocking will regenerate the SDI video input, reduce SDI jitter and improve SDI eye pattern before the signal gets to the converter’s processing. This allows longer cable lengths because even degraded SDI signals can still be used. Other small, cheap converters often leave out important features such as this, making them unreliable for broadcast use. Blackmagic Micro Converters don’t suffer from these problems because they are a true professional design!

Works with the cables you already have!

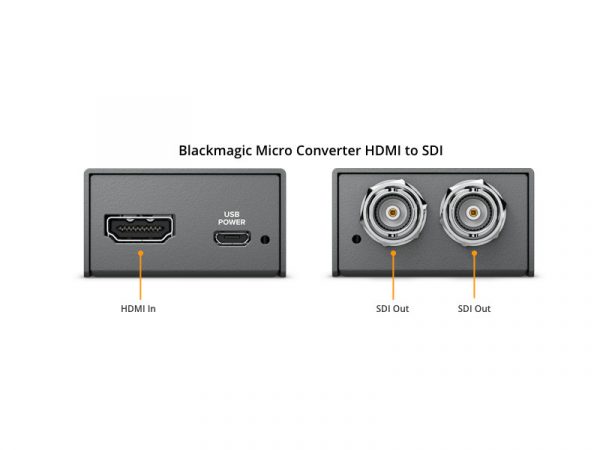

Even though they’re incredibly small, Blackmagic Micro Converters feature full size 3G-SDI and HDMI connections! The SDI connections are multi-rate, making them compatible with SD and HD-SDI equipment. For maximum compatibility, micro converters support both level A and level B 3G-SDI devices. Micro Converter SDI to HDMI also includes an SDI input loop through connection. Micro Converter HDMI to SDI features two 3G-SDI outputs, so you can connect it to multiple devices such as switchers, routers, monitors and more!

Connections	SDI Video Output Automatically matches the SD, HD or 3G-SDI HDMI video inputHDMI HDMI Type A in	Multi Rate Support Auto detection of SD or HDUpdates, Configurations and Power Micro USB	Reclocking Yes
Standards	SDI Format Support 525i29.97 NTSC, 625i25 PALHD Format Support 720p50, 720p59.94, 720p60 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M	SDI Video Rates SDI video connections are switchable between standard definition and high definition, and user selectable level A and B via setup utility.SDI Color Precision 4:2:2SDI Color Space YUV SDI Auto Switching Automatically detects SD, HD and 3G-SDI	HDMI Format Support 525i29.97 NTSC, 625i25 PAL 720p50, 720p59.94, 720p60 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60HDMI Color Precision 4:2:2HDMI Color Space YUV
Software	Software Control Mac OSX� and Windows� software via micro USB	Internal Software Upgrade Via micro USB
Operating Systems	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later.	Windows 7, 8.1 and 10, all 64-bit
Settings Control	Via software utility
Power Requirements	Power Supply +5V universal power supply included with international socket adapters for all countries.	Power Consumption 2.0 Watts	Operational Voltage Range 4.4 to 5.25V DC
Physical Specifications
Environmental Specifications	Operating Temperature 5� to 40� C (32� to 104� F)	Storage Temperature -20� to 60� C (-4� to 140� F)	Relative Humidity 0% to 90% non-condensing

Includes DC plug pack or use USB!

Blackmagic Micro Converters are powered via the same micro USB connection that’s used on smartphones so you can use the included DC plug pack, any USB device, or any smartphone charger to power the converters! The included DC plug pack supports 110 to 240V AC and comes with 4 different AC socket adapters so you can plug the converters into outlets anywhere in the world. That’s perfect for when you’re doing international work! You can even use smartphone chargers and rechargeable battery packs to power micro converters on set. With so many an easy to use power solutions, you’ll never be without a power supply again!
