Cisco Catalyst 2960X-24PS-L – switch

Rating

Availability: In stock

Key Features

24 Gigabit Ethernet ports with line-rate forwarding performance
Gigabit Small Form-Factor Pluggable (SFP) uplinks
Reduced power consumption and advanced energy management features
USB and Ethernet management interfaces for simplified operations
Application visibility and capacity planning with integrated NetFlow-Lite

Add to Wishlist

Add to Wishlist

Categories: Network Switches & Accessories, Computers, Computer Accessories & Peripherals, Electronics, Routers, Networking & Communication

Description
Additional information

Cisco Catalyst 2960X-24PS-L – switch – 24 ports – managed – desktop, rack-mountable

Overview (WS-C2960X-24PS-L)

Cisco catalyst 2960X-24PS-L LAN Base stackable Layer 2 switch is comprised of 24 * 10/100/1000 Ethernet ports with POE+ and 4 * 1G SFP uplink interfaces. The industry standard IEEE802.3at PoE+ provides up to 30W per port.

Quick Specs

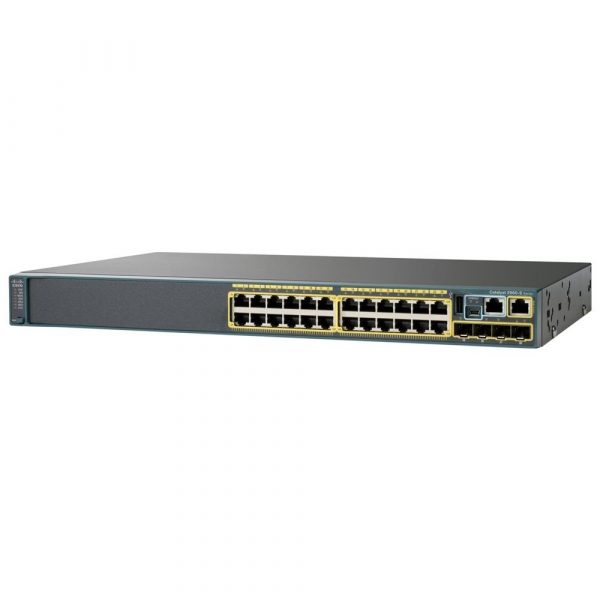

Figure 1 shows the front view of the Cisco 2960X-24PS-L switch.

WS-C2960X-24PS-L

Table 1 shows the Quick Spec of the Cisco 2960X-24PS-L switch.

Product Code	WS-C2960X-24PS-L
Enclosure Type	Rack-mountable – 1U
Feature Set	LAN Base
Uplink Interfaces	4 x 1G SFP
Ports	24 x Ethernet 10/100/1000 Gigabit ports
Available PoE Power	370W
Maximum stacking number	8
Stack bandwidth	80G
Forwarding Bandwidth	108Gbps
Switching Bandwidth	216Gbps
RAM	512MB
Flash Memory	128MB
Dimensions	44.5 cm x 36.8 cm x 4.5 cm
Package Weight	10.65 Kg

Product Details

Figure 2 shows the front panel of the Cisco 2960X-24PS-L switch.

WS-C2960X-24PS-L Front Panel

Note:

①	Ethernet management port	⑤	USB Type A ports
②	Mode button	⑥	RJ-45 console port
③	Switch LEDs	⑦	24*10/100/1000 ports
④	USB mini-Type B (console) port	⑧	Uplink ports

Figure 3 shows the back panel of the Cisco 2960X-24PS-L switch.

WS-C2960X-24PS-L Back Panel

Note:

①	FlexStack-Plus module slot and cover	③	RPS Connector
②	Fan Exhaust	④	AC power connector

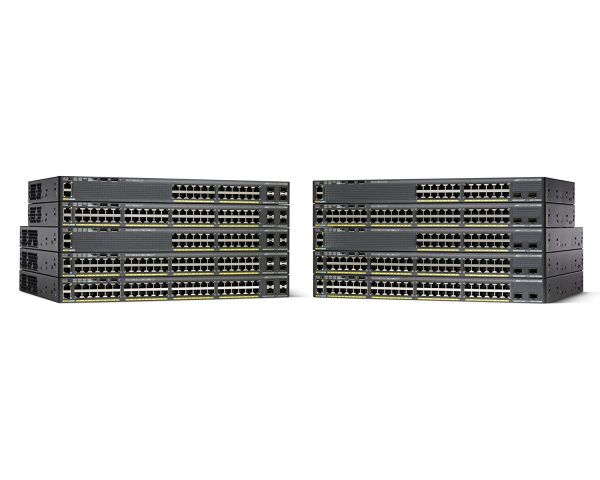

Figure 4 shows the stackable capacity.

This C2960X switch delivers stackable capacity that supports up to 8 switches stacking with same 2960-X LAN base series. It also can stack up to 4 switches stacking when mixed with 2960-S LAN base series switches.

Stackable Switches

The Accessories

Table 2 shows some accessories of the WS-C2960X-24PS-L.

Models	Description
C2960X-STACK	Catalyst 2960-X FlexStack Plus Stacking Module
CAB-STK-E-0.5M	Cisco FlexStack Stacking Cables
GLC-LH-SM	GE SFP, LC connector LX/LH transceiver
GLC-SX-MMD	1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
CAB-CONSOLE-RJ45	Console Cable 6ft with RJ45 and DB9F
CAB-CONSOLE-USB	Console Cable 6 ft with USB Type A and mini-B

Compare to Similar Items

Table 3 shows the comparison of similar items.

Models	WS-C2960X-24TS-L	WS-C2960X-24PS-L
Ports	24 x Ethernet 10/100/1000 Gigabit ports	24 x Ethernet 10/100/1000 Gigabit ports
Uplinks	4 x 1G SFP	4 x 1G SFP
Feature Set	LAN Base	LAN Base
FlexStack-Plus Stacking	Optional	Optional
Available PoE Power	N/A	370W

Cisco Catalyst 2960X-24PS-L – switch – 24 ports – managed – desktop, rack-mountable

Part Number: WS-C2960X-24PS-L

GENERAL

Device Type

Switch – 24 ports – managed – stackable
Subtype

Gigabit Ethernet
Ports

24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)

PoE+
PoE Budget

370
Capacity

Virtual interfaces (VLANs): 1023
Jumbo Frame Support

9216 bytes
Max Units In A Stack

8
Authentication Method

Kerberos, RADIUS, Secure Shell (SSH), TACACS+
RAM

512 MB
Flash Memory

128 MB
Enclosure Type

Desktop, rack-mountable 1U
Max Units In A Stack

8
Authentication Method

Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Power Over Ethernet (PoE)

PoE+
Status Indicators

Port status, link activity, port transmission speed, port duplex mode, system, RPS (Redundant Power Supply), PoE
Jumbo Frame Support

9216 bytes
PoE Budget

370 W
Manufacturer

Cisco

POWER DEVICE

Nominal Voltage

AC 120/230 V
Frequency Required

50/60 Hz
Type

internal power supply

NETWORKING

Subcategory

network hubs and switches
Subtype

Gigabit Ethernet
Form Factor

desktop, rack-mountable
Type

switch
Stackable

stackable
Max Units In A Stack

8
Features

ARP support, Access Control List (ACL) support, IGMP snooping, IPv4 support, IPv6 support, Intrusion Detection System (IDS), Jumbo Frames support, Link Aggregation Control Protocol (LACP), MAC Address Notification, MLD snooping, Multicast VLAN Registration (MVR), Multiple Spanning Tree Protocol (MSTP) support, Cisco EnergyWise technology, NetFlow, PoE+, Port Aggregation Protocol (PAgP) support, RADIUS support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), SSH support, Shaped Round Robin (SRR), Trivial File Transfer Protocol (TFTP) support, Cisco FlexStack Plus, Uni-Directional Link Detection (UDLD), Unicast Reverse Path Forwarding (URPF), VLAN support, auto-negotiation, auto-uplink (auto MDI/MDI-X), layer 2 switching, power over Ethernet (PoE), Class of Service (CoS), DHCP support, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Hot Standby Router Protocol (HSRP) support
Compliant Standards

IEEE 802.1AX, IEEE 802.1D, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3
Jumbo Frame Support

9216 bytes
Ports Qty

24
Manageable

Yes
PoE Budget

370
Remote Management Protocol

CLI, HTTP, TFTP, Telnet, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH
Power Over Ethernet (PoE)

PoE+

CAMERA

Installed Size

128 MB

POWER

Features

Redundant Power System (RPS) connector
Power Redundancy

optional
Features

Redundant Power System (RPS) connector

INTERFACE PROVIDED

Interface

Ethernet 10Base-T/100Base-TX, console
Qty

1, 2, 24, 4
Connector Type

RJ-45, SFP (mini-GBIC), mini-USB Type B
PoE Power

30
Comments

PoE+, management, uplink

MISCELLANEOUS

MTBF

324280 sec
Height (Rack Units)

1 m
Compliant Standards

AS/NZS 60950-1, BSMI CNS 13438 Class A, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, RoHS, UL 60950-1 Second Edition, VCCI Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, Directive 2011/65/EU, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3

PROCESSOR

Clock Speed

600 MHz

RAM

Installed Size

512 MB

ENVIRONMENTAL PARAMETERS

Humidity Range Storage

10 – 95% (non-condensing)
Min Storage Temperature

-13 °F
Max Storage Temperature

158 °F
Min Operating Temperature

23 °F
Min Operating Temperature

23 °F
Max Operating Temperature

113 °F
Humidity Range Operating

10 – 95% (non-condensing)

HEADER

Brand

Cisco
Product Line

Cisco Catalyst
Model

2960X-24PS-L
Packaged Quantity

1
Compatibility

PC

SOFTWARE

Type

Cisco IOS LAN Base

EXPANSION SLOTS

Type

Stacking Module slot
Total Qty

1
Free Qty

1

PORTS

Type

10/100/1000 (PoE+)
Qty

24

PORTS (2ND)

Type

Gigabit SFP
Qty

4

PERFORMANCE

Type

forwarding performance (64-byte packet size), switching capacity
Value

216 Gbps, 71.4 Mpps

CAPACITY

Type

virtual interfaces (VLANs)
Value

1023

DIMENSIONS & WEIGHT

Width

17.5 in
Depth

14.5 in
Height

1.8 in
Weight

12.79 lbs

SERVICE & SUPPORT

Type

limited lifetime warranty

SERVICE & SUPPORT DETAILS

Type

limited warranty, technical support
Service Included

advance parts replacement, consulting
Full Contract Period

90 days, lifetime
Response Time

next business day

GENERAL

Manufacturer

Cisco
