Hikvision DS-2CD2022WD-I 2MP WDR Mini Bullet Network Camera
Features
- Up to 2 megapixel high resolution
- Full HD1080p video
- Dual stream
- 4mm/6mm fixed lens
- 120dB Wide Dynamic Range
- 3D Digital Noise Reduction
- Backlight Compensation
- DC12V & PoE
- Support H.264+
- Up to 30m IR range
- 3-axis adjustment
- IP67 weather-proof protection
- Metallic housing & bracket

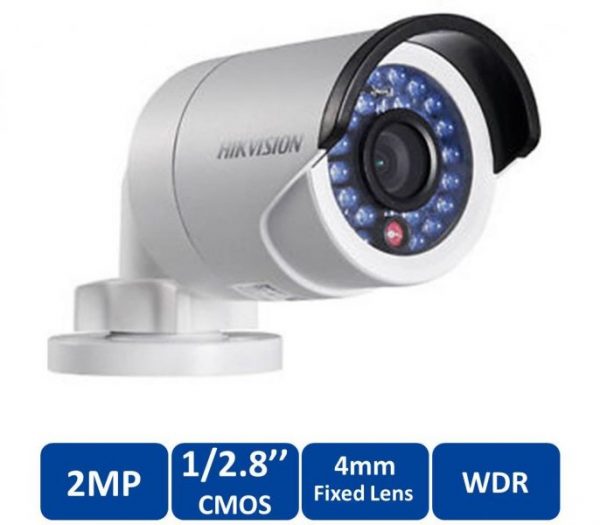

HIKVISION DS-2CD2022WD-I 2MP Mini Bullet Network IP Camera
The 2MP Outdoor Mini Bullet Camera from Hikvision features a 1/3″ progressive-scan CMOS sensor for up to 1920 x 1080 resolution at 30 fps. Equipped with a 4mm fixed lens, the camera can capture an 85° horizontal field of view for a wide coverage area. Additionally, the camera’s lens is surrounded by IR LEDs, providing up to 98′ of night vision in complete darkness. Image enhancements such as WDR, backlight compensation, and 3D DNR allow you to capture clear images in ambient light for use in a variety of environments. You can easily pan, tilt, and rotate the camera during installation, so that you can choose a specific area you would like to view, and PoE technology allows you to run just one wire for both data and power, for a simple and easy setup. This device is ONVIF-compliant for compatibility with a wide range of surveillance devices, and it is IP66-rated for weatherproof protection.
- 1/3″ progressive-scan CMOS sensor for up to 1920 x 1080 video resolution
- Dual video streaming for maximizing bandwidth usage
- 4mm fixed focal lens provides a 85° horizontal field of view
- Wide dynamic range allows you to capture clear images in ambient lighting
- 3D DNR effectively filters noise from the image, even in low-light scenarios
- Backlight Compensation and saturation, brightness, contrast, and sharpness image settings
- IR LEDs provide up to 98.4′ of night vision for use at all times
- 3-axis adjustment for choosing your desired view area during installation
- Saturation, brightness, contrast, and sharpness image settings
- Motion detection, tampering alarm, network disconnect, and storage exception alarm triggers
- Security measures including one-key rest, flash-prevention, and password protection
- ONVIF-compliant for compatibility with a wide range of surveillance devices
- IP66 weather-proof housing protects the camera from inclement weather for use outdoors
- Metal housing and mounting bracket for strength and durability
- Mobile Monitoring via EZVIZ P2P or iVMS-4500
- Can be powered via 12 VDC or standard PoE for convenience
| Technical Specifications | |
| Camera | |
| Image Sensor: | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination: | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter time: | 1/3 s to 1/100,000 s |
| Lens: | 4mm, 6mm @ F2.0, Angle of view: 90°(4mm) , 53.9°(6mm) |
| Lens Mount: | M12 |
| Day& Night: | IR cut filter with auto switch |
| Wide Dynamic Range: | 120 dB |
| Digital noise reduction: | 3D DNR |
| Compression Standard | |
| Video Compression: | H.264/MJPEG/H.264+ |
| H.264 code profile: | Main Profile |
| Video bit rate: | 32Kbps~16Mbps |
| Dual Stream: | Yes |
| Image | |
| Max. Image Resolution: | 1920 x 1080 |
| Frame Rate: | 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) |
| 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) | |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| BLC: | Yes, zone configurable |
| ROI: | Support |
| Network | |
| Network Storage: | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger: | Face Detection,Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI |
| Interface | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface |
| General | |
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption: | Max. 5W |
| Weather Proof: | IP67 |
| IR Range: | Up to 30m |
| Dimensions: | 70×154.2×60.5 mm (2.8” × 6.2” × 2.4”) |
| Weight: | 500g (1.1lbs) |
