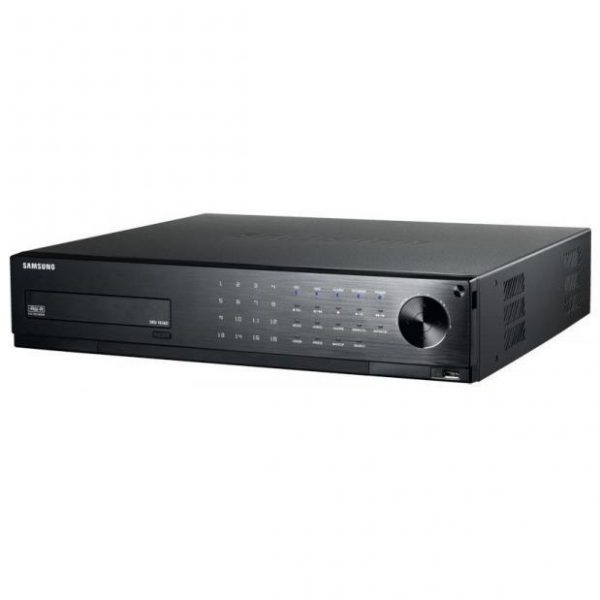

Samsung SRD-1656D-1T Digital Video Recorder
Key Features:
-
- 16CH CIF real-time DVR – Up to 480(N) / 400(P)fps recording rate
- Easy user interface, common across all Samsung DVRs – GUI / Search / Back up / Set-up
Set independently for each channel – REC / Quality / Resolution
- Privacy mask support for each channel (4ea)
- Convenient with strong network monitoring – CMS (SSM, SmartViewer, Net-I), Web viewer, Smart phones (iPOLiS mobile)
- Accurate still image (De-Interlace support each channel)
- VGA / HDMI for Full-HD (1080p) resolution video out
- Max. 4 internal HDDs
- Digital video spot (2ea), USB (2ports) back up
- Up to 16CH audio inputs / 1CH audio output
- Enhanced Network Bandwidth up to 32Mbps
- Accurate still image (De-Interlace support each channel)
Samsung SRD–1656D-1TB 16CH 4CIF Real-time H.264 Digital Video Recorder
SRD-1656D is a digital, 16-channel video recorder with ultra-high-resolution recording – 1280H – allowing effective use of the advantages of analog cameras with horizontal resolutions> 900TVL. Registration in the highest resolution can take place with a total speed of up to 100 frames / s from all cameras. Registry archive can consist of up to 4 internal hard drives (1TB disk in a set) and two disk arrays SVS-5R / E .
SRD-1656D has 16 audio inputs, through-going video outputs, HDMI / VGA video output with 1920×1080 resolution, two spot outputs (including one with a screen division – up to 4×4) and supports PTZ camera control and a stationary camera menu via coaxial cable ( CCVC and Pelco-Coax protocols).
An additional feature rarely found in competitive recorders is the detection of camera image sabotage (covering, changing the field of view, sudden loss of focus). The recorder can work efficiently on the network because it can generate streams of video / audio data from cameras at 100fps / s@4CIF (6 fps per camera) and total bandwidth up to 32Mbps.
SRD-1656D has a Polish-language user interface operated by a mouse and free software for operating via a computer network (Smart Viewer, SSM, IE browser) and a preview on mobile devices (iPolis Mobile).
Product features:
- Analogue inputs: 16 BNC
- Vision compression: H.264
- Supported resolutions: 1280 x 576 (1280H), 704×576 (4CIF), 704×288 (2CIF), 352×288 (CIF)
- Speed of recording on the camera: 6 fps
- Audio inputs: 16 items
Specification:
| Analog inputs | 16 BNC |
| Transmit outputs through vision | 16 BNC |
| Vision compression | H.264 |
| Supported resolutions | 1280 x 576 (1280H), 704×576 (4CIF), 704×288 (2CIF), 352×288 (CIF) |
| Speed of recording on the camera | 6 fps (100 fps / total), for each resolution |
| Generation of an auxiliary video stream | No |
| Audio inputs | 16 items (4xRCA + 12 in DB25 connector) |
| Audio compression | G.711 (8kHz) |
| Vision outputs | VGA / HDMI |
| Spot outputs | 2 BNC (I – broken down, II – full screen, both OSD) |
| Audio output | 1 RCA |
| Number of HDDs supported | 4 pcs (3.5 ” to 4TB each), 1TB disk included |
| DVD recorder | Yes |
| ESATA interface | Yes (2 pcs for SVS-5R, SVS-5E) |
| RS-485 | 1 (for analog PTZ cameras: Pelco-D / P, Samsung T / E, Diamond, VCL TP and others) |
| RS485 control | Yes (SPC-6000, SPC-2010, TB-KB1) |
| Alarm inputs | 16 items (NC / NO) |
| Alarm outputs | 4 pcs (relay, 250 V AC / 0.25 A) |
| Registration mode | Schedule (continuous, motion or alarms, mixed – compaction), manual |
| Pre / post alarm | 30s / 6h |
| Other | Detection of camera image sabotage, control of Samsung cameras on a coaxial cable, NTP synchronization, e-mail notification, web server |
| Ethernet interface | 1 item (10/100 / 1000Mbps) |
| The number of remote users | 10 (3 for playback of recordings), (total output band 32Mbps) |
| USB interface | 2 items (mouse, pen-drive) |
| Power | 230 V AC |
| Power consumption | 60 W (with one disk) |
| Working temperature | 0..40 ° C |
| Relative humidity | 20..85% |
| dimensions | 440x385x88 mm (2U) |
| Weight | 6.6 kg |
| Accessories included | USB mouse, rack mounts, remote control |
