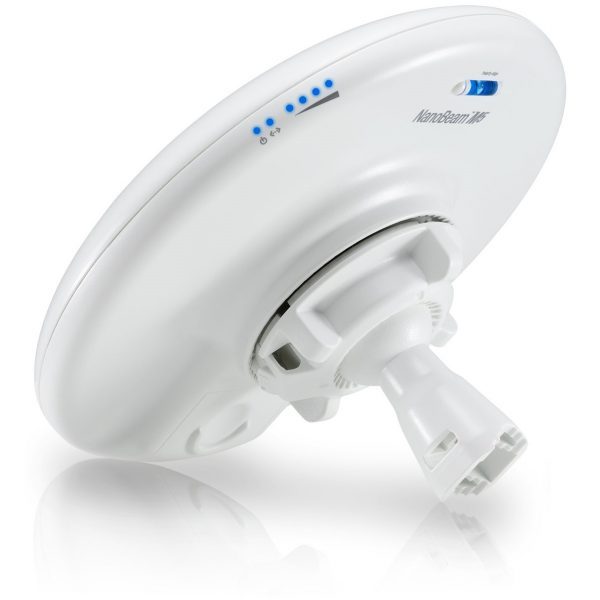

Ubiquiti Nanobeam M5 NBE-M5-19 Outdoor 5GHz 19dBi Antenna airMAX Bridge
Features
- 2-UNITS Ubiquiti NanoBeam M5 19dbi high-performance airMAX bridge 5Ghz 150+ Mbps 15+ km, uniform beamwidth maximizes noise immunity, innovative mechanical design, high-speed processor for superior performance.
- Ubiquiti NBE-M5-19 High-Performance airMAX Bridge Incorporating innovative industrial design with advanced technology, the NanoBeam M5 19dbi is the latest generation of Ubiquiti Networks airMAX CPE for customer locations.
- Plug and Play Installation, the NanoBeam M5 19 dBi mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
- Incredible Antenna Beam Performance The form factor of the NanoBeam NBE M5 19 features the highest gain for its size. The NanoBeamM5 19dbi excellent beam directivity provides the best performance in high-noise environments.
- Ubiquiti airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Ubiquiti Nanobeam M5 NBE-M5-19 Outdoor 5GHz 19dBi Antenna airMAX Bridge, 400mW 802.11a/b/g/n, Intregrated Antenna Radio with PoE.
The NBE-M5-19 5 GHz 19dBi High-Performance airMAX Bridge from Ubiquiti Networks directs RF energy in a tighter beamwidth. NanoBeam maximizes noise immunity by its uniform bandwidth. With focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is important in an area crowded with other RF signals of the same or similar frequency.
Starting with the first-generation NanoBridge, Ubiquiti Networks pioneered the all-in-one design for an airMAX product functioning as a CPE (Customer Premises Equipment). Now Ubiquiti Networks launches the latest generation of CPE, the NanoBeam.
- The new NanoBeam M has a compact, all-in-one design with uniform beam width, efficient footprint and a faster processor. The NanoBeam can be easily mounted in a variety of ways thanks to the innovative mechanical design.
- The NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
- The Ubiquiti Research and Development team combined the radio and antenna to create a more efficient and compact CPE. The NanoBeam gets maximum gain out of the smallest footprint.
- Providing increased performance from its faster processor and innovative mechanical design at a low cost, the NanoBeam is extremely versatile and cost-effective to deploy.
- Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
- This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Incredible Antenna “Beam” Performance
The form factor of the NanoBeam® features the highest gain for its size. The NanoBeam’s excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Wall Mount Kit
Use the optional NBE-WMK Wall Mount Kit for enhanced stability when mounting the NanoBeam on a wall.
The NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.Integrated Design
The NanoBeam models are available in two form factors:
• All-in-One Design: The Ubiquiti Research and Development team combined the radio and antenna to create a more efficient and compact CPE. The NanoBeam gets maximum gain out of the smallest footprint.
• Dish Reflector Design: Ubiquiti’s InnerFeed™ technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.Providing increased performance from its faster processor and innovative mechanical design at a low cost, the NanoBeam is extremely versatile and cost‑effective to deploy.Utilize airMAX Technology
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class. Intelligent QoS Priority is given to voice/video for seamless streaming.
Scalability High capacity and scalability.
Long Distance Capable of high‑speed, carrier-class links.
Innovative Mechanical Design
• All-in-one design: The NanoBeam provides both the radio and antenna in the smallest possible footprint.
• Quick and easy installation: No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting.
• Convenient alignment: The NanoBeam pivots on its ball joint for easy aiming.
Compact Form Factor
• Efficient footprint: The radio and antenna are combined into a single body that takes up minimal space.
• Versatile mounting: The NanoBeam can be mounted in almost any position needed for line of sight.
• Aesthetics: The NanoBeam is small enough to blend discreetly into the background at a customer’s location
Product Features
• Uniform Beamwidth Improves Noise Immunity
• More Efficient Footprint
• Faster Processor Increases Performance
• Easy Assembly and Installation
Product Specifications
• Processor: Atheros MIPS 74KC, 560 MHz
• Memory: 64 MB DDR2, 8 MB Flash
• (1) 10/100 Ethernet Port
• Wireless Approvals: FCC, IC, CE
• RoHS Compliance: Yes
• Power Supply: 24V, 0.5A PoE
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Max. Power Consumption: 8W
• Operating Frequency: 5150-5250 MHz*, 5250-5350 Mhz*, 5470-5725 Mhz*, 5725-5850 Mhz* ( *Some frequencies may require activation; visit: here )
• Gain: 19dBi
• Max. VSWR: 1.5:1
• Output Power: 26 dBm
• Wind Loading: 10.2 lbf @ 125 mph
• Wind Survivability: 125 mph
• LEDs: (1) Power, (1) LAN, (4) WLAN
• Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
• Channel Sizes: 5/8/10/20/30/40 MHz
• Polarization: Dual Linear
• Enclosure: Outdoor UV Stabilized Plastic
• Mounting: Pole-Mount (Kit Included), Wall-Mount
• ESD/EMP Protection: Air: ±24 kV, Contact:± 24 kV
• Operating Temperature: -40 to 70° C
• Operating Humidity: 5 to 95% Non-Condensing
• Shock & Vibration: ETSI300-019-1.4
Product Includes
• (1) airMax NanoBeam M5 5GHz 19dBi CPE
• (1) 24V PoE Injector
• (1) Mounting Hardware
PRODUCT VIDEO
SPECIFICATION
| Processor Specs | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2, 8 MB Flash |
| Operating Frequency | 5150 – 5875 MHz Worldwide |
| Interfaces | (1) 10/100 Ethernet Port |
| Gain | 19 dBi |
| Polarization | Dual Linear |
| Max. Power Consumption | 8W |
| Dimensions | 189 x 189 x 125 mm (7.44 x 7.44 x 4.92″) |
| Weight | 0.530 kg (1.17 lb) |
| Power Supply (PoE) | 24V, 0.5A PoE |
| Mounting | Pole-Mount (Kit Included), Wall-Mount |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
Model Comparison
 NBE-M2-13
|
 NBE-M5-16
|
 NBE-M5-19
|
 NBE-5AC-19
|
|
|---|---|---|---|---|
| Frequency | 2.4 GHz | 5 GHz | 5 GHz | 5 GHz |
| Throughput | 150+ Mbps | 150+ Mbps | 150+ Mbps | 450+ Mbps |
| Range | 15+ km | 10+ km | 15+ km | 15+ km |
