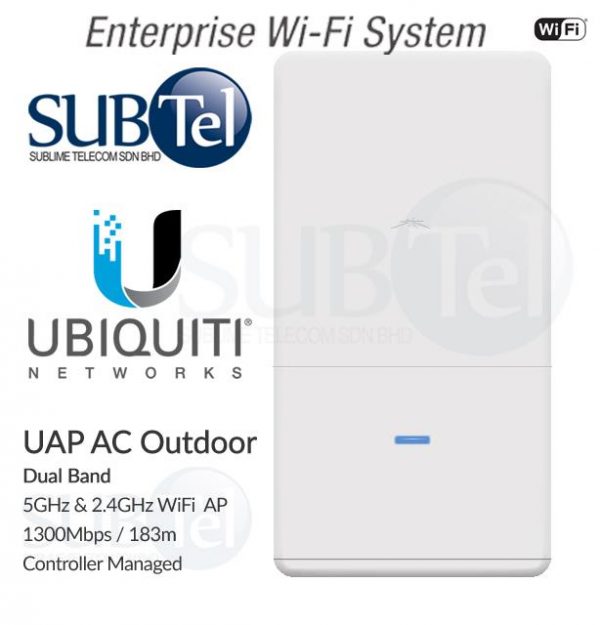

Ubiquiti Networks UniFi UAP-AC Outdoor Enterprise WiFi System
PRODUCT FEATURES :
- Brand: Ubiquity
- Type: Wireless
- Color: White
- Networking Interface: (2) 10/100/1000 Ethernet Port
- Power Method: 802.3af/803.2at Supported
- Antennas: 2 Integrated 2.4 & 5 dBi
- Wi-Fi Standards: 802.11 a/b/g/n/ac
- Concurrent Clients: 200+
- 2.4 GHz Speed: 450 Mbps
- 5GHz Speed: 1300 Mbps
- PoE Mode: 802.3af PoE
- 802.3at PoE+
- Range: 183 m (600 ft.)
- Details: Each UniFi AP-Outdoor model can be seamlessly mounted on any wall or pole
- The LED indicator simplifies deployment and configuration
Ubiquiti UAP-AC Outdoor Wireless UniFi Access Point Outdoor 2.4 and 5GHz (3X3 MiMO), 450 Mbps, PoE Power over Ethernet, UBNT Unifi AP, Unifi AP Outdoor AC
Outdoor 802.11ac Access Point
Featuring Wi-Fi 802.11ac and a weather-resistant case for outdoor installation, the UniFi® AP-AC Outdoor is a Ubiquiti Networks® Access Point (AP), ideal for deployment of high-performance wireless networks.
Sleek Industrial Design Of The Fastest Outdoor AP
Breakthrough Hardware Performance
-
Powerful 3×3 MIMO
The UniFi® AP-AC Outdoor supports 3×3 MIMO technology in the 5 and 2.4 GHz radio bands.
-
Built To Last Outdoors
The durable, weatherproof case withstands outdoor conditions, including wind, rain and snow.
-
Simultaneous Dual-Band Wi-Fi
The UniFi® AP-AC Outdoor supports simultaneous operation in the 5 and 2.4 GHz radio bands.
-
Gigabit Ethernet & PoE+
Capable of gigabit speeds, the UniFi® AP-AC Outdoor can be powered by a PoE+, 802.3at compliant switch or the included 48V PoE Adapter.
-
Scalability For Thousands
With its software-based capabilities, the UniFi® virtual control plane allows for unlimited scalability under one centralized controller.
-
No Software Fees
The UniFi® Controller software is bundled with the UniFi AP hardware at no extra charge — no separate software, licensing or support fee.
Scalable Enterprise Wi-Fi Management
Advanced Software Features
Intuitive and Robust Configuration, Control and Monitoring
Instantly provision and configure thousands of UniFi® APs. Quickly manage system traffic.
Custom Maps and Google Maps
Upload custom map images or use Google Maps for a visual representation of your wireless network.
WLAN Groups
Take advantage of WLAN groups for flexible configuration of large deployments and enable wireless connection between APs to extend range.
One UniFied Network with Zero-Handoff Roaming
Create one large wireless network across multiple APs so users can roam and seamlessly maintain their connection as they switch to the nearest AP.
Features
- The fastest outdoor model supports 802.11ac and speeds of up to 1300 Mbps in the 5 GHz radio band and up to 450 Mbps in the 2.4 GHz radio band. The UAP-AC Outdoor offers simultaneous dual-band operation with 3×3 MIMO technology for each band. It has a range of up to 122 m (400 ft) and two Gigabit Ethernet ports.
- UniFi AP Outdoor AC unit capable of 1750Mbps speeds and links up to 180m (600 ft). Sleek wall-moutable and pole-mountable design (all accessories included). Included Power over Ethernet capability for single cable wiring (supplies both power and data). Virtual UniFi Controller software included (no hardware controller required). Highly intuitive setup and configuration with many powerful features (no special training required).
- Ubiquiti’s fastest outdoor WiFi access point supports 802.11ac and speeds of up to 1300 Mbps in the 5 GHz radio band and up to 450 Mbps in the 2.4 GHz radio band. The UAP-AC Outdoor offers simultaneous dual-band operation with 3×3 MIMO technology for each band. It has a range of up to 183 m (600 ft) and two Gigabit Ethernet ports.
- The UniFi Enterprise WiFi System is a scalable enterprise access point solution designed to be easily deployed and managed.
- The UniFi Enterprise WiFi System includes the UniFi Controller software which can be easily accessed through any standard web browser. The software installs on any Windows, Mac, or Linux PC and can be run on-premise, in your private cloud or in a public cloud service. Using the UniFi Controller software, an Enterprise WiFi network can be quickly configured and administered without any special training. Real-time status, automatic UAP device detection, map loading, guest/hot-spot management, mobile roaming and advanced security options are all seamlessly integrated.
- The UniFi controller software is included with each access point. There are no additional software license or subscription costs required to use the UniFi controller.
| Advanced Traffic Management | |
|---|---|
| VLAN | 802.1Q |
| Advanced QoS | Per user rate limiting |
| Guest Traffic Isolation | Supported |
| WMM (Wi-Fi Multimedia) | Voice, video, best effort, and background |
| Concurrent Clients | 200+ |
| Physical Characteristics | |
|---|---|
| Dimensions | 13.39 x 7.09 x 2.56″ / 340 x 180 x 65 mm |
| Weight | Without Mounting Kit: 3.42 lb / 1.55 kg With Mounting Kit: 4.41 lb / 2.00 kg |
| Packaging Info | |
|---|---|
| Package Weight | 6.55 lb |
| Box Dimensions (LxWxH) | 16.0 x 8.8 x 4.3″ |
