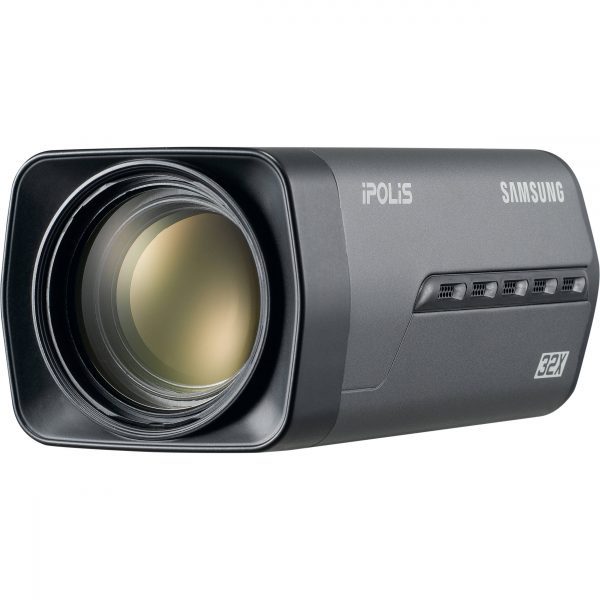

Samsung SNZ-6320 2 MP Full HD 32x Zoom Network Camera

Rating

Availability: In stock

Key Features

Max. 2M (1920 x 1080) resolution
16 : 9 Full HD (1080p) resolution support
4.42 ~ 142.6mm (32x) optical zoom, 16x digital zoom
H.264, MJPEG dual codec, Multiple streaming
Day & Night (ICR), WDR (120dB)
Intelligent video analytics
PoE, SD/SDHC/SDXC memory slot, Bi-directional audio support

Compare

Samsung Techwin Snz-6320 2 Mp Full Hd 32x Zoom Network Security Camera

The SNZ-6320 2 MP Full HD 32x Zoom Network Camera from Samsung incorporates a 1/2.8″ CMOS sensor that captures clear images in Full HD resolution of up to 1920 x 1080. The 32x optical zoom lets you close in on objects without losing detail. The camera supports H.264, MJPEG dual codec, multiple streaming. The Intelligent Video Analytics supported are Tampering, Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection.

Hanwha Techwin SNZ-6320 Overview

The SNZ-6320 2 MP Full HD 32x Zoom Network Camera from Samsung incorporates a 1/2.8″ CMOS sensor that captures clear images in Full HD resolution of up to 1920 x 1080. The 32x optical zoom lets you close in on objects without losing detail. The camera supports H.264, MJPEG dual codec, multiple streaming. The Intelligent Video Analytics supported are Tampering, Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection.

Maximum 2 MP (1920 x 1080) resolution

16:9 Full HD (1080p) resolution support

4.44 to 142.6mm, 32x optical zoom, 16x digital zoom

H.264, MJPEG dual codec, multiple streaming

Day & night (ICR), WDR (120 dB)

Intelligent video analytics

PoE, SD/SDHC/SDXC memory slot, bi-directional audio support

Video

Hanwha Techwin SNZ-6320 Specs

Video
Imaging Device	1/2.8″ 2.38 MP CMOS
Total Pixels (H x V)	1952 x 1116, 2.18 MP
Effective Pixels (H x V)	1944 x 1104, 2.14 MP
Scanning System	Progressive
Min. Illumination	Color: 0.3 lux (1/30 sec, F1.6, 50IRE), B&W: 0.03 lux (1/30 sec, F1.6, 50IRE)
S/N Ratio	50 dB
Video Output	CVBS: 1.0 Vpp / 75 Ω composite, 720 x 480 (N), 720 x 576 (P), for installation DIP connector type

Lens
Focal Length	Zoom Ratio: 32x, 4.44 to 142.6 mm
Maximum Aperture Ratio	F1.6 (Wide) / F4.4 (Tele)
Angular Field of View	H: 62.8˚ (Wide) to 2.23˚ (Tele) / V: 36.80˚ (Wide) to 1.26˚ (Tele)
Minimum Object Distance	4.92′ (1.5 m)
Focus Control	Auto / Manual / One push
Mount Type	DC auto iris lens, Board-in type

Operational
Camera Title	Off / On (Displayed up to 45 characters)
Day & Night	Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation	Off / BLC
Wide Dynamic Range	120 dB
Contrast Enhancement	SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction (DNR)	SSNRIII (2D+3D noise filter) (Off / On)
Image Stabilization	Off / On
Defog	Off / Auto / Manual
Motion Detection	Off / On (4ea 4 points polygonal zones)
Privacy Masking	Off / On (32 zones with 2 points of rectangle)
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor / Mercury
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2 to 1/12,000 sec)
Digital Zoom	16x
Flip / Mirror	Off / On
Intelligent Video Analytics	Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection

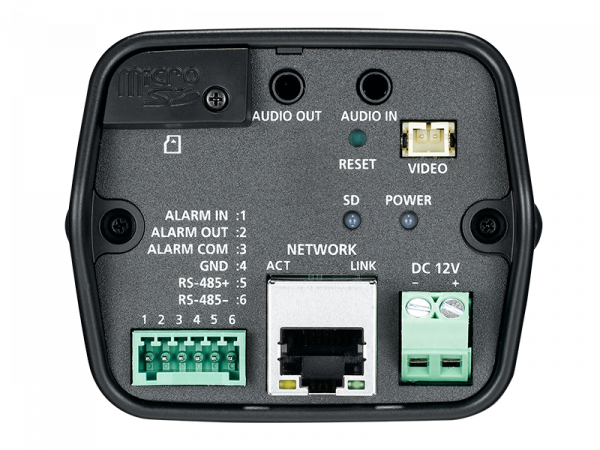

Alarm I/O	Input 1 / Output 1 (Relay)
Remote Control Interface	RS-485
RS-485 Protocol	Samsung-T/E, Pelco-P/D, Panasonic, Honeywell, AD, Vicon, Bosch, GE
Alarm Triggers	Motion detection, Tampering, Audio detection, Face detection, Video analytics, Alarm input, Network disconnection
Alarm Events	File upload via FTP and E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at Network disconnected & Event (Alarm Triggers), External output

Network
Ethernet	RJ-45 (10/100BASE-T)
Video Compression Format	H.264 (MPEG-4 part 10/AVC), MJPEG
Resolution	1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Maximum Frame Rate	H.264: Max. 60 fps at all resolutions MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Maximum 15 fps 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180: Maximum 30 fps
Smart Codec	Manual mode (Area-based: 5), Face detection mode
Video Quality Adjustment	H.264: Compression level, Target bitrate level control, MJPEG: Quality level control
Bitrate Control Method	H.264: CBR or VBR, MJPEG: VBR
Streaming Capability	Multiple streaming (Up to 10 profiles)
Audio In	Selectable (Mic in / Line in), Supply voltage: 2.5 VDC (4 mA), Input impedance: approximately 2k Ohm
Audio Out	Line out (3.5 mm stereo mini jack), Max output level: 1 VRMS
Audio Compression Format	G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz, G.726: 16, 24, 32, 40 Kb/s
Audio Communication	Bi-directional audio
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	10 users at unicast mode
Edge Storage	SD/SDHC/SDXC – motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded. NAS (Network Attached Storage)
Application Programming Interface	ONVIF profile S, SUNAPI 2.0, SVNP 1.2
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian
Web Viewer	Supported OS: Windows XP / Vista / 7 / 8 / 8.1, Mac OS X 10.7 / 10.8
Supported Browsers	Microsoft Internet Explorer (Version 8 to 11), Mozilla Firefox (Version 9 to 19), Google Chrome (Version 15 to 32), Apple Safari (Version 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7)
CMS	SmartViewer, SSM, Mobile viewer

Environmental
Operating Temperature / Humidity	+14 to +131°F (-10 to +55°C), Less than 90% RH
Storage Temperature / Humidity	-22 to +140°F (-30 to +60°C), Less than 90% RH

Electrical
Input Voltage/Current	12 VDC, PoE (IEEE802.3af class 3)
Power Consumption	Maximum 9 W (12 VDC) / Maximum 10 W (PoE)

Mechanical
Material of Construction	Metal

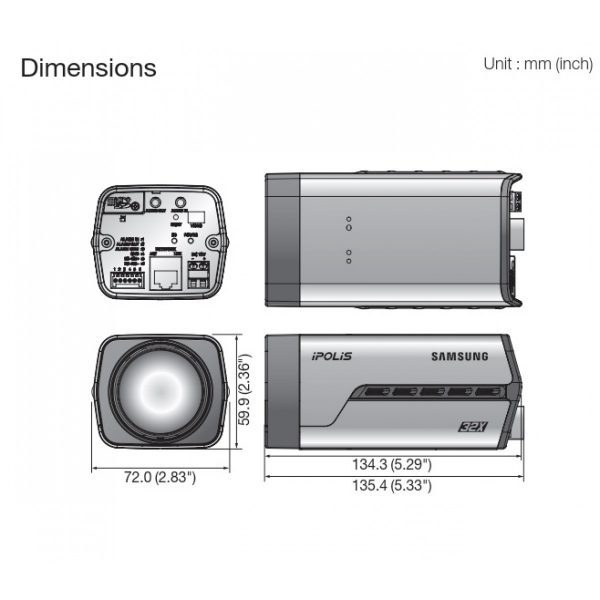

Dimensions (W x H x D)	2.83 x 2.36 x 5.33″ (72 x 59.9 x 135.4 mm)
Weight	1.19 lb (0.54 kg)

Packaging Info
Package Weight	1.65 lb
Box Dimensions (LxWxH)	8.3 x 4.8 x 4.1″
