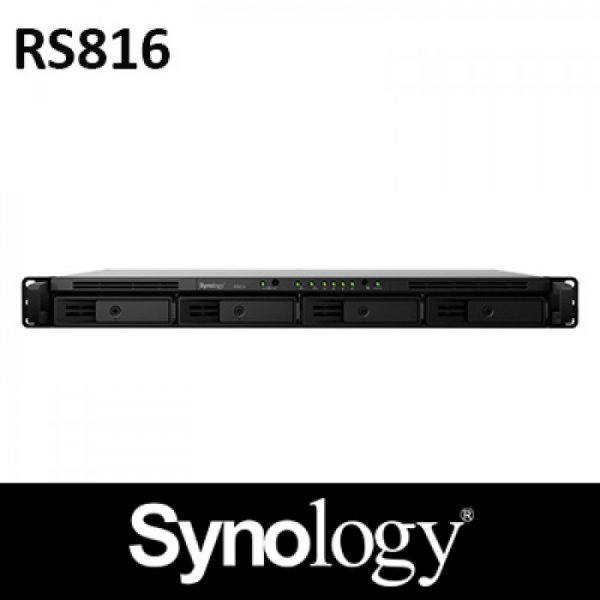

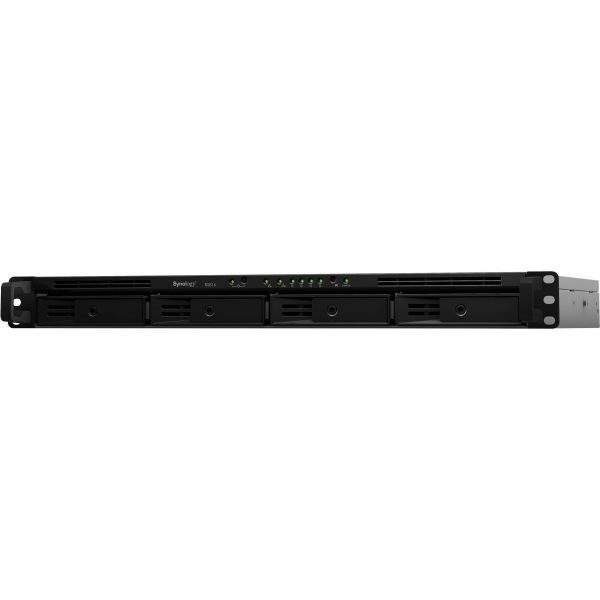

Synology RackStation RS816 4-Bay NAS Enclosure
Synology RackStation RS816 4 Bay NAS, Dual Core 1.8GHz, 1GB DDR3, 2x Gigabit LAN, 2x USB3, 1x eSATA, 1U Rackmount
The RackStation RS816 4-Bay NAS Enclosure from Synology lets you create a shared storage pool of data with a small group of networked users. This RackStation sports four bays that can accommodate your 3.5″ and 2.5″ hard drives and SSDs. To manage the data, DSM operating system, and apps, Synology has armed this NAS with a dual-core 1.8 GHz Marvell Armada 385 processor along with 1GB of DDR3 RAM. It features a 1 RU form factor and connects to your network via two Gigabit Ethernet ports. For uninterruptible services, the networking ports offer failover and link-aggregation support. Other notable connections include one eSATA port as well as two USB 3.0 ports, so you can expand the RS816’s capabilities with external storage drives, printers, and more. In addition, it lets you configure the drives in a RAID array, set up iSCSI LUNs, and encrypt the data. This NAS supports a single volume size of up to 16TB.
Synology RackStation RS816 4-Bay NAS Enclosure
Synology RS816 Specs
| Drives | |
|---|---|
| Total Raw Capacity | None |
| Type | None |
| Flash Memory | None |
| Computing | |
|---|---|
| Processor | Marvell Armada 385 88F6820 Dual-Core |
| Clock Speed | Base: 1.8GHz |
| Total Installed Memory | 1 GB DDR3 |
| Networking | |
|---|---|
| iSCSI LUN | 256 |
| iSCSI Target | 10 |
| Max Concurrent Connections | 256 |
| Max Folders | 256 |
| Max Groups | 256 |
| Max Sync Tasks | 4 |
| Max User Accounts | 2048 |
| Max Volume Number | 256 |
| Software | |
|---|---|
| File System Formats Supported | External: EXT3, EXT4, FAT, HFS+, NTFS, exFAT Internal: EXT4 |
| Electrical | |
|---|---|
| Power Consumption | 27.9 W (Typical) 12.4 W (Standby) |
| Power Source | Internal Power Supply |
| PSU Wattage | 1 x 150 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Security |
|---|
| Environmental | |
|---|---|
| Operating Temperature | 41 to 95°F / 5 to 35°C |
| Operating Humidity | 5 to 95% |
| Storage Temperature | -5 to 140°F / -20 to 60°C |
| Certifications | BSMI, CE, FCC, RoHS, as per Manufacturer |
| Physical | |
|---|---|
| Cooling | 3 x 40 mm Fans |
| Noise Level | 28.9 dBA |
| Dimensions | 1.7 x 16.9 x 11.4″ / 44.0 x 430.5 x 290.0 mm |
| Weight | 9.6 lb / 4.3 kg |
| Packaging Info | |
|---|---|
| Package Weight | 13.0 lb |
| Box Dimensions (LxWxH) | 21.0 x 16.0 x 5.5″ |
